YIC Technologies EMS4000 | Demonstrator - EMC near-field scanner board for localizing EMC problems, 150 kHz to 4 GHz (YIC1001_2105_V)

Name: EMS4000 | Demonstrator - EMC near-field scanner board for localizing EMC problems, 150 kHz to 4 GHz (YIC1001_2105_V)
Brand: YIC Technologies
SKU: YIC1001_2105_V
Price: 15762.5 EUR
Availability: InStock

Manufacturer number: YIC1001_2105_V

1 in stock. Ready to ship in 1 business day

€15,762.50

% €24,250.00 (35% saved)

plus VAT. €18,757.38 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Special offer - YIC Technologies EMS4000 | High speed, real-time EMC scanner, 150 kHz to 4 GHz.

Technical Data

Device type:	Near field scanner EMC
Special item type:	Demonstration unit

Description

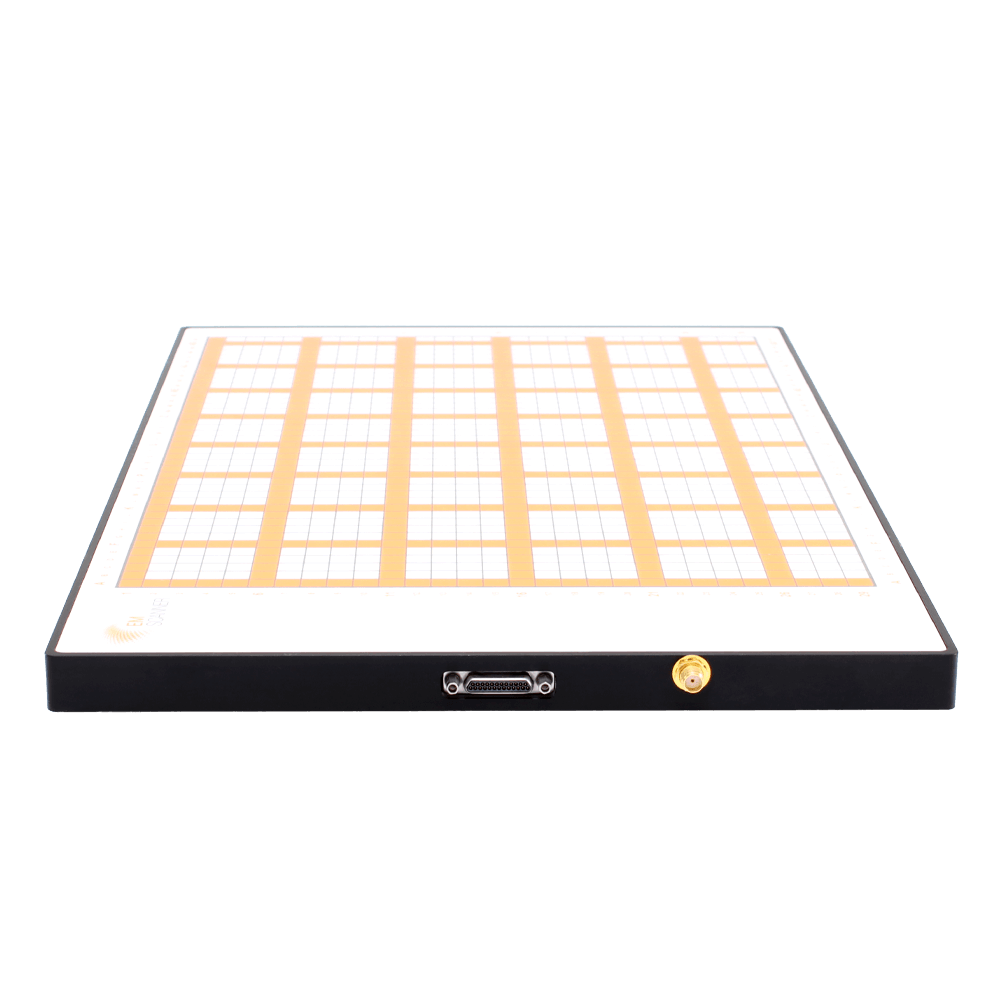

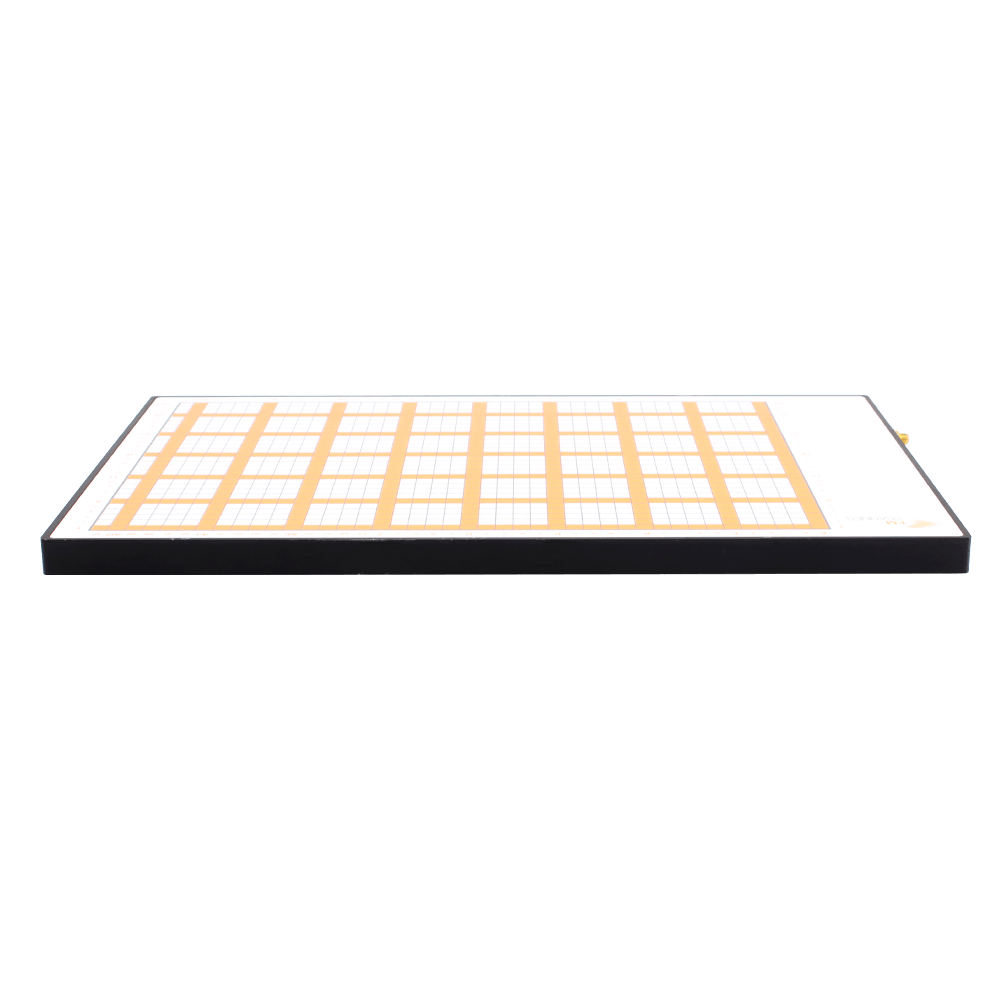

EMS4000 | Demonstrator - EMC near-field scanner board for localizing EMC problems, 150 kHz to 4 GHz (YIC1001_2105_V)

Signal emissions from high-speed PCBs (>2 GHz) pose a major challenge for design and development engineers. With the EMScanner from Y.I.C. Technologies, EMC and EMI-relevant signals in frequency ranges between 150 kHz and 4 GHz (upgradeable to 8 GHz) can be visualized in real time in order to detect signal emissions and identify their design causes at an early stage.

The EMScanner is a self-contained near-field scanning device and is used in conjunction with a spectrum analyzer. As an alternative to the spectrum analyzer, the compact EMController is available for LAN connection to a desktop PC on which the EMScanner software is running.

The EMScanner offers unique options for reliable pre- and post-EMC conformity tests. During the development process, unintended sources of interference on circuit boards can be detected to avoid unexpected EMC test results and to pass the conformity test. The EMScanner delivers reliable, reproducible test results and can identify design errors within a few seconds. Corresponding design changes, e.g. additional soldered block capacitors, and their effectiveness can be seen in real time.

Please note: Special items may show signs of use. Special items have a 1-year guarantee. Subject to prior sale. The configuration of a special item cannot be changed. The calibration of a special item may no longer be up to date. If you would like an up-to-date calibration, please contact our experts.

Give us a call, we will be happy to consult you personally:

+49 (0)7121 / 51 50 50

About the Manufacturer

YIC Technologies

YIC Technologies, based in the UK, specializes in near-field EMC scanner boards for real-time visualization of signal emissions, which can be used to visualize EMC and EMI-related signals in real time to detect signal emissions.
