YIC Technologies RFSCANNER | 2D & 3D scanner for antenna pattern measurement and diagnosis, 300 MHz - 6 GHz

Manufacturer number: RFSCANNER

YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
YIC Technologies RFSCANNER
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

YIC Technologies RFSCANNER | 2D & 3D near and far field scanner for antenna pattern measurement and diagnosis, bandwidth 300 MHz - 6 GHz.

  • Broadband Frequency Coverage: 300MHz - 6GHz
  • Measurement sensitivity: 0 dBm source power for a reasonably efficient antenna
  • Measurement accuracy: Typically +/- 1.5 dB* (700 MHz - 6 GHz)
  • Measurement repeatability: +/- 0.2 dB
  • Far field resolution: 1.8° for theta and 3.6° for phi
  • Max. radiator size: L 16 cm x W 10 cm
  • Resolution Bandwidth: Resolution Bandwidth = IF Bandwidth of 60MHz
  • Modulation Formats:
    GSM / CDMA / WCDMA / Wi-Fi / WiMAX / LTE
    Bluetooth
    RFID
    GPS
    Custom antenna
  • Connections: PC: USB // Power: 6 VDC, 3.0 A
  • Dimensions (L x W x H): 321mm x W 240mm x 70mm
  • Weight: 3.8kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.07 MB
User report
pdf | 0.95 MB
Userguide
pdf | 0.90 MB

Description

RFSCANNER | 2D & 3D scanner for antenna pattern measurement and diagnosis, 300 MHz - 6 GHz

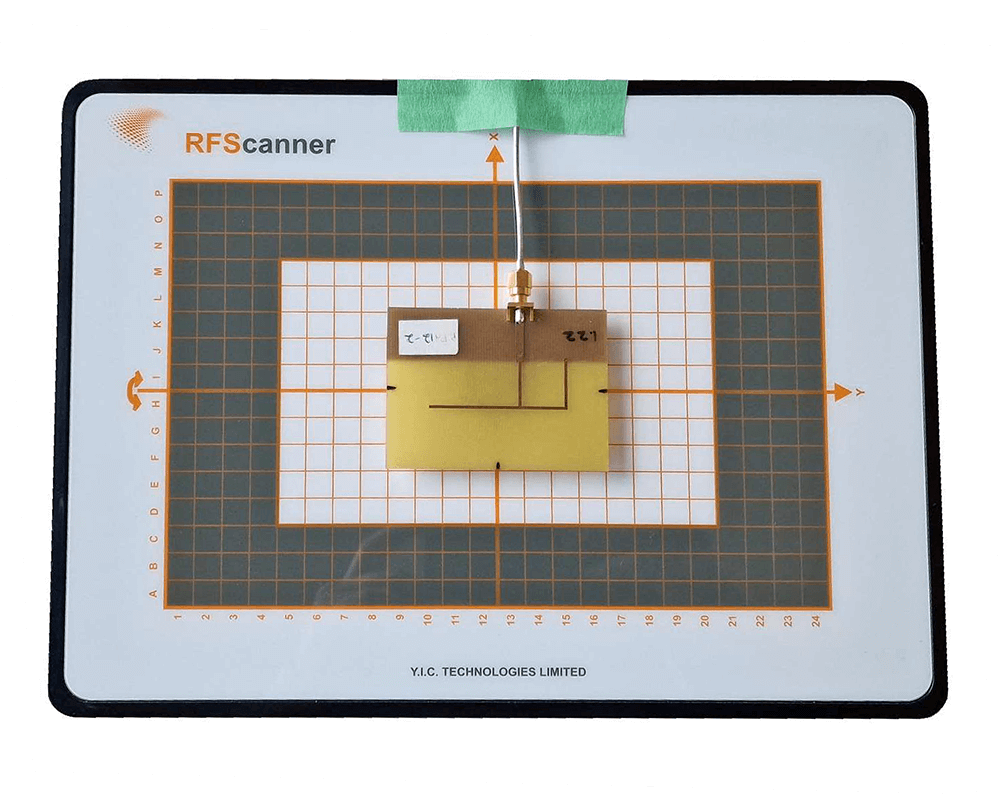

YIC Technologies' RFScanner is a compact benchtop antenna characterization scanner that helps you analyze your embedded antenna designs in real time and test multiple design iterations at any stage of the design process in seconds on the benchtop. The YIC RFScanner provides far field patterns, bisections, EIRP and TRP in seconds. Novel near-field results, including amplitude, polarity and phase, provide insight into the root causes of antenna performance problems and help troubleshoot far-field radiation patterns.

Connect the RFScanner to a network analyzer or a spectrum analyzer with tracking generator to measure an antenna's gain, efficiency and S11 over a range of frequencies.

Wireless engineers can use the RFScanner to "rapidly prototyp" and explore new designs, new materials and new shapes. Wireless engineers and designers can easily test multiple design variants and optimize even complex embedded designs in seconds at their laboratory bench, without needing time for measurements in shielded chambers. Optimize positioning and layout impact, monitor changes in final product layout or performance in real-time. Take the acceptance test in the shielded chamber to meet final certification requirements with peace of mind, knowing your design will be successful the first time.
