YIC Technologies NFP KIT | EMC probe set including 5 near-field probes, camera, holder, EMViewer 1 year license

Manufacturer number: NFP KIT

NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
NFP KIT
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

YIC Technologies NFP KIT | EMC probe set including 5 near-field probes HXY 10A02, HXY 20A02, HZ 40A02, HXY 60A01, E 00A02, camera, holder, 1-year license EMViewer software.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.11 MB
Start guide
pdf | 1.05 MB

Description

NFP KIT | EMC probe set including 5 near-field probes, camera, holder, EMViewer 1 year license

The YIC Technologies NFP KIT consists of a set of 5 field probes and is used to locate, identify, measure and characterize potential sources of electromagnetic radiation and interference emanating from traces or components of electronic circuit boards, assemblies or products.

A compatible spectrum analyzer with 50 Ω input is required.

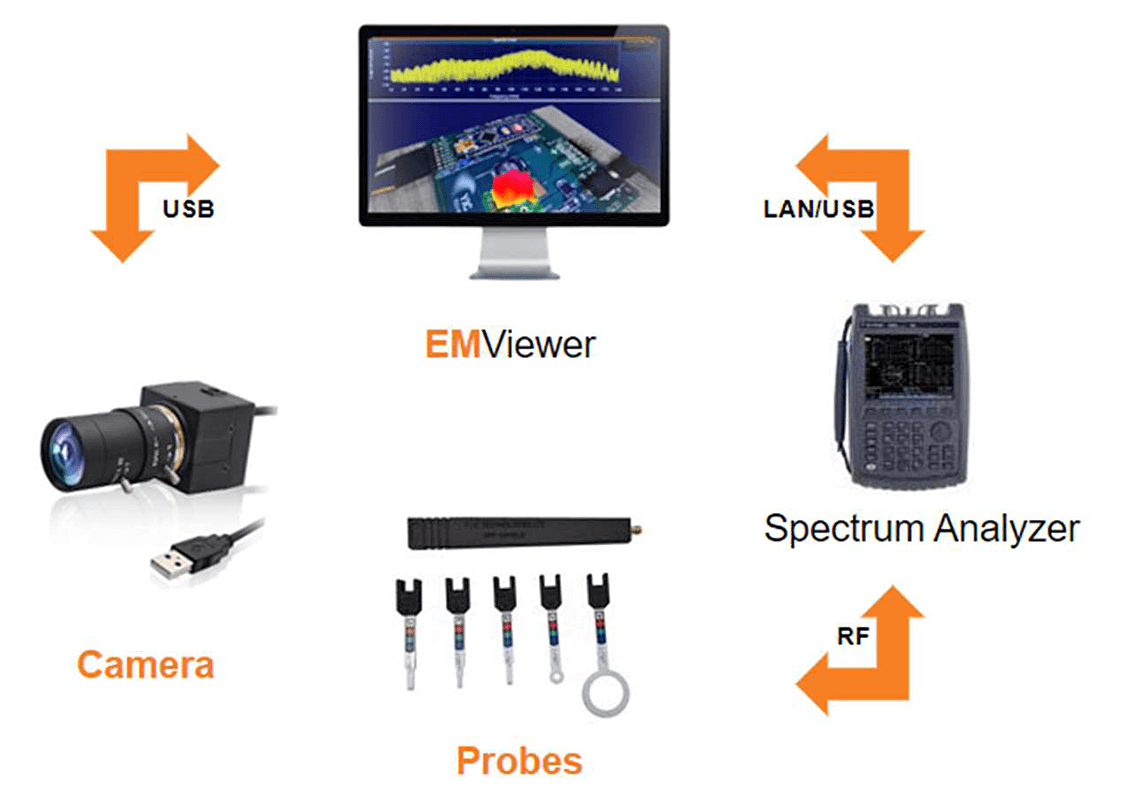

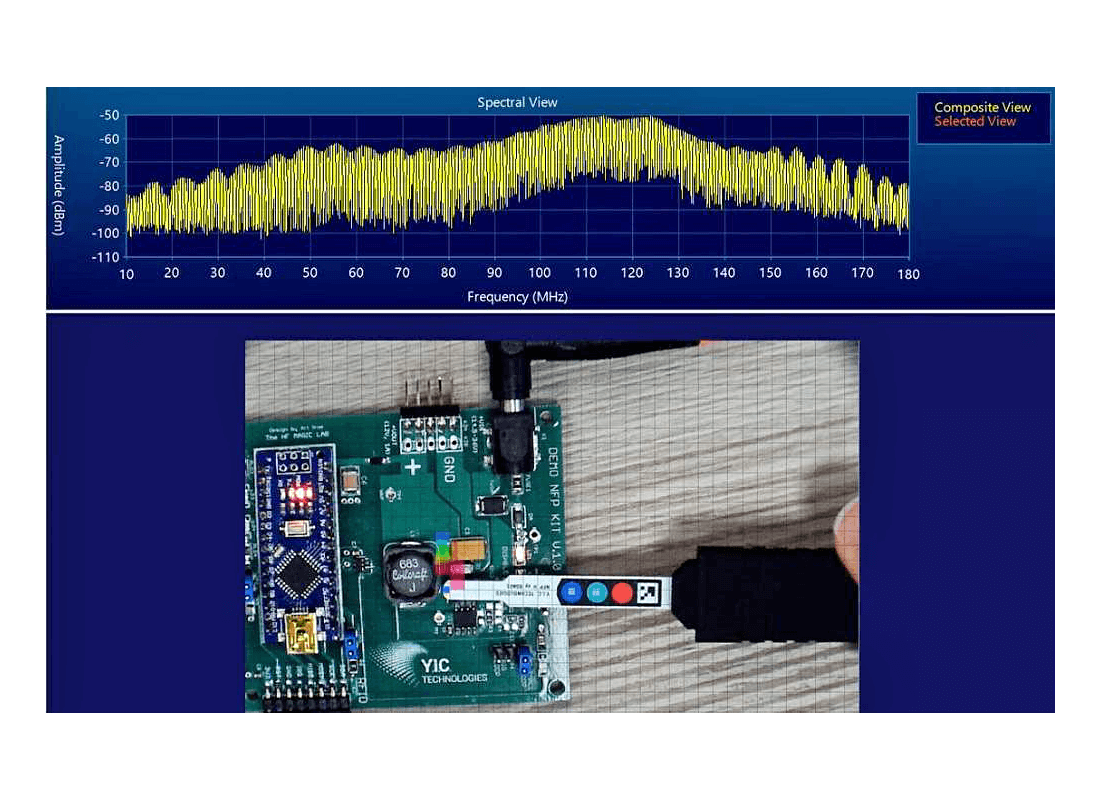

In conjunction with the EMViewer software and the camera included in the set, the HF radiation from the circuit board or the device can be visualized. The probe is guided over the circuit, the camera records the position of the probe and the field strength is displayed in color code as an overlay over the image in the EMViewer software.

The near-field probes can be operated by hand or used on the EMProbe robot arm or other holders.

The NFP kit consists of:

  • Probe hand holder

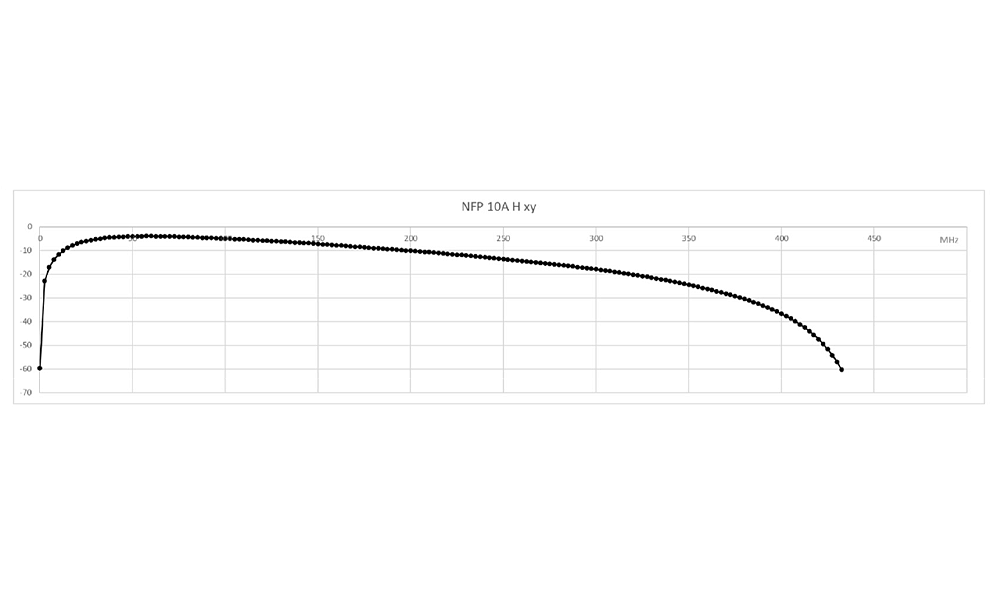

  • HXY 10A02: 10MHz - 300MHz
  • HXY 20A02: 100MHz – 1.4GHz

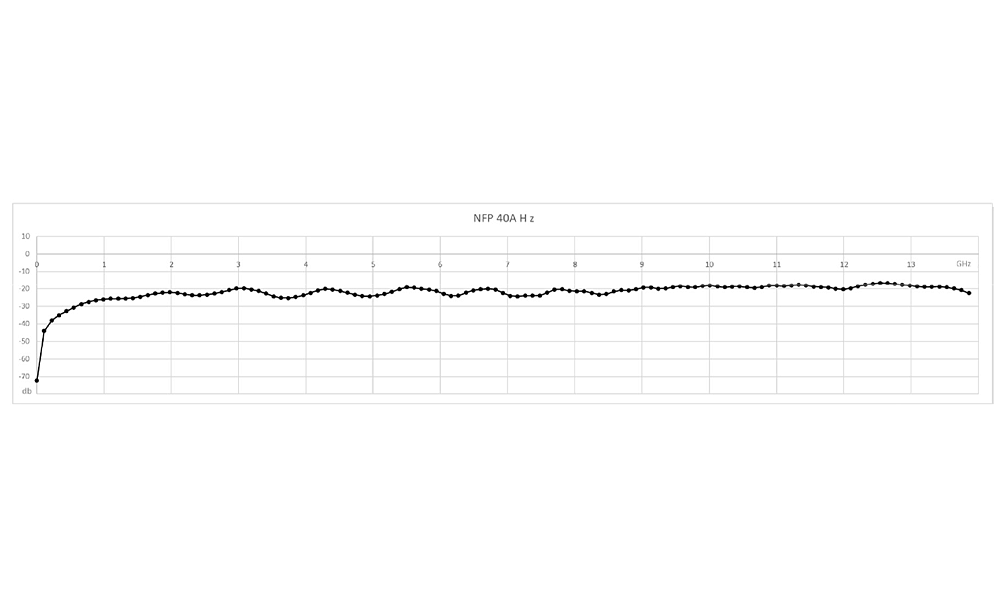

  • HZ 40A02: 1GHz – 14GHz
  • HXY 60A01: 1GHz – 14GHz
  • E 00A02: Full range
  • USB Mini Camera, 5MP, 5-50mm Varifocal Lens, 10X Optical Zoom
  • Adjustable 11 inch mount with clamp
  • 1 year license EMViewer

Product features:

  • Fully integrated into EMViewer
  • Real-time tracking of probe position
  • Flat response
  • Slim design and protective coating
