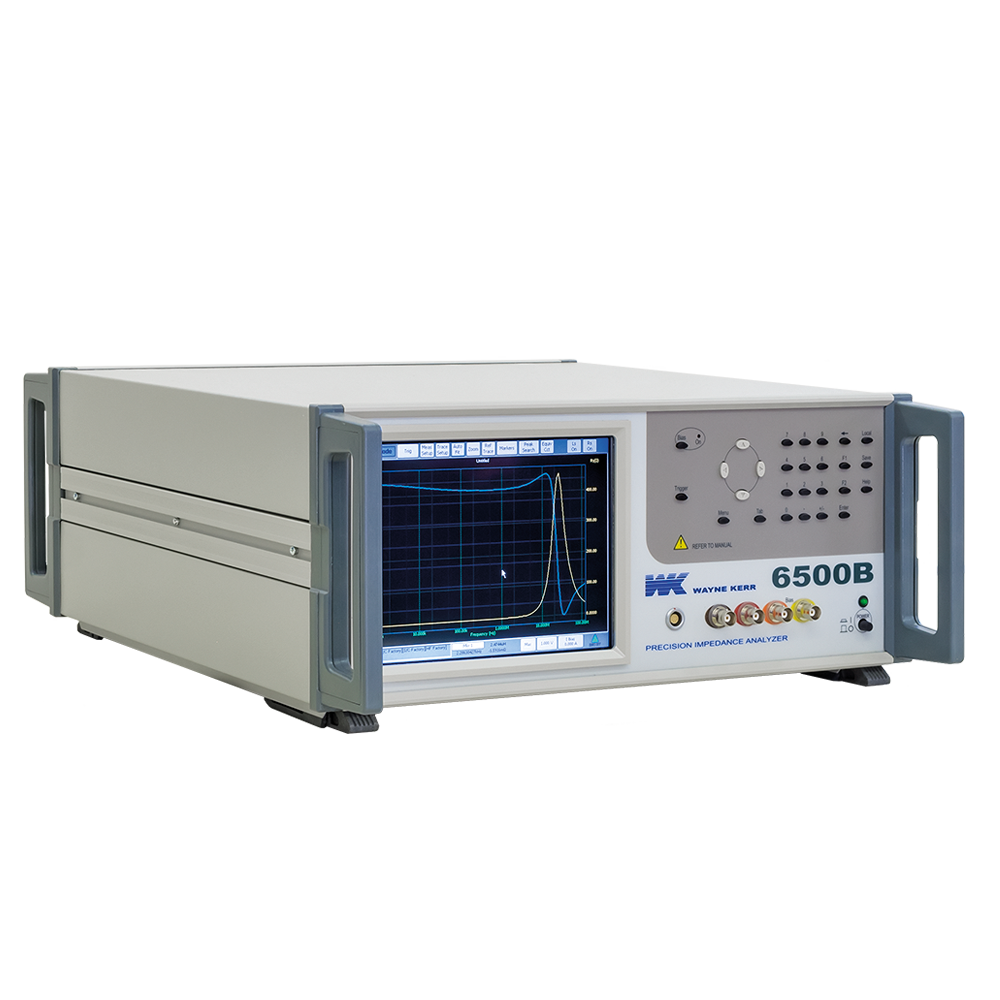

Wayne Kerr 6550B | Impedance analyzer, precision, 20 Hz - 50 MHz, basic accuracy: 0.05%, USB, LAN, GPIB

Manufacturer number: 6550B

Wayne Kerr 6550B
Wayne Kerr 6550B
Wayne Kerr 6550B
Wayne Kerr 6550B
Wayne Kerr 6550B
Wayne Kerr 6550B
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Wayne Kerr 6550B | Impedance analyzer 6500B series, precision, 20 Hz - 50 MHz, basic accuracy: 0.05%, USB, LAN, GPIB.

  • Frequency range: 20 Hz… 50 MHz (models up to 120 MHz available)
  • Basic accuracy: 0.05%
  • Measuring functions: C, L, R, X, G, B, D, Q, Z, Y, Ø - parallel or serial
  • Graphical display of the measurement results (frequency spectrum analysis)
  • fully automated measurements
  • Resonance frequency search function
  • Equivalent circuit function
  • Material test
  • Polar and complex representation

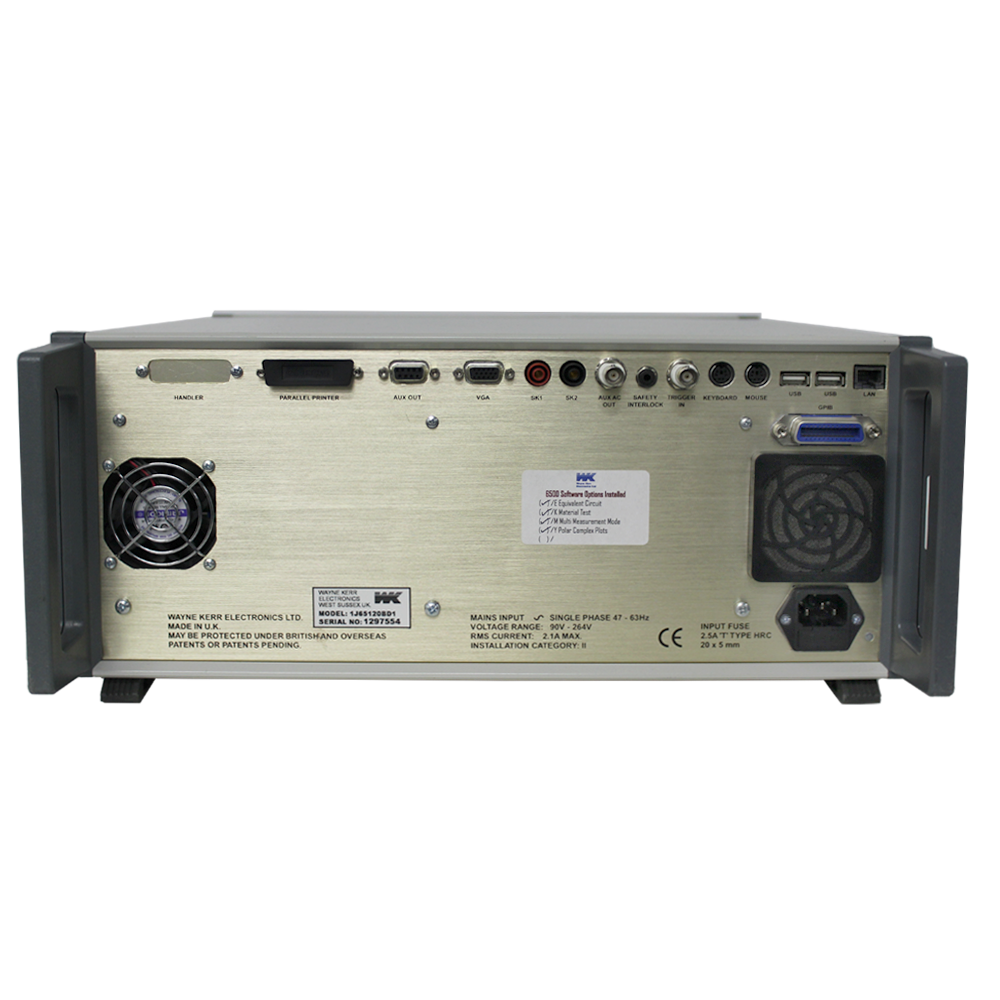

  • Interfaces / Remote: GPIB, LAN, VGA, BINNING, keyboard and mouse
  • Display: 8.4 “VGA TFT touchscreen

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 0.69 MB

Description

6550B | Impedance analyzer, precision, 20 Hz - 50 MHz, basic accuracy: 0.05%, USB, LAN, GPIB

The Wayne Kerr 6500B Series Impedance Analyzers allow you to quickly and accurately test components at frequencies up to 120 MHz. The basic measurement accuracy is ± 0.05%.

The accuracy and versatility make the precision analyzers the ideal choice for many different tasks and applications, including design of passive components, characterization of dielectric materials and manufacturing tests.

Engineers need to evaluate component properties at high frequencies with high accuracy. The precision impedance analyzer 65120B with 120 MHz is therefore ideal for many demanding tasks and combines accuracy and ease of use at an affordable price. If no frequency range up to 120 MHz is required, other models are available. The Wayne Kerr 6550B has a frequency range up to 50 MHz.

Lieferumfang

  • Impedance analyzer
  • Component fastening 1J1011
  • Power cord
  • USB stick
  • Manual
  • Calibration certificate

Accessoires (24 products )

Wayne Kerr 1J1001
Wayne Kerr 1J1001
4 to 1 BNC converter 20 Hz - 120 MHz, length: 1 m
Delivery time upon request
On Request
Wayne Kerr 1J1002
Wayne Kerr 1J1002
4 to 2 BNC converter 20 Hz - 120 MHz, length: 1 m
Delivery time upon request
On Request
Wayne Kerr 1J1011
Wayne Kerr 1J1011
Test adapter for components, 4 terminals
Delivery time upon request
On Request
Wayne Kerr 1J1012
Wayne Kerr 1J1012
Test adapter for SMD, 2 terminals, 20 Hz - 120 MHz, for 1608 to 7451 (metric)
Delivery time upon request
On Request
Wayne Kerr 1J1014
Wayne Kerr 1J1014
Test adapter for SMD, 4 terminals, 20 Hz - 120 MHz, for 1608 to 7451 (metric)
Delivery time upon request
On Request
Wayne Kerr 1J1020
Wayne Kerr 1J1020
Test adapter for dielectric materials, 20 Hz - 30 MHz
Delivery time upon request
On Request
Wayne Kerr 1J1022
Wayne Kerr 1J1022
Test adapter for liquids, 20 Hz - 30 MHz
Delivery time upon request
On Request
Wayne Kerr 1J1023
Wayne Kerr 1J1023
4 to 2 BNC converter
Delivery time upon request
On Request
Wayne Kerr 1J1024
Wayne Kerr 1J1024
Test adapter for SMD, 2 terminals, 20 Hz - 120 MHz, for 0603 to 7451 (metric)
Delivery time upon request
On Request
Wayne Kerr 1J1025
Wayne Kerr 1J1025
Grounded Component Probe for 6565 series
Delivery time upon request
On Request
Wayne Kerr 5-654-7011
Wayne Kerr 5-654-7011
Transfer Standard Kit, SMD, for 6500 series
Delivery time upon request
On Request
Wayne Kerr 5-654-7012
Wayne Kerr 5-654-7012
Terminator Kit, BNC (m) to BNC (f), for 6500 series
Delivery time upon request
On Request
Wayne Kerr 6565-05
Wayne Kerr 6565-05
DC Bias Unit, 10 A, 20 Hz - 5 MHz
Delivery time upon request
On Request
Wayne Kerr 6500-D1
Wayne Kerr 6500-D1
DC bias option, unipolar, + 40 V, + 100 mA, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-K
Wayne Kerr 6500-K
Material test option, for product series 6500, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-Y
Wayne Kerr 6500-Y
Polar Complex Plots option, for product series 6500B, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-E
Wayne Kerr 6500-E
Equivalent Circuit Analysis option, for product series 6500B, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-B1
Wayne Kerr 6500-B1
Option BIN Handler, non-isolated, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-D2
Wayne Kerr 6500-D2
DC bias option, bipolar, ± 40 V for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-M
Wayne Kerr 6500-M
Multi measurement mode option, for product series 6500, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-B2
Wayne Kerr 6500-B2
Option BIN Handler, isolated, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 1EV1905X
Wayne Kerr 1EV1905X
SMD Probe Lead with 1J1023 adapter 4 to 2 terminal
Delivery time upon request
On Request
Wayne Kerr 1EVA40125A
Wayne Kerr 1EVA40125A
Tweezers test adapter for SMD, with metal tips, 4 terminals, 20 Hz - 120 MHz, length: 0.5 m
Delivery time upon request
On Request
Wayne Kerr 1EVA40125
Wayne Kerr 1EVA40125
Tweezers test adapter for SMD, 4 terminals, 20 Hz - 120 MHz, length: 0.5 m
Delivery time upon request
On Request

Alternate products (6 products )

Wayne Kerr 6505B
Wayne Kerr 6505B
Impedance analyzer, precision, 20 Hz - 5 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request
Wayne Kerr 6510B
Wayne Kerr 6510B
Impedance analyzer, precision, 20 Hz - 10 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request
Wayne Kerr 65120B
Wayne Kerr 65120B
Impedance analyzer, precision, 20 Hz - 120 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request
Wayne Kerr 6515B
Wayne Kerr 6515B
Impedance analyzer, precision, 20 Hz - 15 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request
Wayne Kerr 6520B
Wayne Kerr 6520B
Impedance analyzer, precision, 20 Hz - 20 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request
Wayne Kerr 6530B
Wayne Kerr 6530B
Impedance analyzer, precision, 20 Hz - 30 MHz, basic accuracy: 0.05%, USB, LAN, GPIB
Delivery time upon request
On Request

Recommendations (3 products )

Wayne Kerr 6565-05
Wayne Kerr 6565-05
DC Bias Unit, 10 A, 20 Hz - 5 MHz
Delivery time upon request
On Request
Wayne Kerr 6565-30
Wayne Kerr 6565-30
DC Bias Unit, 10 A, 20 Hz - 30 MHz
Delivery time upon request
On Request
Wayne Kerr 6565-120
Wayne Kerr 6565-120
DC Bias Unit, 10 A, 20 Hz - 120 MHz
Delivery time upon request
On Request

Options (8 products )

Wayne Kerr 6500-B1
Wayne Kerr 6500-B1
Option BIN Handler, non-isolated, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-B2
Wayne Kerr 6500-B2
Option BIN Handler, isolated, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-D1
Wayne Kerr 6500-D1
DC bias option, unipolar, + 40 V, + 100 mA, for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-D2
Wayne Kerr 6500-D2
DC bias option, bipolar, ± 40 V for product series 6500, hardware option
Delivery time upon request
On Request
Wayne Kerr 6500-E
Wayne Kerr 6500-E
Equivalent Circuit Analysis option, for product series 6500B, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-K
Wayne Kerr 6500-K
Material test option, for product series 6500, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-M
Wayne Kerr 6500-M
Multi measurement mode option, for product series 6500, firmware
Delivery time upon request
On Request
Wayne Kerr 6500-Y
Wayne Kerr 6500-Y
Polar Complex Plots option, for product series 6500B, firmware
Delivery time upon request
On Request

Probes (3 products )

Wayne Kerr 1EVA40125
Wayne Kerr 1EVA40125
Tweezers test adapter for SMD, 4 terminals, 20 Hz - 120 MHz, length: 0.5 m
Delivery time upon request
On Request
Wayne Kerr 1EVA40125A
Wayne Kerr 1EVA40125A
Tweezers test adapter for SMD, with metal tips, 4 terminals, 20 Hz - 120 MHz, length: 0.5 m
Delivery time upon request
On Request
Wayne Kerr 1EV1905X
Wayne Kerr 1EV1905X
SMD Probe Lead with 1J1023 adapter 4 to 2 terminal
Delivery time upon request
On Request

About the Manufacturer

Wayne Kerr
Wayne Kerr
Wayne Kerr was founded in London (GB) in 1946 and developed into one of the leading manufacturers of measuring instruments in the electronics sector worldwide. Today, you will find Wayne Kerr wherever the highest precision and reliability are required: in automotive engineering, component manufacturing, medical technology and, of course, in universities and other educational institutions.
