Wayne Kerr WK5400L8 | High-current LCR meter 5400L series, 10 Hz - 8 MHz, accuracy: 0.05%, LAN, USB, GPIB

Manufacturer number: 5400L8

Wayne Kerr WK5400L8
Wayne Kerr WK5400L8
Wayne Kerr WK5400L8
Wayne Kerr WK5400L8
Delivery time upon request

€13,000.00

plus VAT. €15,470.00 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Wayne Kerr WK5400L8 | High-current LCR meter, DC, 10 Hz - 8 MHz, 0.05% accuracy, LAN, USB, GPIB.

  • LCR Meter for High Current Test Systems
  • Frequency range 10 Hz~8 MHz
  • Three operating modes with independent calibration
  • High test speed and accuracy of 0.05%

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.31 MB

Description

WK5400L8 | High-current LCR meter 5400L series, 10 Hz - 8 MHz, accuracy: 0.05%, LAN, USB, GPIB

The Wayne Kerr 5400L8 is a high precision LCR meter specifically designed to meet the needs of high current inductance test systems. With an external DC bias power source, it offers a maximum current rating of up to 300A/500kHz or 250A/1MHz using 10 or 12 x 3265B DC Bias Units, ensuring robust test performance. Thanks to its three operating modes and independent calibrations, the 5400L8 covers a wide range of testing needs while offering high testing speed.

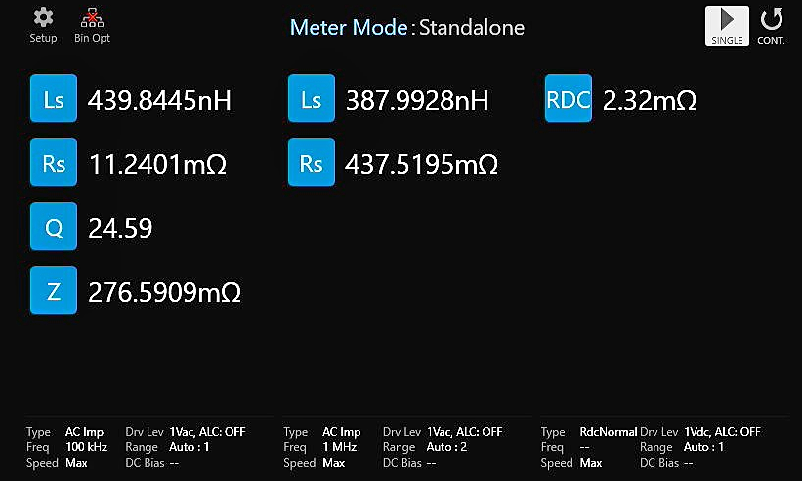

With a basic accuracy of 0.05% and a measurement frequency range of 10 Hz to 8 MHz, the 5400L8 delivers reliable results. The AC signal source enables flexible and precise signal generation with an output power of 5Vrms/200mArms. Additionally, up to 4 different parameters can be measured at 3 different spot frequencies simultaneously, enabling comprehensive testing and analysis.

The 5400L8 offers automatic level control (ALC) for constant voltage or current on the device Under Test (DUT) and only requires a one-time calibration of the fixture. Thanks to the option for a real-time data logger (/D), measurement results can be saved efficiently in real time.

The LCR meter can be controlled via GPIB, LAN or USB interfaces and offers an energy-efficient operating mode and precise testing at every frequency. With its multi-point multi-bias capability, the 5400L8 enables fast and precise testing and thus optimizes test efficiency.

Optional extensions, for example, enable detailed analysis functions with graphical display ( Option 1J5400OPG), the logging of measurements and results in real time (option 1J5400OPD) or the ability to control up to 12 x 3265B DC bias units (option 1J5400DCBIASKIT1 or 1J5400DCBIASKIT2).

Accessoires (6 products )

Wayne Kerr 1J5400OPD
Wayne Kerr 1J5400OPD
Data logging option for measurements and results for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400OPG
Wayne Kerr 1J5400OPG
Graph analysis function option for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400DCBIASKIT2
Wayne Kerr 1J5400DCBIASKIT2
Kits and connection cables for 7 x and up to 12 x 3265B DC Bias Units for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400DCBIASKIT1
Wayne Kerr 1J5400DCBIASKIT1
Kit and connection cable for up to 6 x 3265B DC Bias Units for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J1054
Wayne Kerr 1J1054
1054 DIP device, replacement for 1054, standard on WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J1041
Wayne Kerr 1J1041
300A high current, two-wire DIP device for WK5400L
Delivery time upon request
€5,995.00

Alternate products (2 products )

Wayne Kerr WK5400L10
Wayne Kerr WK5400L10
High-current LCR meter 5400L series, 10 Hz - 10 MHz, accuracy: 0.05%, LAN, USB, GPIB
Delivery time upon request
€15,000.00
Wayne Kerr WK5400L5
Wayne Kerr WK5400L5
High-current LCR meter 5400L series, 10 Hz - 5 MHz, accuracy: 0.05%, LAN, USB, GPIB
Delivery time upon request
€11,000.00

Recommendations (9 products )

Wayne Kerr /5B2
Wayne Kerr /5B2
Option BIN handler, isolated 24V signals for WK5400L
Delivery time upon request
On Request
Wayne Kerr /5B3
Wayne Kerr /5B3
BIN Handler option, universal optical coupling card for WK5400L
Delivery time upon request
On Request
Wayne Kerr /5B1
Wayne Kerr /5B1
Option BIN handler, non-isolated 5V signals for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J1054
Wayne Kerr 1J1054
1054 DIP device, replacement for 1054, standard on WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400DCBIASKIT1
Wayne Kerr 1J5400DCBIASKIT1
Kit and connection cable for up to 6 x 3265B DC Bias Units for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J1041
Wayne Kerr 1J1041
300A high current, two-wire DIP device for WK5400L
Delivery time upon request
€5,995.00
Wayne Kerr 1J5400DCBIASKIT2
Wayne Kerr 1J5400DCBIASKIT2
Kits and connection cables for 7 x and up to 12 x 3265B DC Bias Units for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400OPG
Wayne Kerr 1J5400OPG
Graph analysis function option for WK5400L
Delivery time upon request
On Request
Wayne Kerr 1J5400OPD
Wayne Kerr 1J5400OPD
Data logging option for measurements and results for WK5400L
Delivery time upon request
On Request

Options (3 products )

Wayne Kerr /5B1
Wayne Kerr /5B1
Option BIN handler, non-isolated 5V signals for WK5400L
Delivery time upon request
On Request
Wayne Kerr /5B2
Wayne Kerr /5B2
Option BIN handler, isolated 24V signals for WK5400L
Delivery time upon request
On Request
Wayne Kerr /5B3
Wayne Kerr /5B3
BIN Handler option, universal optical coupling card for WK5400L
Delivery time upon request
On Request

About the Manufacturer

Wayne Kerr
Wayne Kerr
Wayne Kerr was founded in London (GB) in 1946 and developed into one of the leading manufacturers of measuring instruments in the electronics sector worldwide. Today, you will find Wayne Kerr wherever the highest precision and reliability are required: in automotive engineering, component manufacturing, medical technology and, of course, in universities and other educational institutions.
