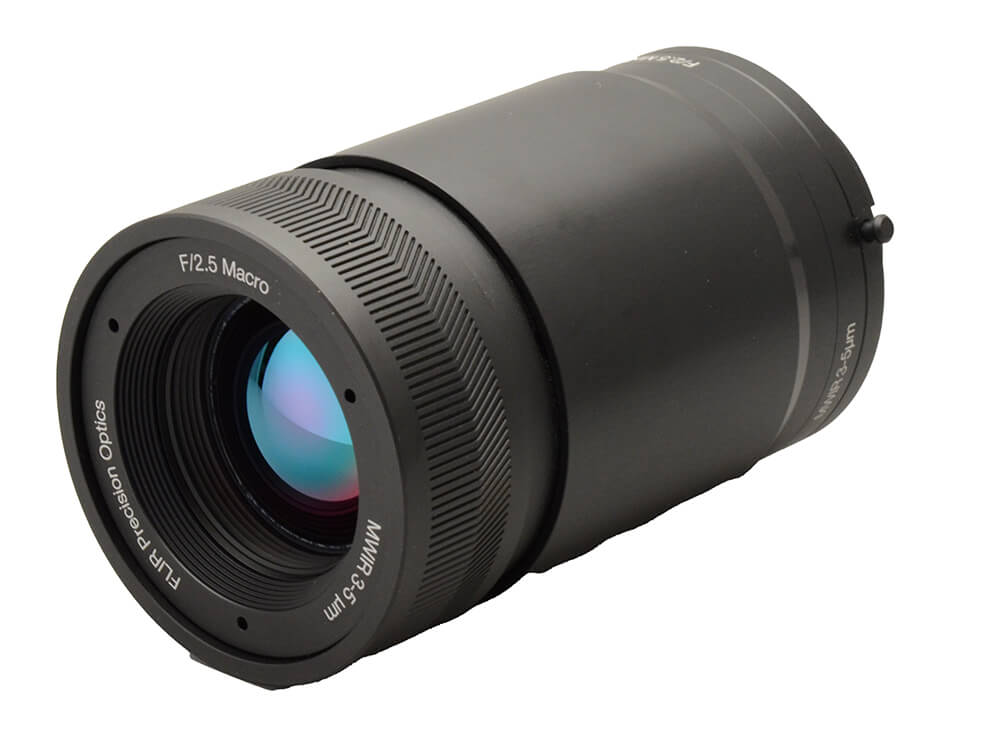

Teledyne FLIR T300385 | Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens

Name: T300385 | Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens
Brand: Teledyne FLIR
SKU: T300385
Availability: InStock

Manufacturer number: T300385

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

Teledyne FLIR T300385 | Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens.

Average transmission: > 85%
Weight: 895 grams
Focus method: Manual
Focal length: 27-40 mm (reimaging)
Diameter: 76.6 mm
Focus range: ~110 mm to ~600 mm
Length: 114.6-130.5 mm
Spectral band: 3 - 5 µm
Distortion: < 2%
Operating temperature range: -20°C to 50°C
Storage temperature range: -40°C to 70°C

Documents & Downloads

Datasheet

pdf | 0.45 MB

Description

T300385 | Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens

The Teledyne FLIR T300385 is a highly specialized macro lens optimized for the mid-wave infrared (MWIR) range from 3 to 5 microns. With an aperture of f/2.5, it delivers exceptional image quality and light intensity, ideal for precise close-ups in the infrared range.

Main features:

Macro lens: Specially developed for high-resolution close-ups in the infrared range.
Spectral range: 3 to 5 microns, optimal for MWIR applications.
F-number: f/2.5 for excellent light output and razor-sharp images.
Focus: Manual focus system enables precise adjustments for maximum image clarity.
Bayonet mount: FPO (Front Piece Optics) for easy and secure mounting on compatible cameras.
Rugged construction: Designed for use in demanding environments, resistant to environmental influences.
Application areas: Ideal for scientific research, industrial inspections and safety-related applications where precise and clear close-up images in the MWIR range are required.

The Teledyne FLIR T300385 offers excellent performance and reliability for demanding infrared tasks thanks to its high-quality optics and robust construction. With this lens, users can capture detailed and precise infrared images in close-up, making it an indispensable tool for specialized infrared applications.
