Teledyne FLIR CM275 | AC / DC current clamp, integr. 120 x 160 px thermal image detector
Manufacturer number: CM275
FLIR CM275 | AC / DC multiple measuring clamp: current clamp + multimeter + integrated thermal imaging camera with a temperature measuring range from -25 to 150 ° C (19,200 temperature measuring points).
- Temperature measuring points: 19,200 pixels (160 × 120)
- Temperature measuring range: -25 ° C to 150 ° C
- Built-in laser pointer
- Measuring functions multimeter / current clamp : AC / DC voltage up to 1000V, LoZ AC / DC volt, AC / DC current up to 600A, inrush AC current, frequency, resistance, capacitance, diode
- True RMS volt and current measurement
- Auto-ranging and manual range adjustment
- Display: 6,000 digits 2.4 inch color TFT
- Pliers opening: 35mm
- Safety protection class: CAT IV 600V, CAT III 1000V
- Dimensions: W 89 mm × H 241 mm x D 43 mm
- Weight: 426 g with batteries
- Battery operated with 4 x AAA batteries
- Warranty: 10 years on product and detector
Technical Data
Accuracy current measurement AC/DC: | ±2 % / ±2 % |
---|---|
Accuracy voltage measurement AC/DC: | ±1 % / ±1 % |
Article number: | CM275 |
Current measuring range AC/DC: | 600A / 600A |
Dimensions (L x W x H) (mm): | 255 x 97 x 48,5 |
Diode test / continuity test: | Yes / Yes |
Direction of rotation: | No |
Enclosure (mm): | 35 |
Frequency measuring range: | 10 kHz |
Hold: | No |
Measurement method: | TRMS |
Min. / Max. Measurement: | Yes / Yes |
Model: | FLIR CM275 |
Power factor: | Nein |
Power measurement (active / apparent / reactive): | No / No / No |
Resistance measuring range: | 6 kΩ |
Temperature measuring range: | -10 °C - +150 °C |
Voltage measuring range AC/DC: | 1000 V / 1000 V |
Weight (kg): | 0.46 |
Documents & Downloads
Description
CM275 | AC / DC current clamp, integr. 120 x 160 px thermal image detector
Multiple measuring clamp / multimeter with integrated thermal imaging technology: The FLIR CM275 is the only multiple measuring clamp that helps you to find problems that you cannot recognize with a conventional multiple measuring clamp. With its infrared-controlled IGM (Infrared Guided Measurement) technology and its integrated FLIR Lepton® thermal imaging sensor, the CM275 guides you visually to the point of the potential electrical problem so that you can reliably identify dangerous and unknown problem areas.

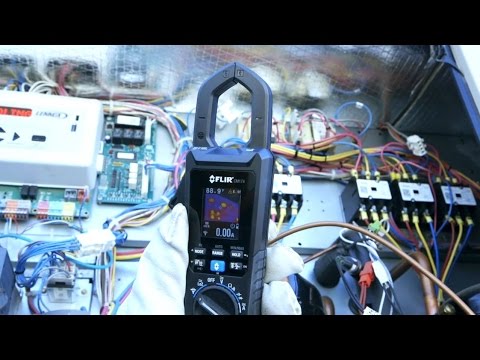

Detect moisture and temperature problems faster: The CM275 is a complete, user-friendly solution that allows you to take precise measurements while taking advantage of thermal imaging technology. This allows you to visually identify electrical problems without having to touch junction boxes, cabinets, or a tangle of cables and wires that could pose a potential safety hazard. No matter what obstacles are in your way - the Infrared Guided Measurement (IGM) technology quickly and reliably points out the respective problem.
Solve complex electrical problems : The intelligent design of the CM275 includes narrow pliers and an integrated work light so that you can easily reach measuring points that are difficult to access or poorly lit. Thanks to their extended electrical functions, you can quickly receive all measured values including TRMS, LoZ, VFD mode, starting current and intelligent diode with deactivation function. In addition, the CM275 can be expanded to 3,000 A AC with the FLIR FLEX accessories.
The FLIR CM275 also supports wireless data connections to the FLIR InSite ™ workflow management app.
Lieferumfang
- Scope of delivery with 4 batteries, premium silicone test leads, quick start instructions, operating instructions (CD), soft carrying case
