Teledyne FLIR T840 | Thermal imaging camera 464 x 348 px, 80° optics (82511-0201)

Manufacturer number: 82511-0201

Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Teledyne FLIR T840
Delivery time upon request

€24,399.00

plus VAT. €29,034.81 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Teledyne FLIR T840 | Thermal imaging camera, resolution 464 x 348 px, UltraMax resolution 645,888 px, rotating optical unit & integrated viewfinder, including 80° lens.

  • Display: Touchscreen LCD 4 inches, 640 × 480 pixels, automatic rotation function
  • IR resolution: 464 × 348 (161,472 pixels)
  • Laser pointer: Yes
  • Spectral range: 7.5 - 14.0 µm
  • Digital zoom: 1x to 6x continuously
  • Lens detection: Automatic
  • UltraMax resolution: 645,888 effective pixels
  • Accuracy: ±2°C or ±2% of reading
  • Object temperature range: -20°C to 120°C | 0°C to 650°C | 300°C to 1,500°C
  • Battery life: Approximately 4 hours of typical use
  • Interfaces: USB 2.0, Bluetooth, WLAN
  • Storage media: Removable SD memory card
  • Video output: DisplayPort via USB Type C
  • METERLiNK: Yes
  • Weight and dimensions (excluding lens): 1.3kg, 140mm x 201mm x 84mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Overview
pdf | 0.62 MB

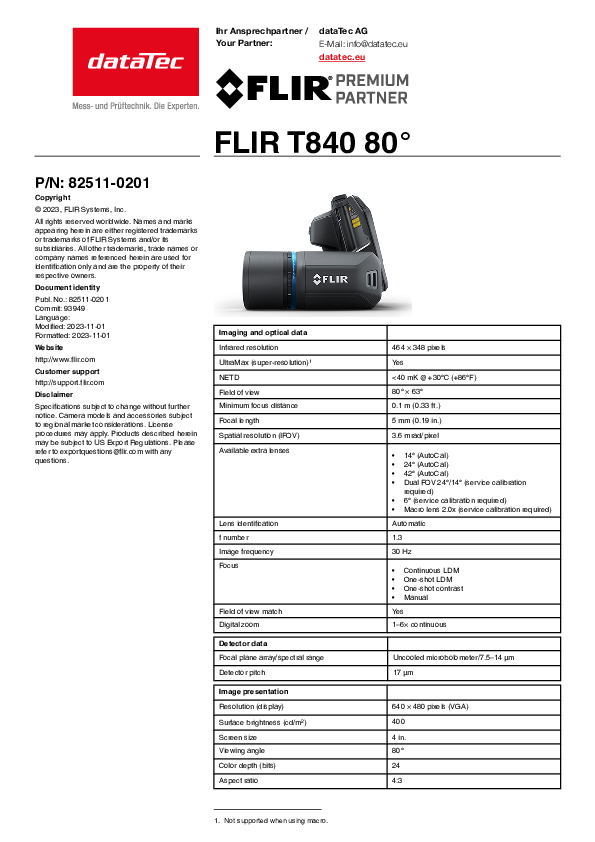

Datasheet
pdf | 1.39 MB
Userguide
pdf | 4.99 MB

Description

T840 | Thermal imaging camera 464 x 348 px, 80° optics (82511-0201)

The Flir T840 noticeably simplifies and accelerates the internal and external monitoring of electrical systems, the identification of defective components and many other thermal tests. Carry out tests, inspections and maintenance quickly, easily, flexibly and without excessive physical strain. The bright, 4-inch color LCD display, including built-in viewfinder, allows you to carry out inspections even in the most difficult lighting conditions. Thanks to the high resolution of 464 x 348 pixels, you can carry out inspections from safe distances. Of course, the Flir T840 is equipped with FLIR Vision Processing™, MSX® and UltraMax®, providing you with optimized resolution of up to 645,888 pixels. The Flir T 840 has a particularly ergonomic design and an optics unit that can be swiveled through 180°. This allows you to identify thermal irregularities, even in places that are particularly difficult to access, without any contortions, almost in no time at all. This variant includes the 80° wide-angle lens. Wireless Wi-Fi streaming to the FLIR Tools app allows for easy, real-time inspection of trouble spots. In addition, the GPS sensor integrated into the camera automatically provides the image files with the associated geolocation data to simplify their identification and precise documentation.
