Teledyne FLIR T840 | Thermal imaging camera 464 x 348 px, 24 ° + 6 ° optics (825080201)
Manufacturer number: 825080201
Teledyne FLIR T840 | Thermal imaging camera, resolution 464 x 348 px, UltraMax resolution 645.888 px, rotatable optical unit & integrated viewfinder, including 24 ° & 6 ° lens (825080201).
- Display: Touchscreen LCD 4 inches, 640 × 480 pixels, automatic rotation function
- IR resolution: 464 × 348 (161,472 pixels)
- Laser pointer: yes
- Spectral range: 7.5 - 14.0 µm
- Digital zoom: 1 to 6 times continuously
- Lens detection: Automatic
- Minimum focus distance: 42 ° lens - 0.15 m 24 ° lens - 0.15 m; optional macro mode 14 ° lens - 1.0 m 6 ° lens - 5.0 m
- UltraMax resolution: 645,888 effective pixels
- Accuracy: ± 2 ° C or ± 2% of the display value
- Object temperature range: -20 ° C to 120 ° C | 0 ° C to 650 ° C | 300 ° C to 1,500 ° C
- Battery life: Approx. 4 hours with typical use
- Interfaces: USB 2.0, Bluetooth, WLAN
- Storage media: Removable SD memory card
- Video output: DisplayPort over USB Type C
- METERLiNK: Yes
- Weight and dimensions (without lens): 1.3 kg, 140 mm x 201 mm x 84 mm
Technical Data
Article number: | 825080201 |
---|---|
Model: | T840 24°+6° |
Resolution in pixels: | 464 x 348 |
Temperature measuring points: | 161472 |
Thermal sensitivity (mK): | 40 |

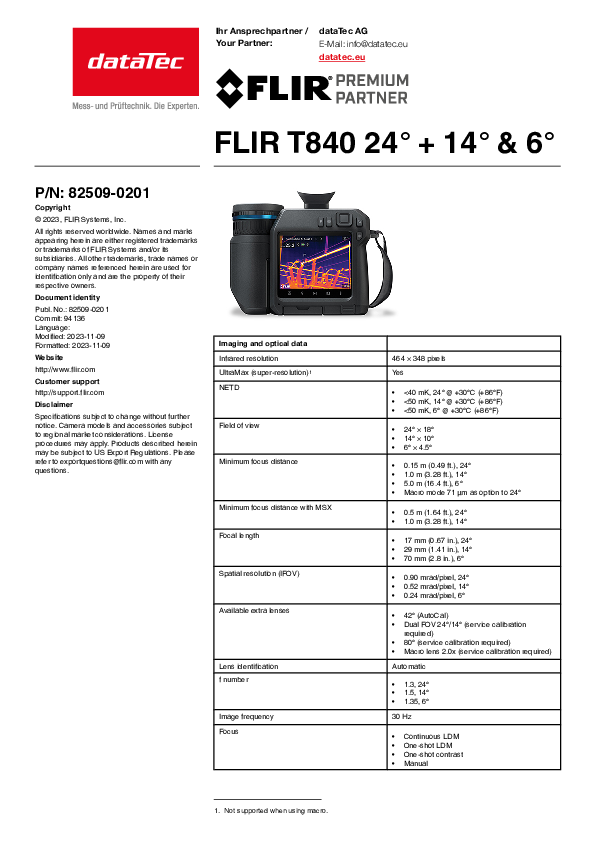

Documents & Downloads
Description
T840 | Thermal imaging camera 464 x 348 px, 24 ° + 6 ° optics (825080201)
The Flir T840 facilitates and accelerates the internal and external monitoring of electrical systems, the identification of defective components and many other thermal tests. Carry out tests, inspections and maintenance quickly, easily, flexibly and without excessive physical strain. The bright, 4-inch color LCD display, including a built-in viewfinder, enables you to carry out inspections even in the most difficult lighting conditions. Thanks to the high resolution of 464 x 348 pixels, you can carry out inspections from a safe distance. Of course, the Flir T840 is equipped with FLIR Vision Processing ™, MSX® and UltraMax® and provides you with an optimized resolution of up to 645,888 pixels.
The Flir T 840 has a particularly ergonomic design and an optical unit that can be swiveled through 180 °. This enables you to identify thermal irregularities even in places that are particularly difficult to access, without dislocations, almost in the twinkling of an eye.
This variant includes the 24 ° lens and the 6 ° telephoto lens, which enables you to take precise measurements even over greater distances.
Wireless WiFi streaming to the FLIR Tools app enables easy real-time review of problem areas. In addition, the GPS sensor integrated in the camera automatically provides the image files with the associated geolocation data in order to simplify their identification and precise documentation.
