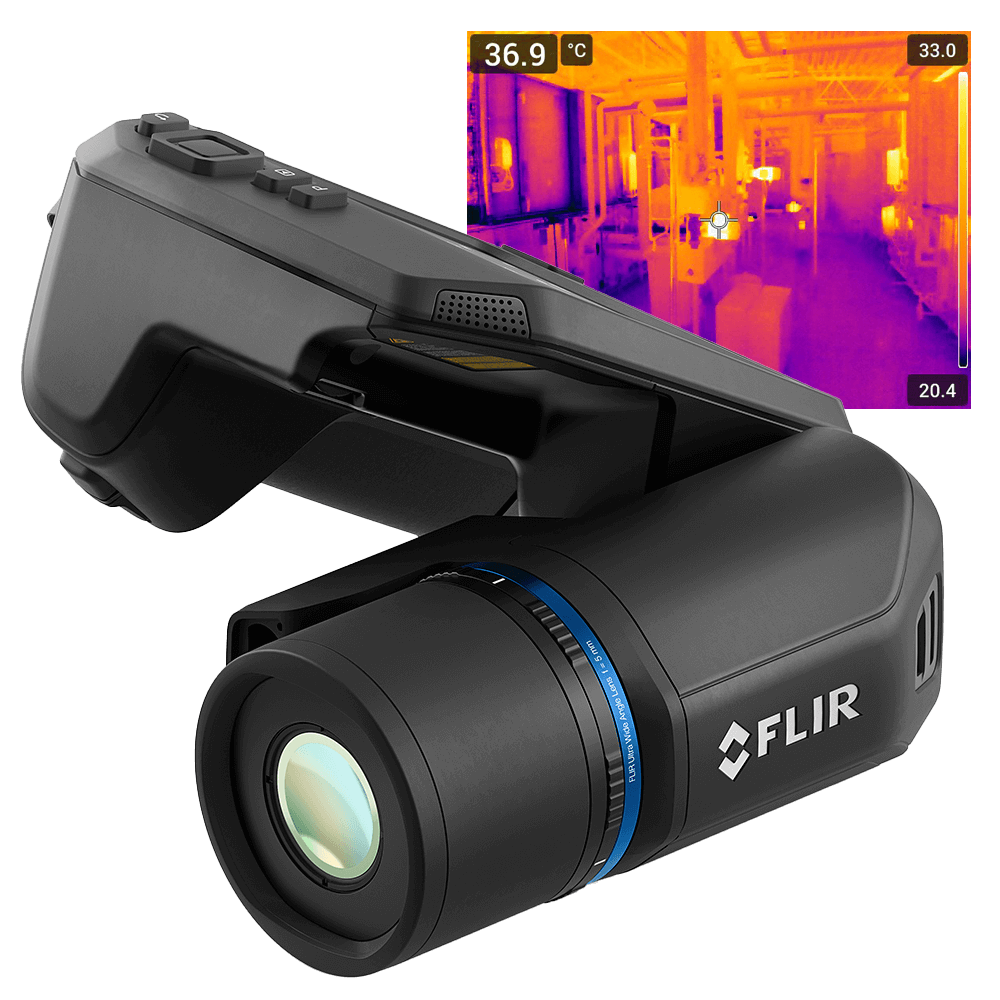

Teledyne FLIR T540 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

Manufacturer number: 79310-0201

T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
T540
Delivery time upon request

€16,799.00

plus VAT. €19,990.81 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR T540 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

  • Real temperature measuring points: 161,472 (native resolution 464 x 348 pixels)
  • Temperature measuring points with UltraMax: 645,888
  • Temperature ranges: -20°C to +120 °C / 0°C to +650 °C / +300 °C to +1.500 °C
  • Thermal sensitivity: < 0.03 °C
  • Measurement accuracy: +/-2°C , +/-2%
  • Repeat frequency 30 Hz
  • Meets the requirements of DIN 54191 - Non-destructive testing - Thermographic testing of electrical installations
  • Measurement method: 3 measuring points, 3 ranges with min./max.
  • DeltaT temperature difference measurement
  • Emittance individually adjustable from 0.01 to 1.0 or selection from list of materials
  • Reflection level automatic, based on input of reflected temperature
  • Image modes: thermal image, visual image, picture in picture (PIP), thermal fusion
  • FLIR picture in picture: Overlays your real image with a scalable and movable infrared image area
  • FLIR Thermal Fusion: Infrared image overlays digital image via an isothermal threshold for even better analysis
  • Multi Spectral Dynamic Imaging (MSX) for extremely detailed thermal images
  • UltraMax: Image optimization with 4higher image resolution in conjunction with SW FLIR tools
  • Automatic GPS tagging / compass
  • Built-in daylight camera with 5 megapixel
  • Includes 24° / 42° DUAL FOV lens
  • Built-in laser pointer
  • Fast and precise laser-assisted autofocus
  • Laserdistance measurement and display-supported area calculation
  • Digital 1 - 6x zoom, adjustable via gesture control on multi-touch display (like a smartphone)
  • 180° rotatable optical unit and 4-inch, bright capacitive touchscreen
  • Image display: Palettes (iron, rainbow and black/white), level, span, auto adjustment (continuous/manual)
  • Settings: Date/time, info, LCD intensity, Switch off and 21 languages
  • Standard USB outputs and SD card slot
  • MeterLink technology for data exchange via BlueTooth with meterlink-capable handheld measuring devices
  • Wi-Fi connection to iPad/iPhone/AndroidPad with optional FLIR Tools Mobile APP (via iTunes / Android Market)
  • MicroSD memory card for storing over 2000 images
  • .Memory card for storing over 2000 images in JPG format with radiometric information per pixel
  • Text and voice recording per image
  • Radiometric real-time video recording
  • Radiometric IR video streaming
  • Interfaces: USB 2.0, Bluetooth, WLAN
  • Copy to USB (image storage on USB stick)
  • Instant report: direct printing of a PDF report incl. thermal and real image from the camera without additional software
  • Energy management - automatic switch-off
  • Lithium-ion battery type, battery charge status control
  • Operating time approx. 4 hours
  • Weight: approx. 1.3 kg
  • Dimensions: 140 x 201 x 84 mm
  • Protection class IP54 - suitable for use in industrial environments
  • Warranty: 2 years / 10 years on the detector

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Overview
pdf | 0.55 MB
Userguide
pdf | 4.92 MB

Description

T540 | Thermal imaging camera 464x348px, 24°/42° DUAL FOV, 30Hz, -20°C to +1500°C, 50mK

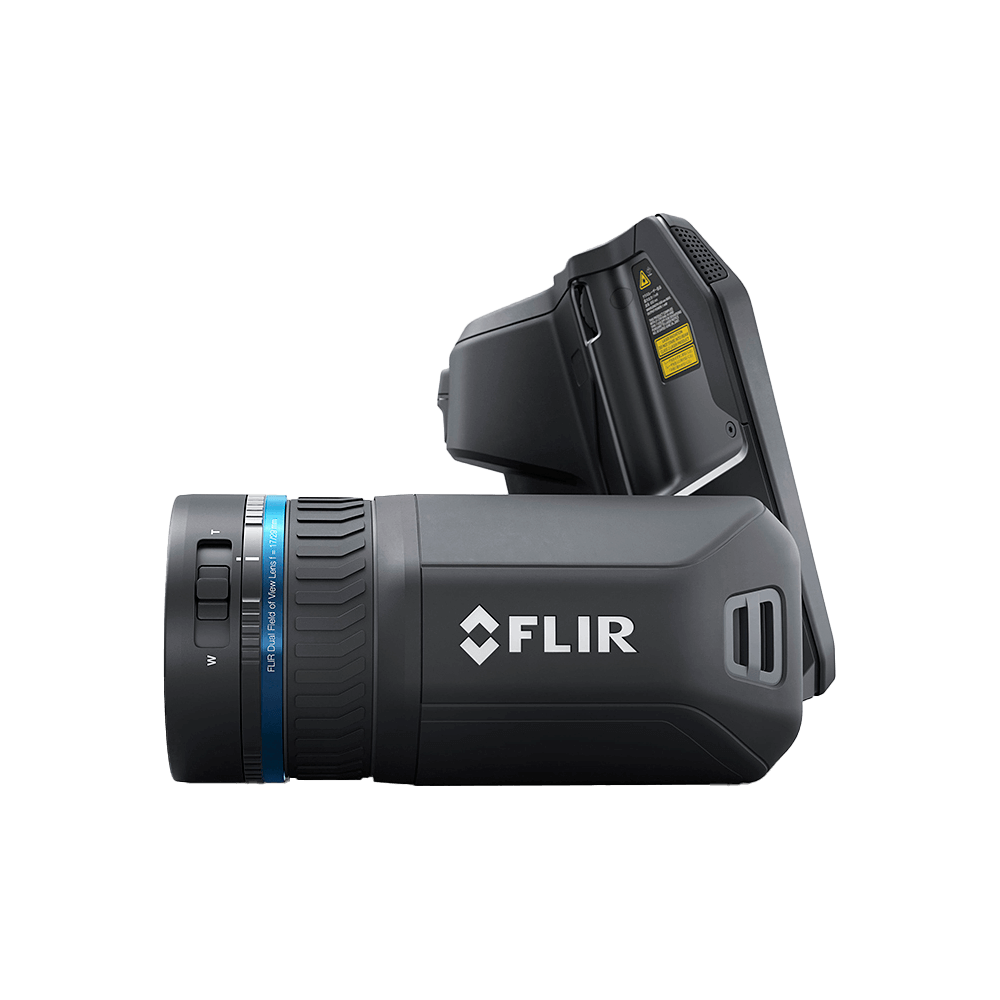

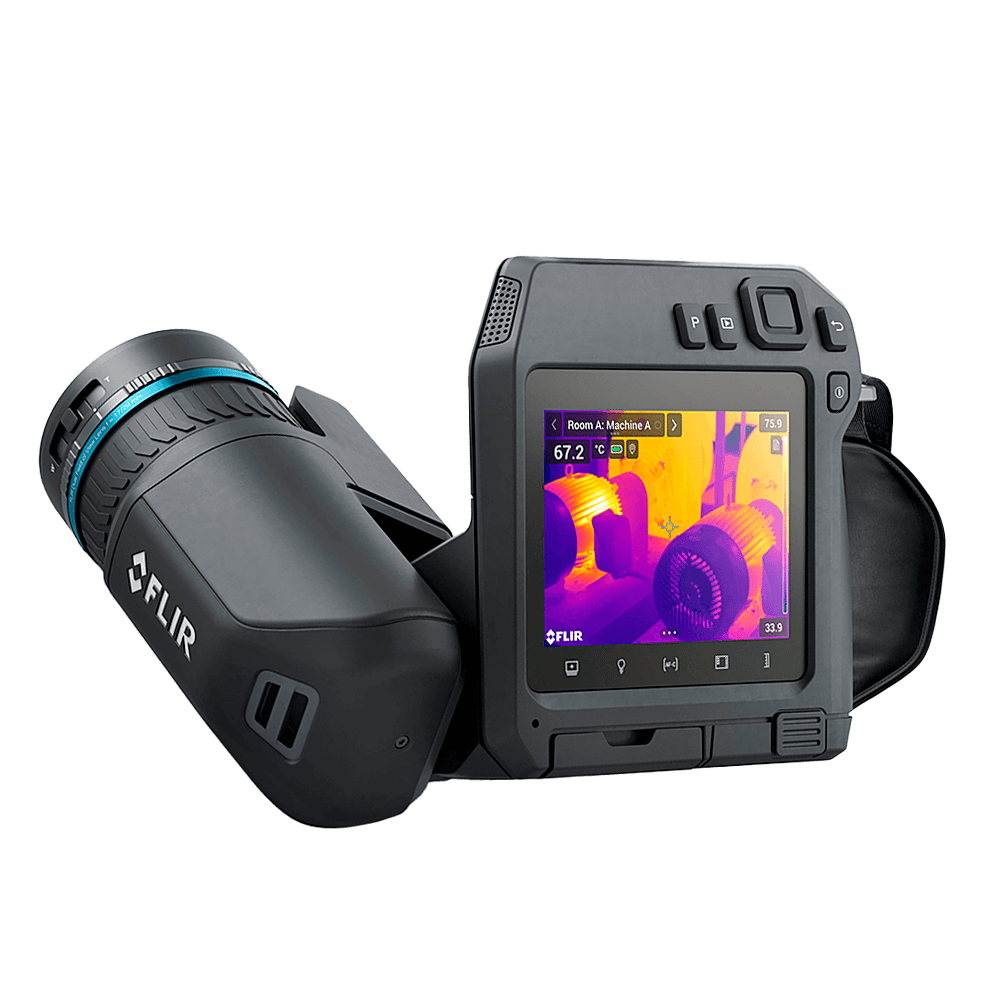

With its 180° rotatable optical unit, bright touchscreen display and compact dimensions, the T500 thermal imaging camera series provides thermographers and IR service consultants with all the tools they need to perform comprehensive inspections in difficult conditions - especially when the view of the equipment to be inspected is obstructed or difficult to access.

Thermography | The FLIR T540 thermal imaging camera helps to quickly detect thermal problems in electrical and electronic equipment, identify mechanical faults and perform preventive maintenance.

The object is examined holistically pixel by pixel (each pixel with its own temperature information) and provides immediate diagnostic results. The fully equipped infrared camera with built-in digital camera combines an infrared and real image with the thermal FUSION image-in-image function: a daylight image is superimposed on the radiometric infrared image at the same time. This allows critical problems to be identified even more quickly and precisely.

The measurements/thermographic images (standard JPG with fully radiometric measurement data per pixel) are stored on an SD card and can be easily evaluated, analyzed and documented using the FLIR Tools PC software included in the scope of delivery.

This variant includes the 24°, 42° dual FOV lens. This innovative dual lens allows you to switch between views without having to change the lens.
