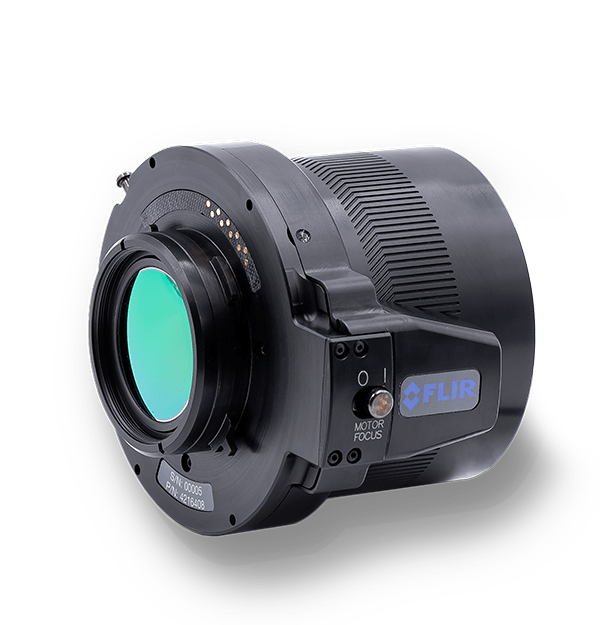

Teledyne FLIR 4216408 | 17 mm, 3.0-5.0 μm, f/2.5 MWIR FPO motorized lens bayonet

Manufacturer number: 4216408

Delivery time upon request

On Request

or choose one of the following options:
Product inquiries Request education-price
Highlights Description Related Articles

Teledyne FLIR 4216408 | 17 mm, 3.0-5.0 μm, f/2.5 MWIR FPO motorized lens bayonet.

  • Durchschnittliche Übertragung: 95,12 %
  • Gewicht: 670 Gramm
  • Brennweite: 17 mm
  • Durchmesser: 90 mm / 3,54 Zoll (62 mm / 2,44 Zoll CL bis Toggle)
  • Fokus: Manuell/Motorgetrieben
  • Fokusbereich: 0,06 m bis unendlich
  • Länge: 69 mm
  • Hyperfokale Distanz: 5 m
  • Spektralband: 3–5 μm
  • Verzerrung: <3.5%
  • Schnittstelle: Motorisierter FPO Bajonettverschluss mit 5 Haltelaschen (NICHT kompatibel mit nicht-motorisiertem Bajonett)
  • Betriebstemperaturbereich: -20°C bis 50°C
  • Lagertemperaturbereich: -20°C bis 60°C

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

4216408 | 17 mm, 3.0-5.0 μm, f/2.5 MWIR FPO motorized lens bayonet

The Teledyne FLIR 4216408 is a high-precision 17 mm MWIR (Mid-Wave Infrared) lens designed for the infrared range from 3.0 to 5.0 micrometers. With an aperture of f/2.5, this motorized FPO (Front Piece Optics) bayonet lens offers exceptional image quality and light intensity for demanding infrared applications.

Main features:

  • Focal length: 17 mm, ideal for detailed close-ups and an extended field of view.
  • Spectral range: 3.0 to 5.0 microns, especially suitable for MWIR applications.
  • F-number: f/2.5 enables high light yield and sharp, clear images, even in low light.
  • Motorized focus system: Enables precise and automated focusing for maximum image sharpness and ease of use.
  • Bayonet mount: FPO (Front Piece Optics) ensures easy and secure mounting on compatible cameras.
  • Rugged construction: Designed for use in demanding environments and resistant to environmental influences.
  • Application areas: Ideal for scientific research, industrial inspections and safety-related applications where high-precision infrared imaging is required.

The Teledyne FLIR 4216408 combines excellent optical performance with a rugged and user-friendly design to reliably meet demanding MWIR requirements.
