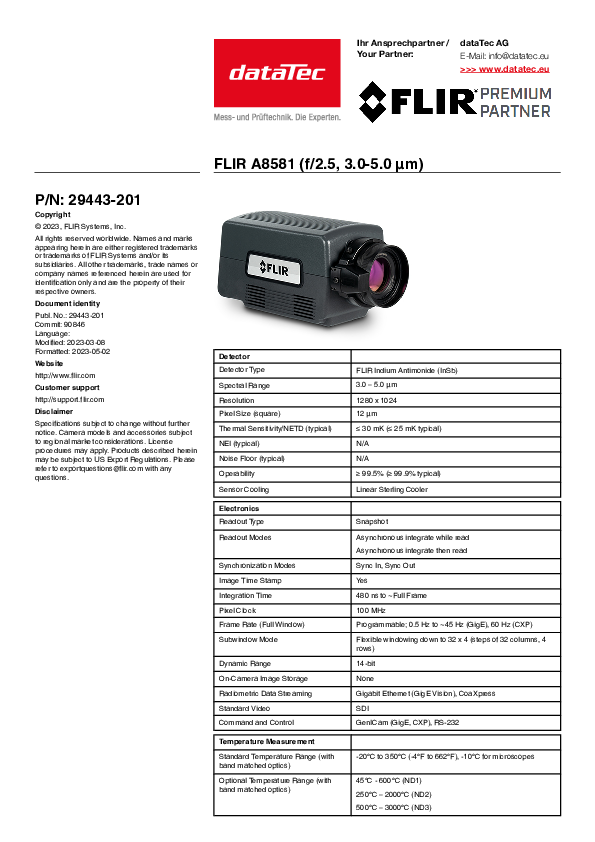

Teledyne FLIR A8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP

Manufacturer number: 29443-201

A8581
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product inquiries Request education-price
Highlights Description Related Articles

Teledyne FLIR A8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP.

  • Detektortyp: FLIR Indium-Antimonid (InSb)
  • Spektralbereich: 3,0 – 5,0 μm
  • Auflösung: 1.280 × 1.024
  • Pixelgröße:  12 μm
  • Thermische Empfindlichkeit/NEDT: ≤30 mK (≤25 mK typisch)
  • Sättigungskapazität: Verstärkung 0: 3,0 Me-, Verstärkung 1: 11,5 Me-
  • Betriebsfähigkeit: ≥99,5 % (≥99,9 % typisch)
  • Sensorkühlung: Linearer Sterlingkühler
  • Ausleseverfahren: Schnappschuss (Einzelbild)
  • Integrationszeit: 480 ns bis zum Vollbild
  • Pixeltakt: 100 MHz
  • Bildfrequenz (Vollbild): Programmierbar, bis zu ~45 Hz (GigE), 60 Hz (CXP)
  • Dynamikbereich: 14 Bit
  • Standard-Temperaturbereich: -20 °C bis 350 °C, -10 °C bis 350 °C für Mikroskope
  • Kamerablende F-Zahl: f/2.5
  • Maße (L × B × H) ohne Objektiv: 226 × 102 × 109 mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

A8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP

The Teledyne FLIR A8581 InSb thermal imaging camera provides high-resolution thermal imaging for industrial, military, research and development applications. With a 1.3 megapixel detector, this camera delivers sharp images and enables precise temperature measurements up to 3,000 °C through the integrated four-position warm filter wheel.

In addition to manual focus and microscope lens options, the A8581 also supports motorized focus lenses that allow for optimal focusing and maximum number of measurement pixels on the test object. Easy connectivity via Gigabit Ethernet or CoaXPress allows full camera control and data acquisition using FLIR Research Studio software, ensuring fast data analysis and processing.

Advanced features for optimal flexibility:

  • Automatic and remote focus functions of the motorized lenses
  • Integrated four-position filter wheel for effortless measurement of high temperatures
  • Advanced triggering and synchronization functions

Excellent resolution and measurement accuracy:

  • 1.3-megapixel thermal images with a resolution of 1280 × 1024 pixels
  • Thermal changes up to <30 mK detectable, measurement accuracy over ±2 %
  • Choice of lenses to maximize the number of measurement pixels
  • Precise temperature measurements on small objects with microscope lenses (spatial resolution up to 4 μm/pixel)

Easy data analysis, transfer and collaboration:

  • Control all camera parameters and stream fully radiometric thermal imaging data via Gigabit Ethernet and CoaXPress
  • Easy to use with FLIR Research Studio software
  • Cross-platform collaboration and global data sharing in FLIR Research Studio. collaboration and global data transmission in the user's preferred language

The Teledyne FLIR A8581 InSb thermal imaging camera is the ideal choice for precise and flexible thermal imaging applications.

Accessoires (14 products)

4216414
Teledyne FLIR
4216414

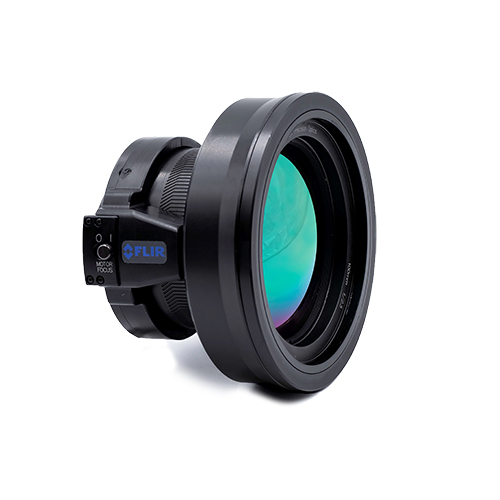

100 mm, 3.0-5.0 μm, f/2.5 MWIR motorized FPO lens bayonet
Delivery time upon request
On Request
4215423
Teledyne FLIR
4215423
17 mm 3-5 µm f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
4216408
Teledyne FLIR
4216408

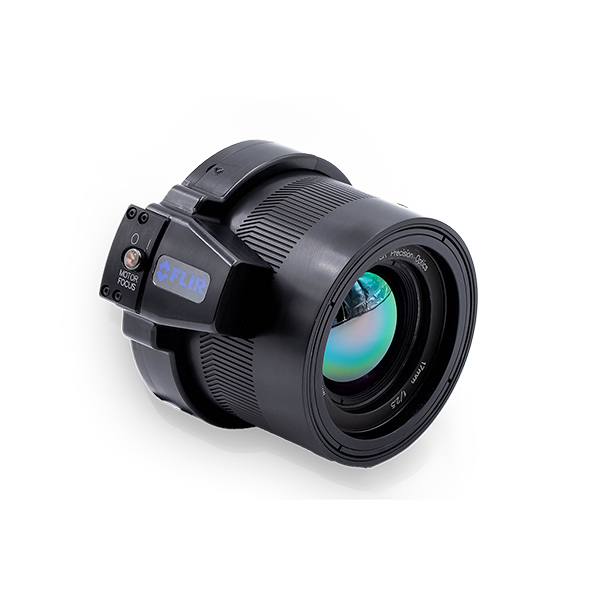

17 mm, 3.0-5.0 μm, f/2.5 MWIR FPO motorized lens bayonet
Delivery time upon request
On Request
4214995
Teledyne FLIR
4214995
1x Microscope, 3-5 μm, f/2.5 MWIR FPO manual objective bayonet
Delivery time upon request
On Request
4216416
Teledyne FLIR
4216416
200 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
4215504
Teledyne FLIR
4215504
200 mm, 3-5 μm, f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
4216410
Teledyne FLIR
4216410
25 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
4215425
Teledyne FLIR
4215425
25 mm 3-5 µm f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
4215502
Teledyne FLIR
4215502
100 mm, 3-5 µm, f/2.5 MWIR FPO manual bayonet lens
Delivery time upon request
On Request
4219797
Teledyne FLIR
4219797
3x microscope, 3-5 µm, f/2.5 MWIR FPO manual bayonet objective
Delivery time upon request
On Request
4216412
Teledyne FLIR
4216412

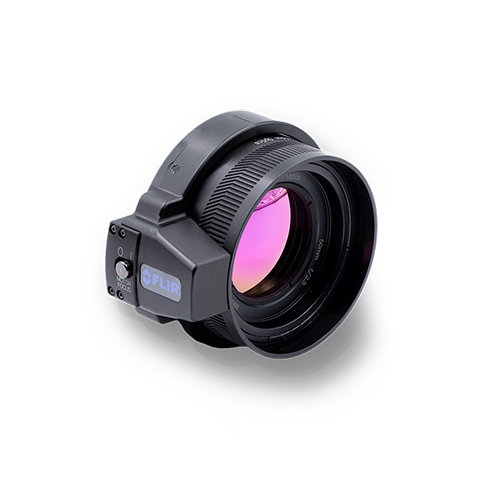

50 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
4215500
Teledyne FLIR
4215500

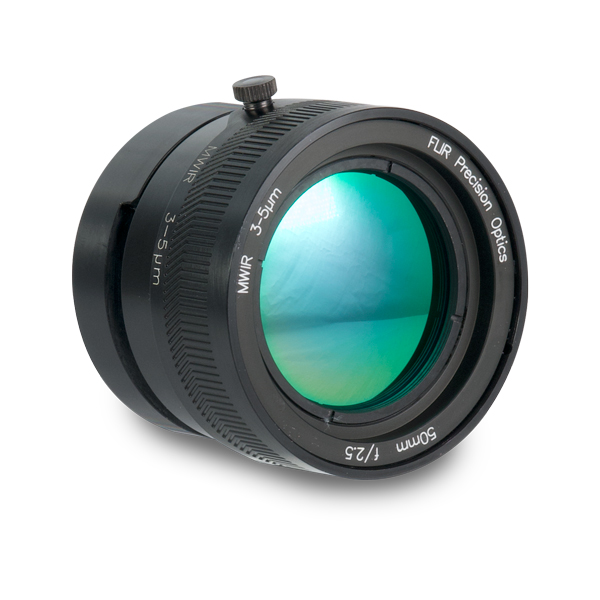

50 mm, 3-5 µm, f/2.5 MWIR FPO manual bayonet lens
Delivery time upon request
On Request
T300585
Teledyne FLIR
T300585
5x microscope, 3-5 μm, f/4 FPO manual objective bayonet
Delivery time upon request
On Request
T300385
Teledyne FLIR
T300385
Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens
Delivery time upon request
On Request

Alternate products (3 products)

A8580
Teledyne FLIR
A8580
InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
A8582
Teledyne FLIR
A8582
InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.0, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
A8583
Teledyne FLIR
A8583
InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.0, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
