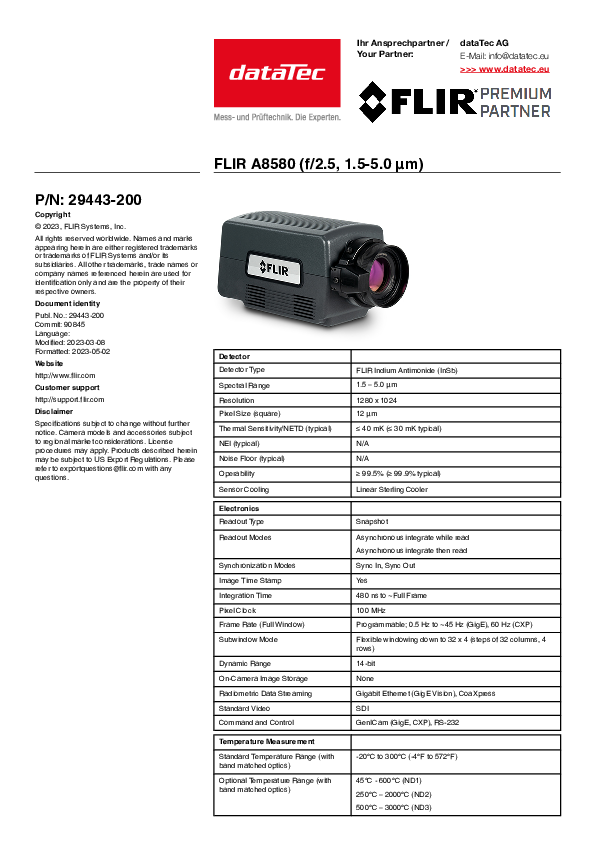

Teledyne FLIR A8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP

Manufacturer number: 29443-200

A8580
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product inquiries Request education-price
Highlights Description Related Articles

Teledyne FLIR A8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP.

  • Detektortyp: FLIR Indium-Antimonid (InSb)
  • Spektralbereich: 1,5 – 5,0 μm
  • Auflösung: 1.280 × 1.024
  • Pixelgröße:  12 μm
  • Thermische Empfindlichkeit/NEDT: ≤40 mK (≤30 mK typisch)
  • Sättigungskapazität: Verstärkung 0: 3,0 Me-, Verstärkung 1: 11,5 Me-
  • Betriebsfähigkeit: ≥99,5 % (≥99,9 % typisch)
  • Sensorkühlung: Linearer Sterlingkühler
  • Ausleseverfahren: Schnappschuss (Einzelbild)
  • Integrationszeit: 480 ns bis zum Vollbild
  • Pixeltakt: 100 MHz
  • Bildfrequenz (Vollbild): Programmierbar, bis zu ~45 Hz (GigE), 60 Hz (CXP)
  • Dynamikbereich: 14 Bit
  • Standard-Temperaturbereich: -20 °C bis 300 °C
  • Kamerablende F-Zahl: f/2.5
  • Maße (L × B × H) ohne Objektiv: 226 × 102 × 109 mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

A8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP

The Teledyne FLIR A8580 InSb thermal imaging camera delivers outstanding images for industrial, military and research and development applications. Equipped with a 1.3 megapixel detector, the camera offers crisp images and precise temperature measurements up to 3,000 °C thanks to the integrated four-position warm filter wheel.

In addition to manual focus and microscope lens options, the A8580 also supports motorized focus lenses, which enable optimal focusing and maximum number of measurement pixels on the test object, regardless of its size or distance. Easy connectivity via Gigabit Ethernet or CoaXPress allows full camera control and data acquisition using FLIR Research Studio software, ensuring fast data analysis and processing.

Advanced features for optimal flexibility:

  • Automatic and remote focus functions of the motorized lenses
  • Integrated four-position filter wheel for effortless measurement of high temperatures
  • Advanced triggering and synchronization functions

Excellent resolution and measurement accuracy:

  • 1.3-megapixel thermal images with a resolution of 1280 × 1024 pixels
  • Thermal changes up to <30 mK detectable, measurement accuracy over ±2 %
  • Choice of lenses to maximize the number of measurement pixels
  • Precise temperature measurements on small objects with microscope lenses (spatial resolution up to 4 μm/pixel)

Easy data analysis, transfer and collaboration:

  • Control all camera parameters and stream fully radiometric thermal imaging data via Gigabit Ethernet and CoaXPress
  • Easy to use with FLIR Research Studio software
  • Cross-platform collaboration and global data sharing in FLIR Research Studio. collaboration and global data transmission in the user's preferred language

The Teledyne FLIR A8580 InSb thermal imaging camera is the ideal choice for precise and flexible thermal imaging applications.

Accessoires (4 products)

4218540
Teledyne FLIR
4218540
100 mm f/2.5 manual FPO wide-angle lens
Delivery time upon request
On Request
4218538
Teledyne FLIR
4218538
25 mm, 1-5 µm, f/2.5 FPO Broadband FPO manual bayonet lens
Delivery time upon request
On Request
4218539
Teledyne FLIR
4218539
50 mm, 1-5 µm, f/2.5 broadband FPO manual bayonet lens
Delivery time upon request
On Request
T300585
Teledyne FLIR
T300585
5x microscope, 3-5 μm, f/4 FPO manual objective bayonet
Delivery time upon request
On Request

Alternate products (3 products)

A8581
Teledyne FLIR
A8581
InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
A8582
Teledyne FLIR
A8582
InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.0, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
A8583
Teledyne FLIR
A8583
InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.0, 44Hz GigE / 60Hz CXP
Delivery time upon request
On Request
