Teledyne FLIR A6783 | SLS thermal imaging camera (7.5µm (Lower), 10-11µm (Upper)), 640x512px, f4.0, GigE, 125Hz

Name: A6783 | SLS thermal imaging camera (7.5µm (Lower), 10-11µm (Upper)), 640x512px, f4.0, GigE, 125Hz
Brand: Teledyne FLIR
SKU: 29439-283
Availability: OutOfStock

Manufacturer number: 29439-283

Delivery time upon request

On Request

or choose one of the following options:

Product inquiries Request education-price

Teledyne FLIR A6783 | SLS thermal imaging camera (7.5µm (Lower), 10-11µm (Upper)), 640x512px, f4.0, GigE, 125Hz.

Auflösung: 640 × 512
Pixelgröße [Quadratisch]: 15 µm
Spektralbereich: 7,5 µm (unterer), 10–11 µm (oberer)
Detektortyp: Strained-Layer Superlattice
Blendenzahl Kamera: f/4,0
Dynamikbereich: 14 Bit
Thermische Auflösung (NETD): ≤45 mK (≤40 mK typisch)
Bildrate [Vollbild]: Programmierbar von 0,0015 Hz bis 125 Hz
Integrationszeit: 480 ns bis zum Vollbild
Fokus: Motorgetrieben (kompatibel w/ manuell)
Anzeigetyp: Schnappschuss (Einzelbild)
Betriebsfähigkeit: ≥98 % (≥99 % typisch)
Integrationszeit: 480 ns bis zum Vollbild
Objektivanschluss: FLIR FPO-M (Bajonettverschluss mit vier Haltelaschen, motorgetrieben)
Pixeltakt: 50 MHz
Zoom: Automatisch, variabel
Genauigkeit: ≤ 100°C ±2 °C Genauigkeit (±1 °C), > 100°C ±2 % des Ablesewerts (±1 % typisch)
Abmessungen [L × B × H] ohne Objektiv: 226 × 102 × 109 mm
Gewicht [ohne Objektiv]: 2,3 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

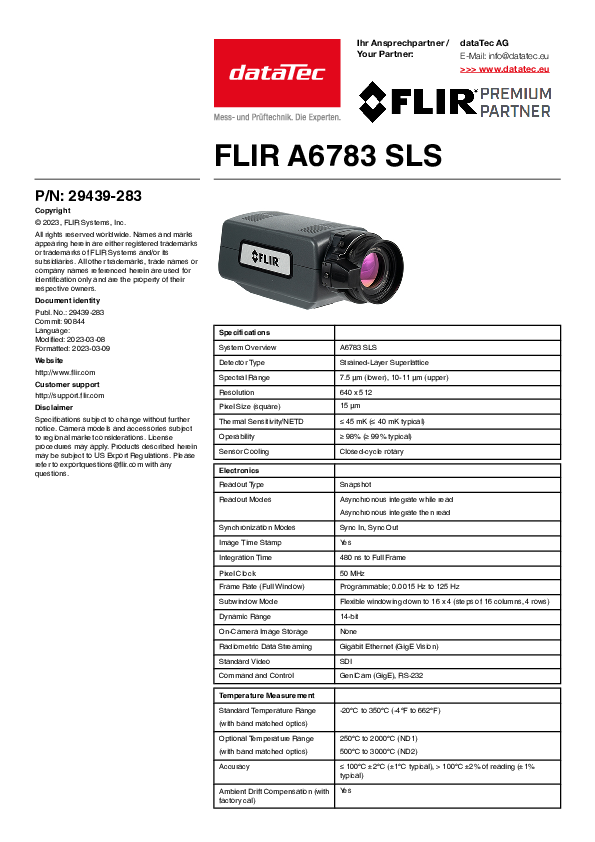

Datasheet

pdf | 0.29 MB

Description

A6783 | SLS thermal imaging camera (7.5µm (Lower), 10-11µm (Upper)), 640x512px, f4.0, GigE, 125Hz

An LWIR camera (long-wave infrared camera) is a special type of infrared camera that operates in the long-wave infrared range of the electromagnetic spectrum. This range covers wavelengths from around 7.5 to 12 micrometers (µm).

Here are some features and applications of the Teledyne A6783 SLS thermal imaging camera:

Specific wavelength sensitivity: This camera covers the long-wave infrared range from 7.5 µm (lower) to 11 µm (upper) and enables precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.
High resolution and image quality: With a resolution of 640 x 512 pixels, the camera provides detailed imaging and precise thermography required for accurate temperature measurements and monitoring.
High refresh rate: The camera supports a refresh rate of 125 Hz, which enables fast and accurate detection of thermal events. This is particularly useful in dynamic applications where fast response times are crucial.
High sensitivity: With its thermal sensitivity, the camera can detect the finest temperature differences, making it suitable for precise and demanding measurements and monitoring.
Flexible data management: The camera supports GigE (Gigabit Ethernet) for fast and reliable data transmission, which facilitates integration into various systems and enables comprehensive image analysis.
Rugged construction: The camera is designed for use in harsh environments and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR A6783 SLS thermal imaging camera is a powerful LWIR camera that is suitable for a wide range of applications in research, development and industrial monitoring due to its high resolution, fast frame rate and robust design.
