Teledyne FLIR X8583 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens

Manufacturer number: 29422-283

X8583
X8583
X8583
X8583
X8583
X8583
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X8583 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens.

  • Resolution: 1280 × 1024
  • Detector grid: 12 µm
  • Spectral range: 3.0-5.0 µm
  • Detector type: FLIR Indium Antimonide (InSb)
  • Camera aperture: f/4.1
  • Dynamic range: 14 bit
  • Thermal resolution (NETD): 30 mK typical
  • Frame rate [full frame]: Programmable: ~0.5 Hz to 181 Hz
  • Focus: motor-driven (compatible with manual)
  • Operating capability: ≥99.95% typical
  • Display type: snapshot (single frame)
  • Pixel clock: 355 MHz

Documents & Downloads

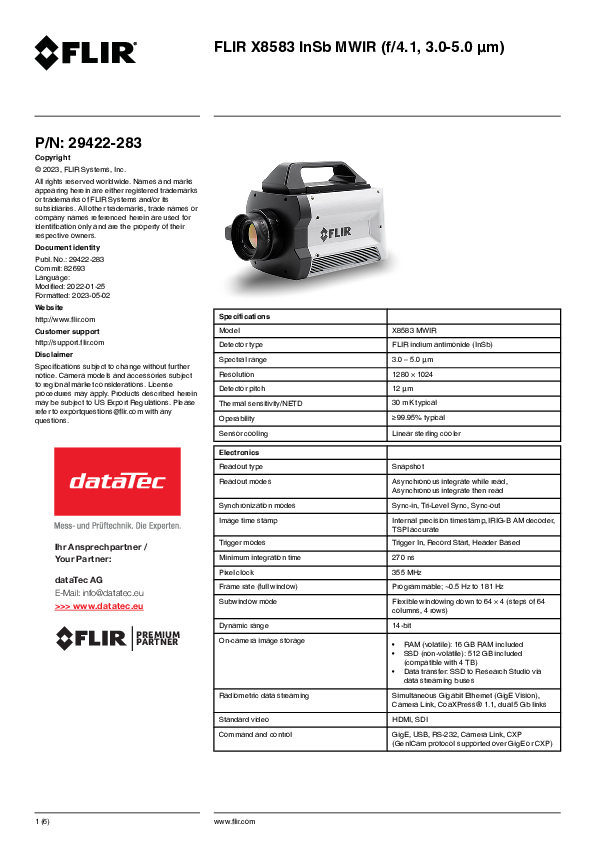

Datasheet
pdf | 0.38 MB

Description

X8583 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens

A MWIR camera (mid-wave infrared camera) is a special type of infrared camera that operates in the mid-wave infrared range of the electromagnetic spectrum. This range covers wavelengths from around 3.0 to 5.0 micrometers (µm).

Here are some features and applications of the Teledyne FLIR X8583 InSb thermal imaging camera:

  • Specific wavelength sensitivity: This camera is optimized for the mid-wave infrared range of 3.0 to 5.0 µm, enabling precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.

  • High resolution and image quality: With a resolution of 1280 x 1024 pixels, the camera provides detailed and high-resolution thermal images required for precise applications and comprehensive analysis.

  • High refresh rate: The camera offers a refresh rate of 181 Hz, which enables fast and accurate detection of thermal events. This is particularly useful for dynamic monitoring and analysis tasks.

  • High sensitivity: With a thermal sensitivity of 30 mK, the camera detects the finest temperature differences, making it suitable for demanding measurement and monitoring tasks.

  • Flexible lens management: The camera is supplied without a lens, which makes it possible to select and adapt a suitable lens for specific requirements.

  • Flexible data transmission: The camera supports modern data transmission standards that enable fast and reliable transmission of image data, which facilitates comprehensive analysis and integration into various systems.

  • Rugged design: The camera is designed for use in demanding environments and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR X8583 InSb thermal imaging camera is a powerful MWIR camera that is ideal for demanding applications in research, development and industrial monitoring due to its high resolution, fast frame rate and precise sensitivity.
