Teledyne FLIR X8582 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens

Manufacturer number: 29422-282

Teledyne FLIR X8582
Teledyne FLIR X8582
Teledyne FLIR X8582
Teledyne FLIR X8582
Teledyne FLIR X8582
Teledyne FLIR X8582
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X8582 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens.

  • Auflösung: 1280 × 1024
  • Detektorraster: 12 µm
  • Spektralbereich: 1,5–5,0 µm
  • Detektortyp: FLIR Indium-Antimonid (InSb)
  • Blendenzahl Kamera: f/4.1
  • Dynamikbereich: 14 Bit
  • Thermische Auflösung (NETD): 30 mK typisch
  • Bildrate [Vollbild]: Programmierbar: ~0,5 Hz bis 181 Hz
  • Fokus: Motorgetrieben (kompatibel mit manuell)
  • Anzeigetyp: Schnappschuss (Einzelbild)
  • Betriebsfähigkeit: ≥99,95 % typisch
  • Fokus: Motorgetrieben (kompatibel mit manuell)
  • Pixeltakt: 355 MHz

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

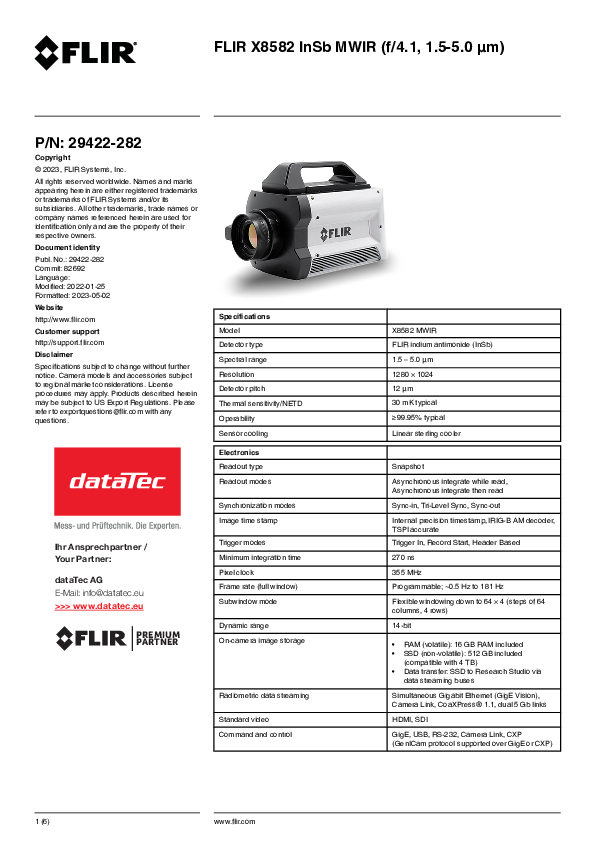

Datasheet
pdf | 0.38 MB

Description

X8582 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens

A MWIR camera (mid-wave infrared camera) is a special type of infrared camera that operates in the mid-wave infrared range of the electromagnetic spectrum. This range covers wavelengths from around 1.5 to 5.0 micrometers (µm).

Here are some features and applications of the Teledyne FLIR X8582 InSb thermal imaging camera:

  • Specific wavelength sensitivity: This camera covers the mid-wave infrared range from 1.5 to 5.0 µm and enables precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.

  • High resolution and image quality: With a resolution of 1280 x 1024 pixels, the camera delivers the high-resolution and detailed thermal images required for precise applications and comprehensive analyses.

  • High refresh rate: The camera offers a refresh rate of 181 Hz, which enables fast and accurate capture of thermal events and is particularly useful for dynamic monitoring and analysis tasks.

  • High sensitivity: With a thermal sensitivity of 30 mK, the camera detects the finest temperature differences, making it ideal for demanding measurement and monitoring tasks.

  • Flexible lens management: The camera is supplied without a lens, allowing you to select and customize a suitable lens according to your specific application.

  • Flexible data transmission: The camera supports modern data transmission standards that enable fast and reliable transmission of image data, facilitating comprehensive analysis and integration into various systems.

  • Rugged construction: The camera is designed for use in demanding environments and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR X8582 InSb thermal imaging camera is a powerful MWIR camera that is ideal for demanding applications in research, development and industrial monitoring due to its high resolution, fast frame rate and precise sensitivity.
