Teledyne FLIR X8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens

Manufacturer number: 29422-281

Teledyne FLIR X8581
Teledyne FLIR X8581
Teledyne FLIR X8581
Teledyne FLIR X8581
Teledyne FLIR X8581
Teledyne FLIR X8581
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens.

  • Auflösung: 1280 × 1024
  • Detektorraster: 12 µm
  • Spektralbereich: 3,0–5,0 µm
  • Detektortyp: FLIR Indium-Antimonid (InSb)
  • Blendenzahl Kamera: f/ 2,5
  • Dynamikbereich: 14 Bit
  • Thermische Auflösung (NETD): 30 mK typisch
  • Bildrate [Vollbild]: Programmierbar: ~0,5 Hz bis 181 Hz
  • Fokus: Motorgetrieben (kompatibel mit manuell)
  • Anzeigetyp: Schnappschuss (Einzelbild)
  • Betriebsfähigkeit: ≥99,95 % typisch
  • Pixeltakt: 355 MHz
  • Genauigkeit: ≤100°C: ±2°C (±1°C typisch), >100°C: ±2 % des Messwerts (±1 % typisch)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

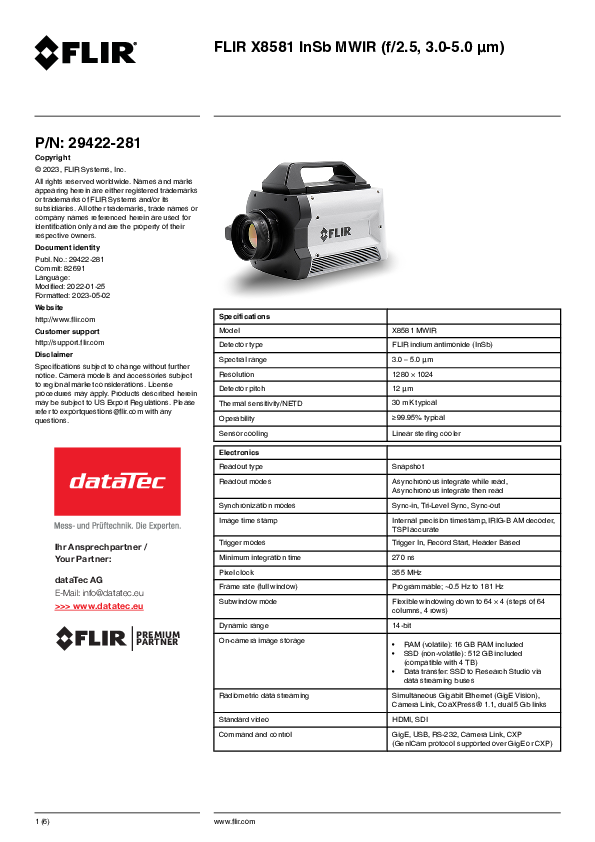

Datasheet
pdf | 0.38 MB

Description

X8581 | InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens

A MWIR camera (mid-wave infrared camera) is a special type of infrared camera that operates in the mid-wave infrared range of the electromagnetic spectrum. This range covers wavelengths from around 3.0 to 5.0 micrometers (µm).

Here are some features and applications of the Teledyne FLIR X8581 InSb thermal imaging camera:

  • Specific wavelength sensitivity: This camera covers the mid-wave infrared range from 3.0 to 5.0 µm and enables precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.

  • High resolution and image quality: With a resolution of 1280 x 1024 pixels, the camera provides detailed and high-resolution thermal images that are suitable for applications with high precision and image quality requirements.

  • High frame rate: The camera offers a frame rate of 181 Hz, which enables fast and precise detection of thermal events. This high frame rate is particularly useful for dynamic monitoring and analysis tasks.

  • High sensitivity: With a thermal sensitivity of 30 mK, the camera can detect the finest temperature differences, making it ideal for demanding measurement and monitoring applications.

  • Flexible lens management: The camera is supplied without a lens, allowing you to select and customize a suitable lens according to your specific application.

  • Flexible data transmission: The camera supports modern data transmission standards that enable fast and reliable transmission of image data, facilitating comprehensive analysis and integration into various systems.

  • Rugged construction: The camera is designed for use in demanding conditions and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR X8581 InSb thermal imaging camera is a powerful MWIR camera that is ideally suited for demanding applications in research, development and industrial monitoring thanks to its high resolution, fast frame rate and precise sensitivity.

Accessoires (14 products )
Teledyne FLIR 4216414
100 mm, 3.0-5.0 μm, f/2.5 MWIR motorized FPO lens bayonet
Delivery time upon request
On Request
Teledyne FLIR 4215423
17 mm 3-5 µm f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
Teledyne FLIR 4216408
17 mm, 3.0-5.0 μm, f/2.5 MWIR FPO motorized lens bayonet
Delivery time upon request
On Request
Teledyne FLIR 4214995
1x Microscope, 3-5 μm, f/2.5 MWIR FPO manual objective bayonet
Delivery time upon request
On Request
Teledyne FLIR 4216416
200 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
Teledyne FLIR 4215504
200 mm, 3-5 μm, f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
Teledyne FLIR 4216410
25 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
Teledyne FLIR 4215425
25 mm 3-5 µm f/2.5 MWIR FPO manual lens bayonet
Delivery time upon request
On Request
Teledyne FLIR 4215502
100 mm, 3-5 µm, f/2.5 MWIR FPO manual bayonet lens
Delivery time upon request
On Request
Teledyne FLIR 4219797
3x microscope, 3-5 µm, f/2.5 MWIR FPO manual bayonet objective
Delivery time upon request
On Request
Teledyne FLIR 4216412
50 mm, 3.0-5.0 µm, f/2.5 MWIR motorized FPO bayonet lens
Delivery time upon request
On Request
Teledyne FLIR 4215500
50 mm, 3-5 µm, f/2.5 MWIR FPO manual bayonet lens
Delivery time upon request
On Request
Teledyne FLIR T300585
5x microscope, 3-5 μm, f/4 FPO manual objective bayonet
Delivery time upon request
On Request
Teledyne FLIR T300385
Teledyne FLIR T300385
Macro 3-5 micrometer, f/2.5 MWIR FPO Manual bayonet lens
Delivery time upon request
On Request

Alternate products (3 products )

Teledyne FLIR X8580
Teledyne FLIR X8580
InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens
Delivery time upon request
On Request
Teledyne FLIR X8582
Teledyne FLIR X8582
InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens
Delivery time upon request
On Request
Teledyne FLIR X8583
Teledyne FLIR X8583
InSb thermal imaging camera (3.0 - 5.0µm), 1280x1024px, f/4.1, 181Hz, 30mK, without lens
Delivery time upon request
On Request

About the Manufacturer

Teledyne FLIR
Teledyne FLIR
Teledyne FLIR is the world's largest manufacturer of thermal imaging cameras and thermographic instruments. Teledyne FLIR covers an incredibly wide range and has the optimal thermal imaging camera for every application, whether construction, research and development or industrial manufacturing. Since 2010 dataTec is Platinum Distributor of FLIR and, of course, now of Teledyne FLIR.
