Teledyne FLIR X8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens

Manufacturer number: 29422-280

Teledyne FLIR X8580
Teledyne FLIR X8580
Teledyne FLIR X8580
Teledyne FLIR X8580
Teledyne FLIR X8580
Teledyne FLIR X8580
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens.

  • Auflösung: 1280 × 1024
  • Detektorraster: 12 µm
  • Spektralbereich: 1,5–5,0 µm
  • Detektortyp: FLIR Indium-Antimonid (InSb)
  • Blendenzahl Kamera: f/ 2,5
  • Dynamikbereich: 14 Bit
  • Thermische Auflösung (NETD): 30 mK typisch
  • Bildrate [Vollbild]: Programmierbar: ~0,5 Hz bis 181 Hz
  • Fokus: Motorgetrieben (kompatibel mit manuell)
  • Anzeigetyp: Schnappschuss (Einzelbild)
  • Betriebsfähigkeit: ≥99,95 % typisch
  • Pixeltakt: 355 MHz
  • Sensorkühlung: Linearer Sterlingkühler
  • Genauigkeit: ≤100°C: ±2°C (±1°C typisch), >100°C: ±2 % des Messwerts (±1 % typisch)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

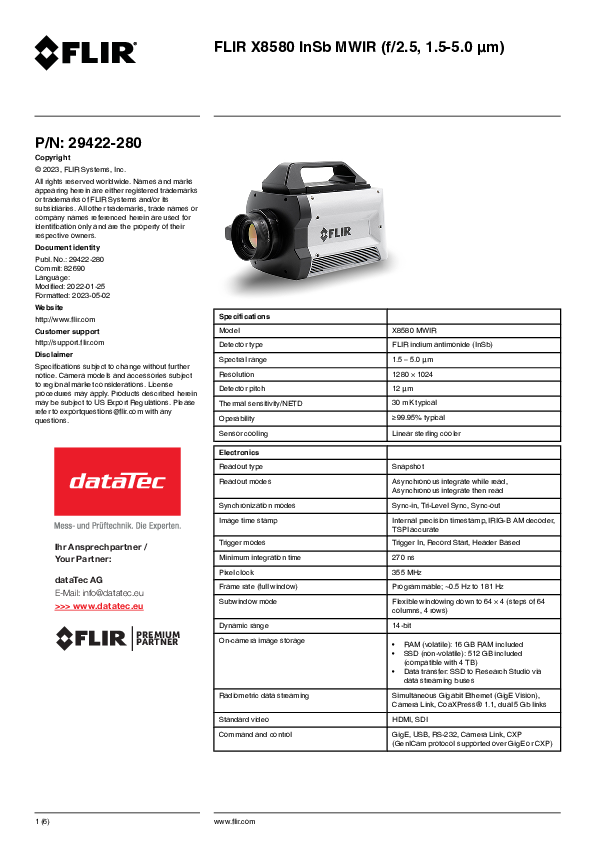

Datasheet
pdf | 0.38 MB

Description

X8580 | InSb thermal imaging camera (1.5 - 5.0µm), 1280x1024px, f/2.5, 181Hz, 30mK, without lens

A MWIR camera (mid-wave infrared camera) is a special type of infrared camera that operates in the mid-wave infrared range of the electromagnetic spectrum. This range covers wavelengths from around 1.5 to 5.0 micrometers (µm).

Here are some features and applications of the Teledyne FLIR X8580 InSb thermal imaging camera:

  • Specific wavelength sensitivity: This camera covers the mid-wave infrared range from 1.5 to 5.0 µm and enables precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.

  • High resolution and image quality: With a resolution of 1280 x 1024 pixels, the camera provides detailed and high-resolution thermal images, ideal for applications that require the highest precision and image quality.

  • High frame rate: The camera offers a frame rate of 181 Hz, which enables fast and precise detection of thermal events. This high frame rate is particularly useful for dynamic and fast monitoring tasks.

  • High sensitivity: With a thermal sensitivity of 30 mK, the camera can detect the finest temperature differences, making it suitable for demanding measurement and monitoring applications.

  • Flexible lens management: The camera is supplied without a lens, which enables the selection and adaptation of a suitable lens for specific applications.

  • Flexible data transmission: The camera supports modern data transmission standards that enable fast and reliable transmission of image data, facilitating comprehensive analysis and integration into various systems.

  • Rugged design: The camera is designed for use in demanding environments and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR X8580 InSb thermal imaging camera is a powerful MWIR camera that is suitable for demanding applications in research, development and industrial monitoring due to its high resolution, fast frame rate and precise sensitivity.
