Teledyne FLIR X6983 | SLS thermal imaging camera (7.5 - 12µm), 640x512px, f/4.1, 1004Hz, 40mK, without lens

Manufacturer number: 29421-283

X6983
X6983
X6983
X6983
X6983
X6983
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X6983 | SLS thermal imaging camera (7.5 - 12µm), 640x512px, f/4.1, 1004Hz, 40mK, without lens

  • Resolution: 640 × 512
  • Detector grid: 25 µm
  • Spectral range: 7.5 µm (lower), 11.5-12.5 µm (upper)
  • Detector type: Strained Layer Superlattice (SLS)
  • Camera aperture: f/4.1
  • Dynamic range: 14 bit
  • Thermal resolution (NETD): 40 mK typical
  • Frame rate (full frame): Programmable: 0.0015 Hz to 1004 Hz
  • Integration time: Programmable: 270 ns to ~full frame
  • Display type: snapshot (single frame)
  • Operating capability: 99% typical
  • Focus: motor-driven (compatible m./manual)
  • Pixel clock: 355 MHz
  • Accuracy: ≤100°C: ±2°C (±1°C typical), >100°C: ±2% of the measured value (±1% typical)

Documents & Downloads

Overview
pdf | 0.75 MB

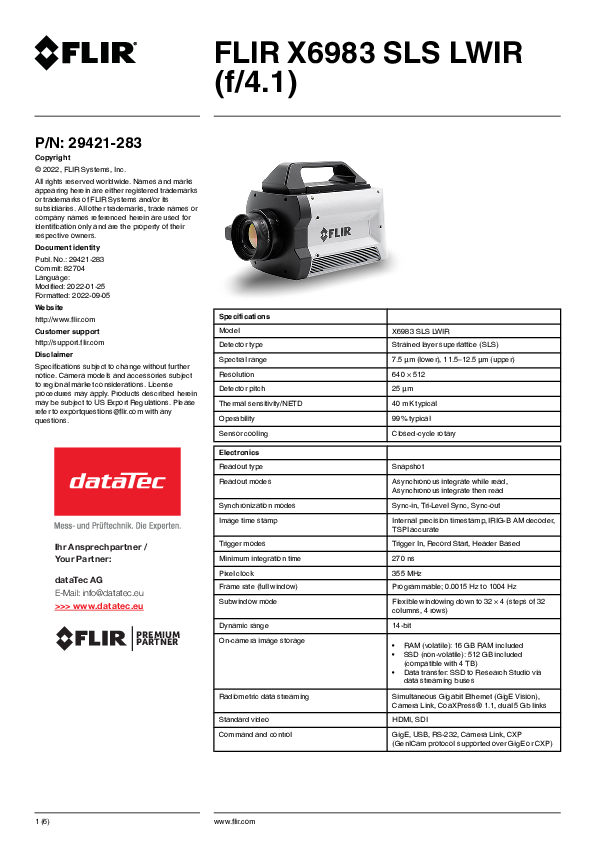

Datasheet
pdf | 0.38 MB

Description

X6983 | SLS thermal imaging camera (7.5 - 12µm), 640x512px, f/4.1, 1004Hz, 40mK, without lens

An LWIR camera (long-wave infrared camera) is a special type of infrared camera that operates in the long-wave infrared range of the electromagnetic spectrum. This range covers wavelengths of around 7.5 to 12 micrometers (µm).

Here are some features and applications of the Teledyne FLIR X6983 SLS thermal imaging camera:

  • Specific wavelength sensitivity: This camera is optimized for the long-wave infrared range (7.5-12 µm) and enables precise detection and imaging of temperature differences and thermal radiations that are not visible in visible light.

  • High resolution and image quality: With a resolution of 640 x 512 pixels, the camera offers a high level of detail and image quality. This makes it ideal for applications that require detailed and clear thermal images.

  • High refresh rate: The camera has a refresh rate of 1004 Hz, which enables fast and accurate capture of thermal events. This feature is particularly useful in professional environments where fast response times are required.

  • High sensitivity: With a thermal sensitivity of 40 mK (millikelvin), the camera can detect the finest temperature differences, which is crucial for applications that require the highest precision.

  • Flexibility in lens selection: The camera is supplied without a lens, allowing flexible customization to achieve optimal results for specific applications. This offers the advantage of selecting and changing the lens depending on the application.

  • Extended dynamic range: The FLIR X6983 SLS offers an extended dynamic range, making it ideal for applications that require high precision and adaptability.

  • Fast data transfer: This camera supports fast data transfer options, making it ideal for high-speed data transfer and comprehensive image analysis.

  • Rugged construction: The camera is robust and durable, so it works reliably even under demanding conditions. It is designed for use in harsh environments and can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne FLIR X6983 SLS thermal imaging camera is a powerful component for LWIR cameras that can be used in many different areas due to its special wavelength sensitivity and high-quality imaging capabilities.

Alternate products (1 products)

Alternate products (1 product)

X6981
Teledyne FLIR
X6981
SLS thermal imaging camera (7.5 - 12µm), 640x512px, f/2.5, 1004Hz, 40mK, without lens
Delivery time upon request
On Request

About the Manufacturer

Teledyne FLIR
Teledyne FLIR
Teledyne FLIR is the world's largest manufacturer of thermal imaging cameras and thermographic instruments. Teledyne FLIR covers an incredibly wide range and has the optimal thermal imaging camera for every application, whether construction, research and development or industrial manufacturing. Since 2010 dataTec is Platinum Distributor of FLIR and, of course, now of Teledyne FLIR.
