Teledyne FLIR X6800sc | InSb thermal imaging camera (1.5 - 5.0µm), 640x512px, f/2.5, 502Hz, 20mK, without lens

Manufacturer number: 29420-200

X6800sc
X6800sc
X6800sc
X6800sc
X6800sc
X6800sc
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Teledyne FLIR X6800sc | InSb thermal imaging camera (1.5 - 5.0µm), 640x512px, f/2.5, 502Hz, 20mK, without lens.

  • Resolution: 640 × 512
  • Detector grid: 25 µm
  • Spectral range: 1.5 - 5.0 µm
  • Detector type: FLIR Indium Antimonide (InSb)
  • Camera aperture: f/2.5
  • Dynamic range: 14 bit
  • Thermal resolution (NETD): <20 mK normal
  • Frame rate [full frame]: Programmable; 0.0015 Hz to 502 Hz
  • Integration time: 270 ns to ~full frame
  • Focus: Manual
  • Display: Snapshot (single frame)
  • Operational capability: > 99.8% (> 99.95% normal)
  • Pixel Clock: 355 MHz
  • Dimensions [L × W × H] without lens: 249 × 157 × 147 mm (9.8 × 6.2 × 5.8 in)
  • Weight (without lens and with handle): 6.35 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

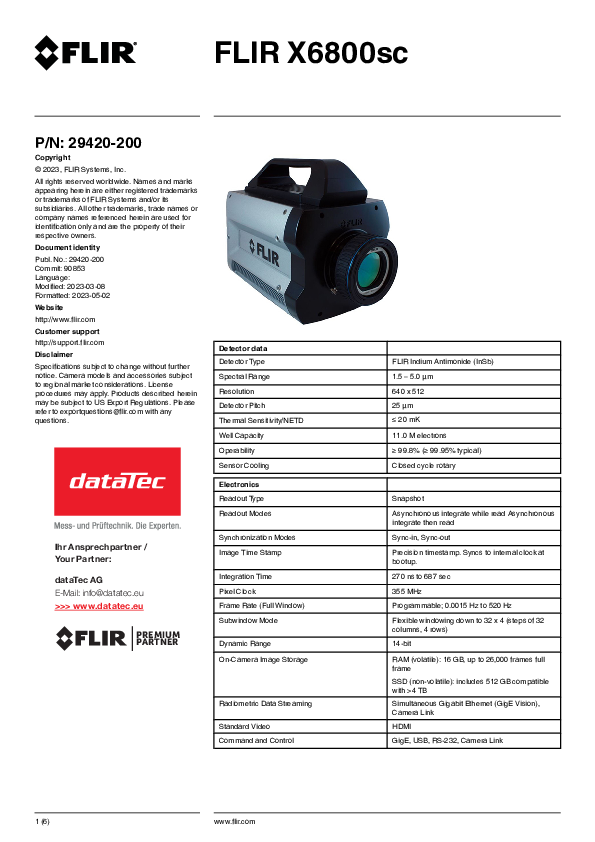

Datasheet
pdf | 0.37 MB

Description

X6800sc | InSb thermal imaging camera (1.5 - 5.0µm), 640x512px, f/2.5, 502Hz, 20mK, without lens

The Teledyne FLIR X6800sc InSb thermal imaging camera is a state-of-the-art MWIR camera that operates in the 1.5 to 5.0 micrometer range. It offers a variety of features and benefits for demanding applications:

  • Wavelength range: This camera is optimized for the mid-wave infrared range from 1.5 to 5.0 µm and enables precise detection of temperature differences and thermal radiation that are invisible to the naked eye.

  • Image quality: With a resolution of 640 x 512 pixels, the camera delivers razor-sharp and detailed thermal images that are ideal for precise analysis and monitoring.

  • Image refresh rate: The camera offers a high refresh rate of 502 Hz, which enables rapid capture and analysis of thermal events, which is particularly beneficial for dynamic scenarios.

  • Thermal sensitivity: With a sensitivity of 20 mK, the camera detects even the smallest temperature differences, making it a powerful tool for precise measurements.

  • Lens options: The camera is supplied without a lens, giving you the choice of a suitable lens according to your specific requirements.

  • Data transmission: Modern data transmission standards ensure fast and reliable transmission of image data, enabling smooth integration into various systems.

  • Ruggedness: The camera is designed for use in demanding conditions and offers a robust construction that can withstand extreme temperatures and mechanical stress.

In summary, the Teledyne X6800sc InSb thermal imaging camera offers outstanding performance and flexibility for demanding research, development and monitoring applications.

Accessoires (4 products)

4218540
Teledyne FLIR
4218540
100 mm f/2.5 manual FPO wide-angle lens
Delivery time upon request
On Request
4218538
Teledyne FLIR
4218538
25 mm, 1-5 µm, f/2.5 FPO Broadband FPO manual bayonet lens
Delivery time upon request
On Request
4218539
Teledyne FLIR
4218539
50 mm, 1-5 µm, f/2.5 broadband FPO manual bayonet lens
Delivery time upon request
On Request
T300585
Teledyne FLIR
T300585
5x microscope, 3-5 μm, f/4 FPO manual objective bayonet
Delivery time upon request
On Request

Alternate products (3 products)

X6801sc
Teledyne FLIR
X6801sc
InSb thermal imaging camera (3.0 - 5.0µm), 640x512px, f/2.5, 502Hz, 20mK, without lens
Delivery time upon request
On Request
X6802sc
Teledyne FLIR
X6802sc
InSb thermal imaging camera (1.5 - 5.0µm), 640x512px, f/4.1, 502Hz, 20mK, without lens
Delivery time upon request
On Request
X6803sc
Teledyne FLIR
X6803sc
InSb thermal imaging camera (3.0 - 5.0µm), 640x512px, f/4.1, 502Hz, 20mK, without lens
Delivery time upon request
On Request
