Tektronix RSA507A | Portable Real Time USB Signal Analyzer, 9 kHz ... 7.5 GHz

Manufacturer number: RSA507A

Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Tektronix RSA507A
Delivery time upon request

€17,100.00

plus VAT. €20,349.00 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Tektronix RSA507A | Portable USB real-time spectrum analyzer, frequency range 9 kHz… 7.5 GHz, acquisition bandwidth 40 MHz, GPS / GLONASS / Beidou standard receiver.

  • USB real-time spectrum analyzer for connection to your laptop / PC
  • Status display LED, two-color red / green
  • Frequency range: 9 kHz… 7.5 GHz (optional up to 18 GHz RSA518A)
  • RF input impedance: 50 Ω
  • Acquisition bandwidth: 40 MHz
  • minimum signal duration: 100 µs with 100% detection probability
  • Environmental, shock and vibration specifications according to MIL-STD-28800 class 2 for use in harsh conditions
  • Dimensions (H x W x D): 67.3 mm x 299.1 mm x 271.3 mm
  • Weight: 2.99 kg with battery

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

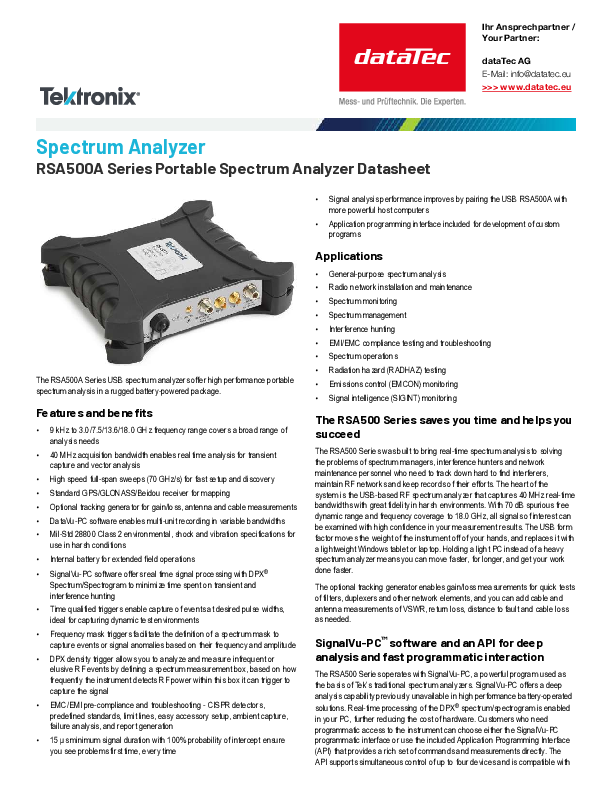

Datasheet
pdf | 1.57 MB

Description

RSA507A | Portable Real Time USB Signal Analyzer, 9 kHz ... 7.5 GHz

The Tektronix RSA500 Series Spectrum Analyzers are designed to help spectrum managers, troubleshooters, and network managers locate sources of interference, keep RF networks operational, and demonstrate their activities to help solve problems using real-time spectrum analysis.

The heart of the system is a USB RF spectrum analyzer, which detects bandwidths of 40 MHz very precisely even under harsh environmental conditions. With a dynamic range of 70 dB and an upper frequency limit of up to 18 GHz (3 GHZ: RSA503A, 7.5 GHz: RSA507A, 13.6 GHz: RSA513A, 18 GHz: RSA518A), you can examine all signals of interest and trust the measurement results with absolute confidence .

Thanks to the USB form factor, you no longer have to hold a heavy device, just a light Windows tablet or notebook computer. Holding a light PC instead of a heavy spectrum analyzer means you can move faster for longer and get your work done faster.

The optional tracking generator enables gain and loss measurements for quick checking of filters, duplexers and other network components. And you can take cable and antenna measurements of standing wave ratio, reflection loss, distance to defect and cable loss as required.

Product features:

  • Wide frequency range from 9 kHz to 3.0 (RSA503A) / 7.5 GHz (RSA507A) / 13.6 GHz (RSA513A9) / 18 GHz (RSA518A) for a wide range of analysis requirements
  • 40 MHz acquisition bandwidth enables real-time analysis for transient acquisition and vector analysis
  • GPS / GLONASS / Beidou standard receiver for map display
  • optional tracking generator for gain / loss, antenna and cable measurements
  • Streaming capture can be used to record and play back long-term events
  • Environmental, shock and vibration specifications according to MIL-STD-28800 class 2 for use in harsh conditions
  • Integrated battery to extend the usage time on site
  • The SignalVu-PC software offers real-time signal processing with DPX spectrum / spectrogram so that you can keep the time to look for transient and other disturbances to a minimum.
  • A minimum signal duration of 100 μs leads to a detection probability of 100%, so that you can identify problems from the first signal detection.
  • Application programming interface for the development of user-defined programs
  • Accessories, which include tablet computers, calibration kits, adapters and phase-stable cables, enable the compilation of complete solutions for field use for troubleshooting and transmitter maintenance.

Lieferumfang

  • RSA507A
  • Transport case
  • Battery pack + charger
  • USB 3.0 cable
  • SignalVu-PC software on USB stick
  • documentation
