Tektronix MSO44B | Mixed signal oscilloscope, 4 channel, basic device, 200 MHz - 1.5 GHz bandwidth, MSO4B series

Manufacturer number: MSO44B

Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
Tektronix MSO44B
9 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Tektronix MSO44B | Mixed signal oscilloscope, 4 channels (FlexChannel up to 32 digital channels), basic device, 31.25 Mpoints acquisition memory, 6.25 GSa/s, 200 MHz - 1.5 GHz bandwidth.

  • FlexChannel technology: 4 analog or up to 32 digital channels
  • Analog bandwidth: 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz (optional)
  • Impedance: 50Ω ± 1%, 1MΩ ± 1% with 13.0pF ± 1.5pF
  • ADC resolution: 12 bit, high resolution mode: 16 bit
  • Real-time sampling rate: up to 6.25 GSa/s on each channel
  • Signal acquisition rate: > 500,000 signals/s
  • Acquisition memory: 31.25 million points, optional: 62.5 million points
  • Integrated digital voltmeter: 4 digits
  • Integrated trigger frequency counter: 8 digits
  • Optional arbitrary signal and function generator: 13 predefined signal types, up to 50 MHz signal generation (arbitrary, sine, square, pulse, ramp, triangle, DC level, Gaussian, Lorentz, exponential rise/fall, sin(x)/x, white noise , Haversinus, cardiac)
  • Acquisition modes: Sample, Peak Capture, Average, Envelope, Hi-Res, FastAcq, Roll Mode, FastFrame
  • Trigger Types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup + Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual
  • Optional serial bus triggering, decoding and analysis: I2C, SPI, I3C, RS-232/422/485/UART, SPMI, CAN, CAN FD, LIN, FlexRay, SENT, USB 2.0, Ethernet, I2S, LJ, RJ, TDM , MIL-STD-1553, ARINC 429, Spacewire, 8B/10B, NRZ
  • Cursor types: waveform, V/H/V&H bars
  • 36 automatic measurements, can be displayed at the same time: including amplitude, time domain measurement, measurement statistics, reference level, gate control
  • Optional analysis functions: spectrum, mask test , power analysis
  • Plots: time trend, histogram, spectrum
  • Mathematics functions: arithmetic basic signal calculation, FFT, advanced editor
  • 13.3-inch LCD touchscreen with HD resolution (33.8 cm screen diagonal)
  • Interfaces: USB 2.0 Host, USB 3.0 Host, USB 2.0 Device (6 ports); LAN (10/100/1000 Base-T Ethernet); HDMI
  • Power supply: 100 to 240 V AC, 50/60 and 400 Hz
  • Dimensions: W 450 × H 249 × D 155 mm
  • Weight: 7.3kg
  • Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Brochure
pdf | 2.04 MB

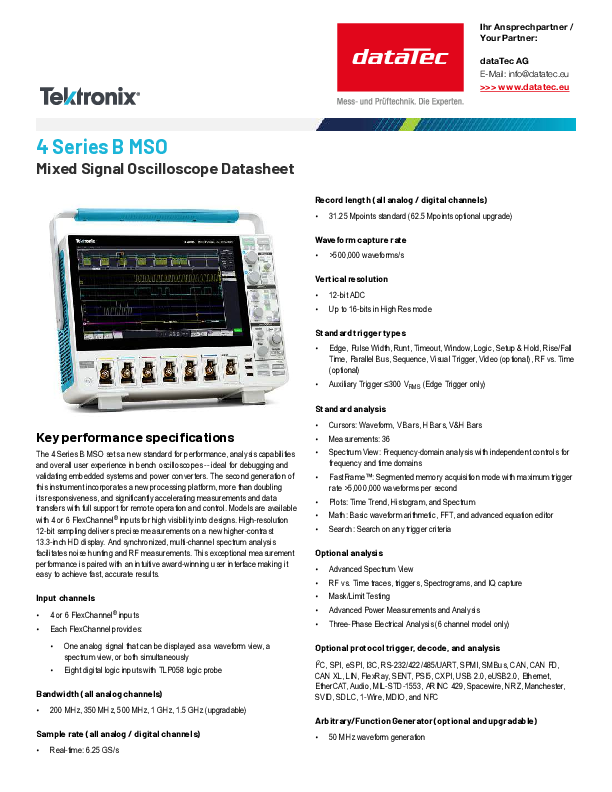

Datasheet
pdf | 1.71 MB

Description

MSO44B | Mixed signal oscilloscope, 4 channel, basic device, 200 MHz - 1.5 GHz bandwidth, MSO4B series

The Tektronix MSO 4B Series oscilloscopes combine performance and analysis capabilities to address most technical challenges with an industry-leading intuitive user interface.

The Tektronix MSO 4B series offers devices with 4 or 6 analog channels. The oscilloscopes have a resolution of 12-bit ADCs (16 bits in high-res mode), which can be expanded to up to 48 digital logic channels (MSO46B) thanks to FlexChannel technology with a logic probe. Analog signals can be displayed as a curve or as a frequency spectrum - both views can also be displayed simultaneously. This makes oscilloscope-based analysis in the frequency domain as easy as with a spectrum analyzer, while maintaining the time reference to other signal events.

The digital channels have the same high real-time sampling rate of up to 6.25 GSa/s for high-precision timing resolutions and the same long recording length (up to 62.5 million points) for long-term acquisitions as the analog channels. The large 13.3-inch color display with touch function and full HD resolution allows you to clearly display many signals and analyzes at the same time. The display of the MSO 4B models has a significantly improved viewing spectrum and a noticeably increased contrast compared to the previous models. This noticeably improves the visibility of the data shown on the display.

You receive the oscilloscopes with bandwidths from 200 MHz to 1.5 GHz, which you can also retrofit later.

Powerful analysis and visualization tools such as FastFrame segmented storage, measurement and waveform histograms, and visual triggering are standard. It is available with an integrated 50 MHz arbitrary/function generator and decoding for over 25 serial protocols. Power analysis packages are also available that enable repeatable measurements on power supplies and 3-phase power converters.

The new "B" version of the Tektronix 4 Series features a significantly faster processor system that accelerates analysis, control and data transfer.
