Tektronix DPS75004SX | Oszilloskop-Set, 2x DPO75002SX, 2-Kanal/50 GHz/200 GSa/s oder 4-Kanal/33 GHz/100 GSa/s

Manufacturer number: DPS75004SX

Tektronix DPS75004SX
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Tektronix DPS75004SX | Oszilloskop-System, Set bestehend aus 2x DPO75002SX Digital-Phosphor-Oszilloskop und UltraSync-Verbindungskabel, 2 Analogkanäle / 50 GHz / 200 GSa/s oder 4 Kanäle / 33 GHz / 100 GSa/s, ATI-Technologie (Asynchronous Time Interleaving).

  • Oszilloskop-Set bestehend aus 2 Geräten DPO75002SX und UltraSync-Kabel
    • Anzahl Analogkanäle und Bandbreite: 4 Kanäle / 33 GHz oder 2 Kanäle / 50 GHz (ATI, Asynchronous Time Interleaving)
    • Abtastrate: 100 GSa/s oder 200 GSa/s (ATI)
    • Zeitauflösung: 10 ps (100 GSa/s), 5 ps (200 GSa/s)
    • Signal-Rausch-Verhältnis: -95 dB (ATI-Kanal)
    • Vertikale Auflösung: 8 bit
    • Signal-Erfassungsrate: >300.000 Signale/s (im Erfassungsmodus FastAcq)
    • Erfassungsspeicher: 62,5 M Punkte; optional: 125 M / 250 M / 1 G Punkte
    • Erfassungsmodi: Abtastung, Peak-Werterfassung, Mittelwert, Hüllkurve, Hi-Res, FastAcq, Rollmodus, FastFrame, Signaldatenbank
    • Triggerarten: Flanke, Glitch, Pulsbreite, Runt, seriell (8b10b), Fenster, Zeitüberschreitung, Periode/Frequenz, Hüllkurve, Übergang, Muster, Setup + Hold, Status; optional: serielle Busse 8b/10b, 64b/66b, I2C, SPI, PCIe, USB, CAN, LIN FlexRay, RS-232/422/485/UART, MIL-STD-1553, 10/100BASE-T-Ethernet
    • 54 automatische Messungen, wovon 8 jederzeit auf dem Display angezeigt werden können: inkl. Messstatistik, benutzerdefinierbare Bezugspegel, Messung innerhalb von Gates
    • Optionale Analysefunktionen: erweiterte Jitter-, Augendiagramm- und Timing-Analyse
    • Mathematikfunktionen: Mittelwert, Invertieren, Integrieren, Differenzieren, Quadratwurzel, Exponentialfunktionen, Log mit Basis 10, Log mit Basis e, Absolutwert, Aufrunden, Abrunden, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh
    • 6,5-Zoll-LCD-Farbdisplay mit Touchfunktion
    • Schnittstellen pro Geräteeinheit: 6x USB 2.0 / 2x USB 3.0 / USB (Gerät), LAN, PCIe für Multi-Gerätekonfiguration, DisplayPort, DVI/VGA für externen Monitor
    • Stromversorgung: 100 bis 240 V AC, 50/60 und 400 Hz
    • Abmessungen: B 452 × H 157 × T 553 mm (pro Geräteeinheit)
    • Gewicht: 19 kg (pro Geräteeinheit)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

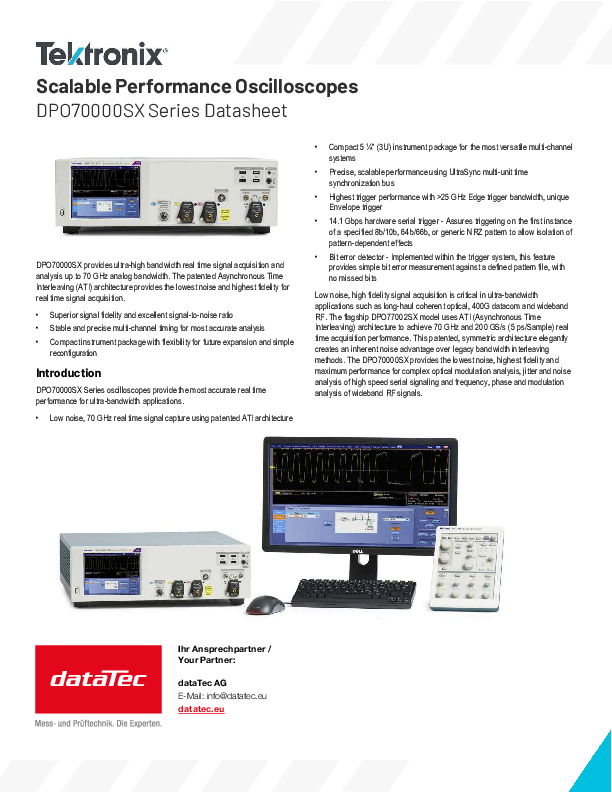

Datasheet
pdf | 3.91 MB

Description

DPS75004SX | Oszilloskop-Set, 2x DPO75002SX, 2-Kanal/50 GHz/200 GSa/s oder 4-Kanal/33 GHz/100 GSa/s

Die Oszilloskope der Serie DPO70000SX bieten Ihnen Echtzeit-Signalerfassung mit ultrahohen Bandbreiten bis 70 GHz. Die patentierte High Performance ATI-Technologie (Asynchronous Time Interleaving) ermöglicht exzellente Signaltreue bei minimalem Rauschwert: z. B. für kohärente optische Modulationsanalysen, zum Debugging von seriellen Hochgeschwindigkeitsbussen und für Compliancetests, zur Bitfehler-Erkennung oder für PAM4- und NRZ-Messungen.

Überragende Signalintegrität durch patentierte ATI-Technologie:

  • Minimales Rauschen, hohe Bandbreite und Messgeschwindigkeit
  • Hochleistungs-Triggersystem zur Isolierung von Signalfehlern
  • Herausragende Timing-Genauigkeit
  • Präzise Zeitbasisgenauigkeit
  • Kanal-Laufzeitunterschiede/Timing
  • Timing-Stabilität in Systemen mit mehreren Geräteeinheiten
  • Rauscharme optische Messungen mit dem optischen Tastkopf DPO7OE1

Leistungsstarke, erweiterte Analysefunktionen:

  • Hochpräzise Jitter- und Rausch-Analyse sowie optische Messungen mit DPOJET
  • Analyse und Kompensation von Signaleinflüssen in seriellen Datenverbindungen (SDLA)
  • Umfangreiche PAM4-Analyse ohne externe CR-Einheit
  • Unterstützung sämtlicher Standards für Gen3/Gen4+
  • Automatisierte Konformitätsprüfung für reproduzierbare Ergebnisse
  • Leistungsstarke Debugging-Werkzeuge zum schnellen Erkennen und Beheben von Designproblemen

Flexible Mehrgeräte-Konfiguration:

Die innovative UltraSync-Architektur ermöglicht Ihnen eine flexible Konfiguration mit bis zu vier Geräteeinheiten, sodass Sie problemlos Erfassungskanäle hinzufügen können (max. 16 Kanäle gesamt) und dabei die hervorragende Timing-Genauigkeit zwischen den Kanälen beibehalten.

  • Kompakte Bauform mit nur 3 Höheneinheiten (3 HE)
  • Einfache Aggregation in ein System mit bis zu 4 Einheiten
  • Schnelle Neukonfiguration des Systems
  • Konfigurieren von bis zu 16 synchronisierten optischen Erfassungskanälen mit Tastkopf DPO7OE1/DPO7OE2
