Tektronix 6-WBG-DPT | Double pulse test at wide band gaps, software option for MSO Series 6

Manufacturer number: 6-WBG-DPT

Tektronix 6-WBG-DPT
Delivery time upon request

€6,020.00

plus VAT. €7,163.80 VAT plus shipping costs

This product cannot be retrofitted!
or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Tektronix 6-WBG-DPT | Wide Bandgap – Double Pulse Test Analysis, automatic switching and timing function as well as reverse recovery measurement according to JEDEC and IEC standards, oscilloscope option for MSO Series 6.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

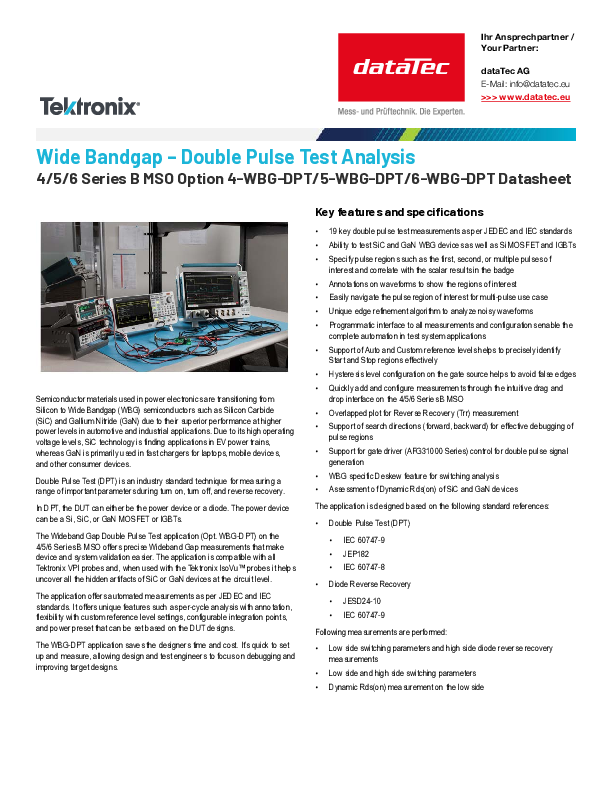

Datasheet
pdf | 1.29 MB

Description

6-WBG-DPT | Double pulse test at wide band gaps, software option for MSO Series 6

The Wide Bandgap Double Pulse Test (WBG-DPT option) application for your Tektronix 5 Series oscilloscope enables precise double pulse measurements to simplify testing.

Product Features:

  • 16+ key measurements according to JEDEC and IEC standards
  • Ability to test SiC or GaN devices as well as Si MOSFETs and IGBTs
  • Specify pulse regions such as the first, second or multiple pulses of interest and correlate with the scalar results in the badge
  • Annotate traces to show regions of interest
  • Easily navigate the pulse region for multi-pulse use cases
  • Unique edge refinement algorithm for analyzing noisy traces
  • Programmatic Interface to all measurements and configurations enable full automation in test system applications
  • Support of auto and user-defined reference levels for precise identification of start and stop regions
  • Configuration of the hysteresis level on the gate source helps to avoid false edges
  • Quickly add and configure measurements via the intuitive drag-and-drop user interface of the 4/5B/6B Series MSO
  • Overlapping plot for reverse recovery (trr) measurement
  • Search directions (forward, backward) for effective debugging of pulse regions
  • Support for controlling the gate driver (AFG31000 series) to generate double pulse signals
  • Deskew function for switching analysis

The application is based on the following standard references designed:

  • Double Pulse Test (DPT)
    • IEC 60747-9
    • JEP182
    • IEC 60747-8
  • Diode Reverse Recovery
    • JESD24-10
    • IEC 60747-9

The following measurements are carried out:

  • Low voltage switching parameters and diode reverse recovery on the high voltage side
  • Switching parameters low voltage and high voltage side
