TDK-Lambda Z100-2 | Power supply unit, DC, 1 channel 100V / 2A, 200W, USB, analog

Manufacturer number: Z100-2

TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
TDK-Lambda Z100-2
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Programmable 1-channel power supply Z100-2 from TDK-Lambda with an output of 0 ... 100 VDC / max. 2 A.

  • DC outputs: rear side via screw
  • Output voltage: 0 ... 100 V DC
  • Output current: 0 ... 2 A
  • Max. Power: 200 W.
  • Residual ripple: 8 mV
  • Residual ripple: 3 mA
  • Wide range input (85-265 V AC)
  • 16-bit resolution for current and voltage
  • Display: 4 digits for current and voltage
  • Faster programming times thanks to the latest microcontrollers
  • Built-in arbitrary generator for standardized test procedures
  • Two programmable output pins
  • Automatic operating modes CC and CV
  • Comprehensive safety functions such as: safe start, auto restart
  • Analog control & readback
  • USB, RS-232 & RS-485 interfaces
  • Optional: LAN, GPIB & isolated analog control & monitoring
  • Low height with 2 U
  • Dimensions: W70 x H83 x D 350mm
  • Can be used as a 2 U rack installation with up to 6 channels or as a desktop power supply
  • Weight: 1.9 kg
  • 5 year guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

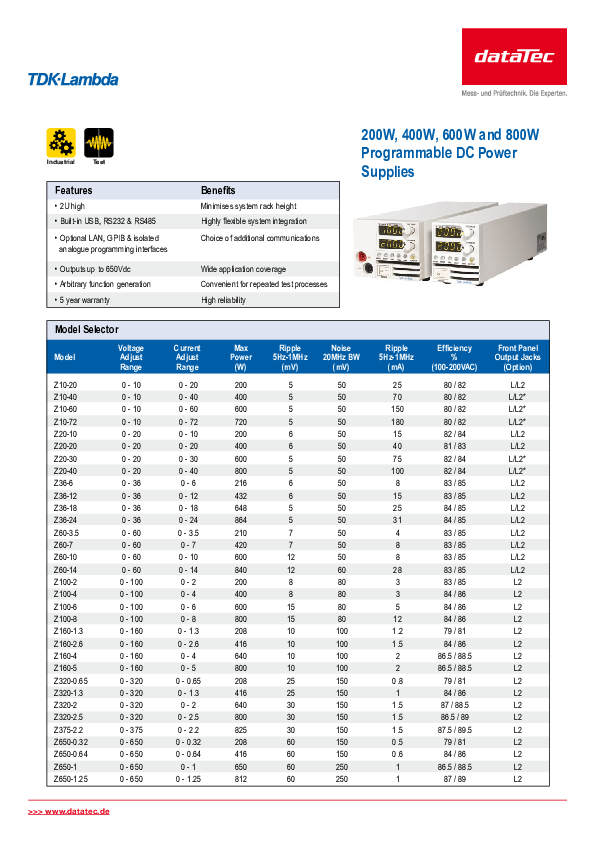

Overview
pdf | 1.88 MB

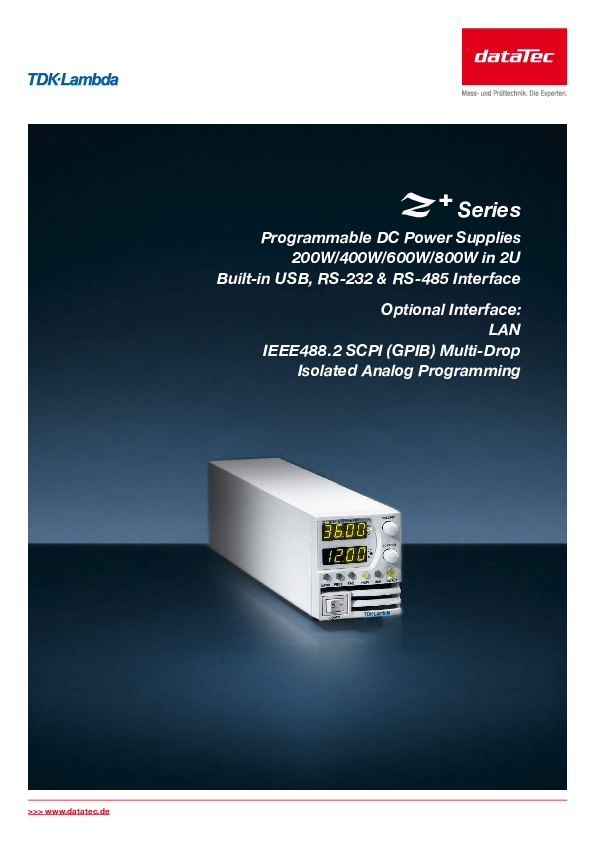

Datasheet
pdf | 1.95 MB

Description

Z100-2 | Power supply unit, DC, 1 channel 100V / 2A, 200W, USB, analog

The power supply of the Z + series from TDK-Lambda with a height of 2 U is a third smaller, 40% lighter and offers 50% more power density than comparable products on the market.
The device can be used flexibly thanks to innovative, menu-driven control and monitoring functions such as the built-in arbitrary generator.

As standard, three serial interfaces (USB, RS-232 & RS-485) are installed, via which up to 31 devices can be controlled via a PC.
