SPS ST4000B | Surgetester & partial discharge meter including matrix U,V,W,N and PE

Manufacturer number: ST4000B

SPS ST4000B
SPS ST4000B
SPS ST4000B
SPS ST4000B
SPS ST4000B
SPS ST4000B
Delivery time upon request

€30,507.00

plus VAT. €36,303.33 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description

SPS electronic ST 4000B | Surgetester & partial discharge meter including matrix U,V,W,N and PE

  • Detection of interturn faults, insulation faults and partial discharges within a winding
  • Complies with national and international standards (IEC, EN, UL, VDE etc.)
  • 15.6" touch display
  • expandability
  • PC software for remote control of the device / DLL for individual software design

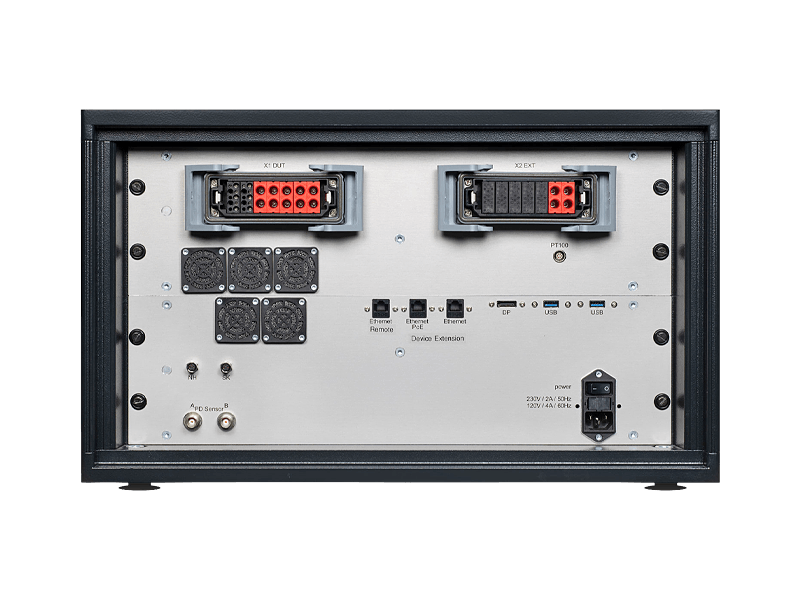

  • USB and Ethernet / LAN interfaces
  • Internal touch panel PC with DAT software

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

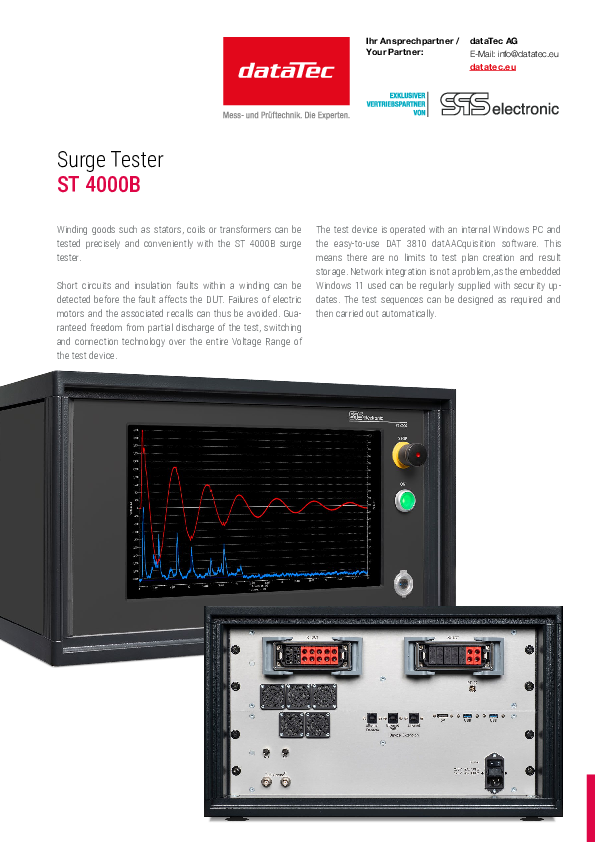

Datasheet
pdf | 0.59 MB
Userguide
pdf | 1.89 MB

Description

ST4000B | Surgetester & partial discharge meter including matrix U,V,W,N and PE

The surge voltage tester ST 4000B from SPS electronic is suitable for use in production, quality assurance, development or repair. Winding goods such as coils or transformations can be precisely examined in no time with the ST 4000B surge voltage tester. Insulation faults or interturn faults can thus be detected at an early stage.

The large 15.6 inch touch display enables easy and convenient operation of the device. You can integrate the surge voltage tester into your company network using the Ethernet and USB interfaces. The DAT software supports you in creating your own test programs and storing and evaluating test results.

You can expand the ST 4000B with additional SPS electronic testing technology. For example, you can add a resistance and high-voltage test to the surge voltage tester. We would be happy to support you in selecting your measuring device.

Technical specifications

  • Surge Voltage Range: 100-6000V
  • Surge capacitance: 18 nF, optional 47 nF / 100 nF / 200 nF
  • High voltage DC: 100-600V/10mA
  • Measuring range isolation DC: 100 – 6000 V / 10 kV
  • Resistance: 20mΩ - 200kΩ to 1A
  • Internal matrix: 4 phases + PE, 4-wire
  • Partial discharge: measurement voltage 100 - 6000 V / measurement method according to IEC 61934
