SPS RL42-H | High voltage relay 10000VAC / max. 30A number of poles 2, coil 24VDC / 0.25A

Manufacturer number: RL42-H

SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
SPS RL42-H
8 in stock. Ready to ship in 1 business day

€461.00

plus VAT. €548.59 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

SPS RL 42-h | High voltage relay 10,000V / max. 30A number of poles 2, coil 24 V DC / 0.25A.

  • Sealed housing made of ABS plastic, the relay is inserted in transformer oil
  • Switching capacity max. 10000 V (ohmic load)
  • Test voltage: contacts max. 25 kV DC
  • Isolation voltage max. 10000 V.
  • Switching current max. 10 AAC
  • Continuous current max. 30 AAC
  • Quenching diode for excitation coil (24 VDC / 0.25 A)
  • Connection of circuits 2 m cable, free cable ends (4 mm²)
  • Connection excitation coil 2 m cable, free cable ends (0.5 mm²)
  • Including mounting plate 120 x 120 mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

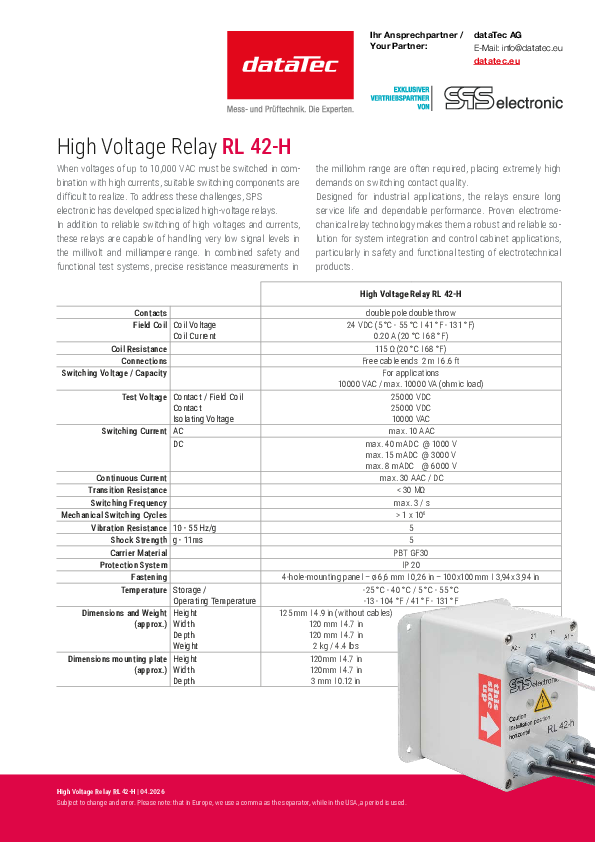

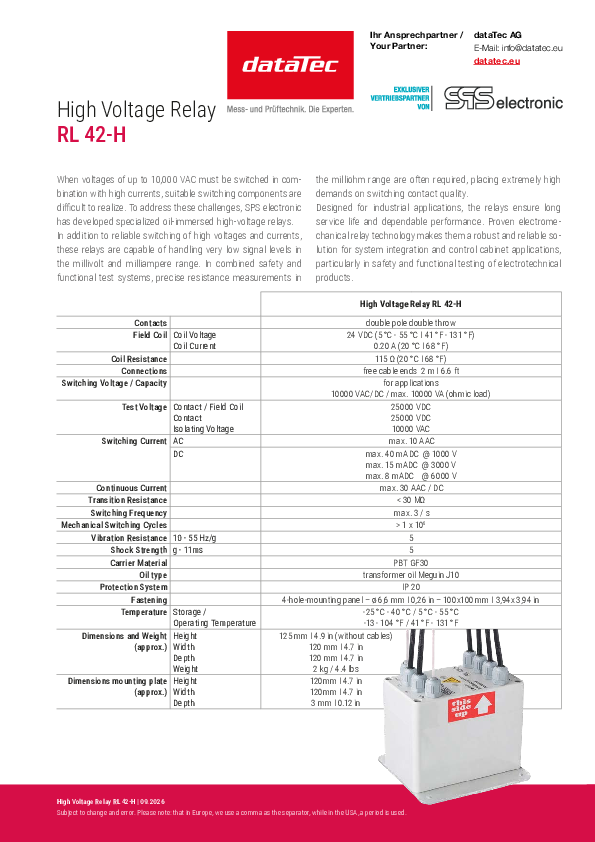

Datasheet
pdf | 0.48 MB

Description

RL42-H | High voltage relay 10000VAC / max. 30A number of poles 2, coil 24VDC / 0.25A

If voltages up to 10000 V have to be switched in combination with high currents, it is very difficult to find suitable switching elements. That is why SPS electronic, specialist in electrical safety test technology (EST), has developed a special high-voltage relay.

In addition to the requirements for high voltages and high currents already mentioned, it is often also necessary to switch very low voltages in the mV range and currents in the mA range. The requirements regarding the quality of the switch contacts are therefore extremely high. A long service life must also be ensured for industrial use. The relays are used particularly in combined safety and function test systems for the testing of electro-technical products.

Here several kV are switched for the high voltage test while for the function test, e.g. B. in motors, currents up to 30 A occur. With a voltage of up to 10000 Veff and a contact load of max. 30 A or 10000 V, the high-voltage relays meet this requirement.
