Shieldex RF-X PBN2 | Mobile EMC personnel tent, two-layer, 2150 x 2150 x 2180 mm

Manufacturer number: RF-X PBN2

Shieldex RF-X PBN2
Shieldex RF-X PBN2
Shieldex RF-X PBN2
Shieldex RF-X PBN2
Shieldex RF-X PBN2
Delivery time upon request

On Request

or choose one of the following options:
Product inquiries
Highlights Documents & Downloads Description Scope Related Articles

Shieldex RF-X PBN2 | Mobile EMC shielding tent, shielding performance up to 75 dB in the frequency range from 0.03 to 18 GHz, internal dimensions 2150 x 2150 x 2180 mm.

  • Shielding performance up to 75 dB: Reliable shielding in the frequency range from 0.3 GHz to 18 GHz
  • Modular design and flexibility: Effortless adaptation to a wide range of test requirements
  • Mobile EMC test laboratory: Flexibility for tests in different environments
  • Efficient pre-compliance testing: Time and cost-saving pre-tests through effective implementation

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

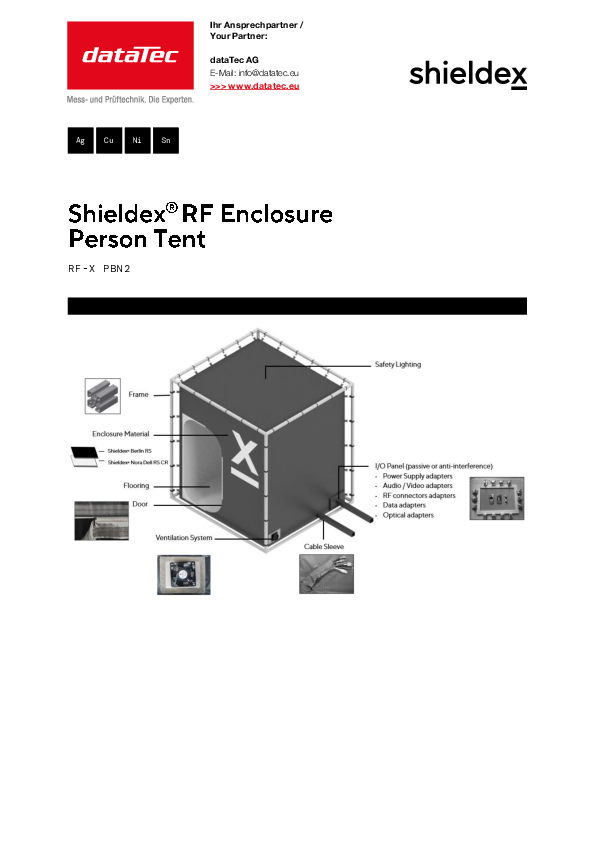

Datasheet
pdf | 0.23 MB

Detaildescription

RF-X PBN2 | Mobile EMC personnel tent, two-layer, 2150 x 2150 x 2180 mm

In the dynamic world of electromagnetic compatibility (EMC), precise and reliable testing is essential. The Shieldex RF-X PBN2 EMI/RF/EMC Shielded Enclosure offers you a mobile, high-performance solution for comprehensive pre-compliance testing in any environment. This EMC Shielded Enclosure, also known as an EMC personnel tent, not only offers an alternative to stationary EMC laboratories, but also the flexibility and efficiency required for mobile use.

With an average shielding performance of 75 dB in the frequency range from 0.3 GHz to 18 GHz, the Shieldex RF-X PBN2 is ideal for use in areas with high electromagnetic radiation, especially when working with sensitive electronic devices. It enables efficient pre-compliance testing, saves time and costs, and its modular design offers numerous accessory options. The easy assembly and disassembly as well as the exceptional durability without loss of quality make the enclosure a reliable solution for demanding environments.

The tent is made of high-quality two-layer materials that provide excellent shielding from electromagnetic waves. The materials Shieldex Berlin RS and Shieldex Nora Dell CR are perfectly matched and offer an effective barrier against electromagnetic radiation through their metal combination of silver, copper and nickel.

The Shielded Enclosure is perfect for EMC tests, shielding against electromagnetic radiation, light shielding, forensics, cyber security and the reverberation chamber method.

Technical details of the RF-X PBN2

  • Textile EMC shielding tent
  • External dimensions of the frame: 2390 x 2390 x 2300 mm (LxWxH)
  • Internal dimensions of the enclosure: 2150 x 2150 x 2180 mm (LxWxH)
  • Double-layer: Shieldex Nora Dell RS and Shieldex Berlin RS
  • Frame made of BOSCH® system (material construction)
  • Shielded cable conduit
  • Textile door with shielding zipper and VELCRO®
  • Cleanroom suitability: Corresponds to class A300 (class 1000)
  • Shielding performance: Average 75 dB in the frequency range from 0.3 GHz to 18 GHz
  • Certifications: DIN EN ISO 9001:2015, REACH, RoHS



Lieferumfang

  • Textile EMC shielding tent
  • Frame made of BOSCH® system
  • Shielded cable conduit
  • Textile door with shielding zipper and VELCRO®
  • Repair kit for minor repairs
  • Installation manual
