Shieldex RF-X C | HF shielding tent for Pendulum EMV scanner SCN-500, 1000 x 700 x 1000 mm

Manufacturer number: RF-X C

Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Shieldex RF-X C
Delivery time upon request

€4,860.00

plus VAT. €5,783.40 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries % Additional offers for this product
Highlights Documents / Downloads Description Related Articles

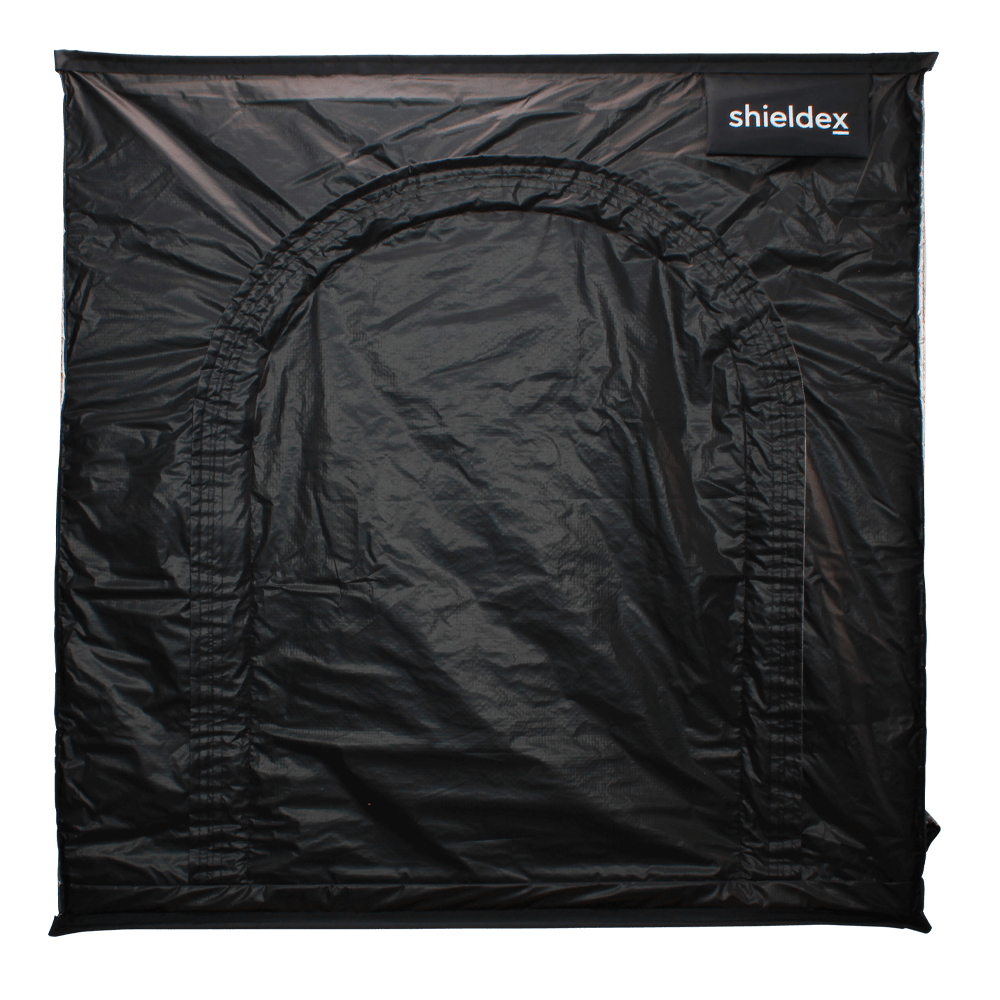

Shieldex RF-X C | HF shielding tent for Pendulum EMV scanner SCN-500, 1000 x 700 x 1000 mm (L x W x H), for EMV tests.

  • Effective shielding: The RF-X C tent offers a shielding attenuation of at least 75 dB (0.03-7 GHz) for precise EMC testing.
  • Optimized for Pendulum SCN-500: Specially designed to shield the Pendulum EMC scanner SCN-500 series.
  • Easy to use: Large interior, internal frame and large opening for easy access and placement.
  • Shielded cable duct: Makes it easier to insert and manage shielded cables.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.71 MB

Description

RF-X C | HF shielding tent for Pendulum EMV scanner SCN-500, 1000 x 700 x 1000 mm

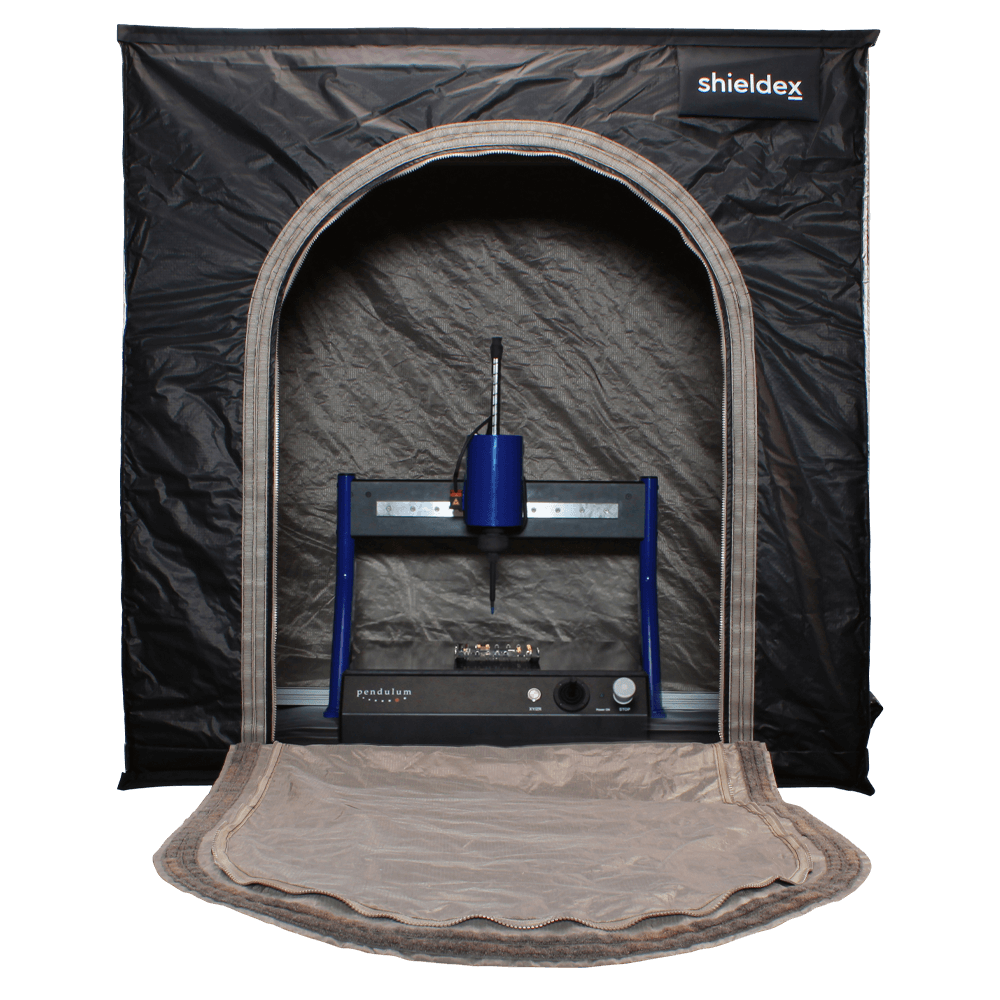

The Shieldex HF shielding tent RF-X C was specially developed for the electromagnetic shielding of the Pendulum EMV scanner SCN-500.

The shielding tent consists of a three-layer conductive combination of metallized fabrics with a high shielding effect against electromagnetic fields, which prevents electromagnetic interference from the environment from being coupled into the test device, thus ensuring that EMC tests can be carried out precisely and repeatably. The RF-X C offers a shielding effectiveness of at least 75 dB in the frequency range from 0.03 to 8.

The EMI near-field scanners of the Pendulum SCN-500 series are used to test the radiated electrical or magnetic fields of electronic assemblies. The scanners are often used during development to ensure that the function of devices and systems is not impaired by electromagnetic interference.

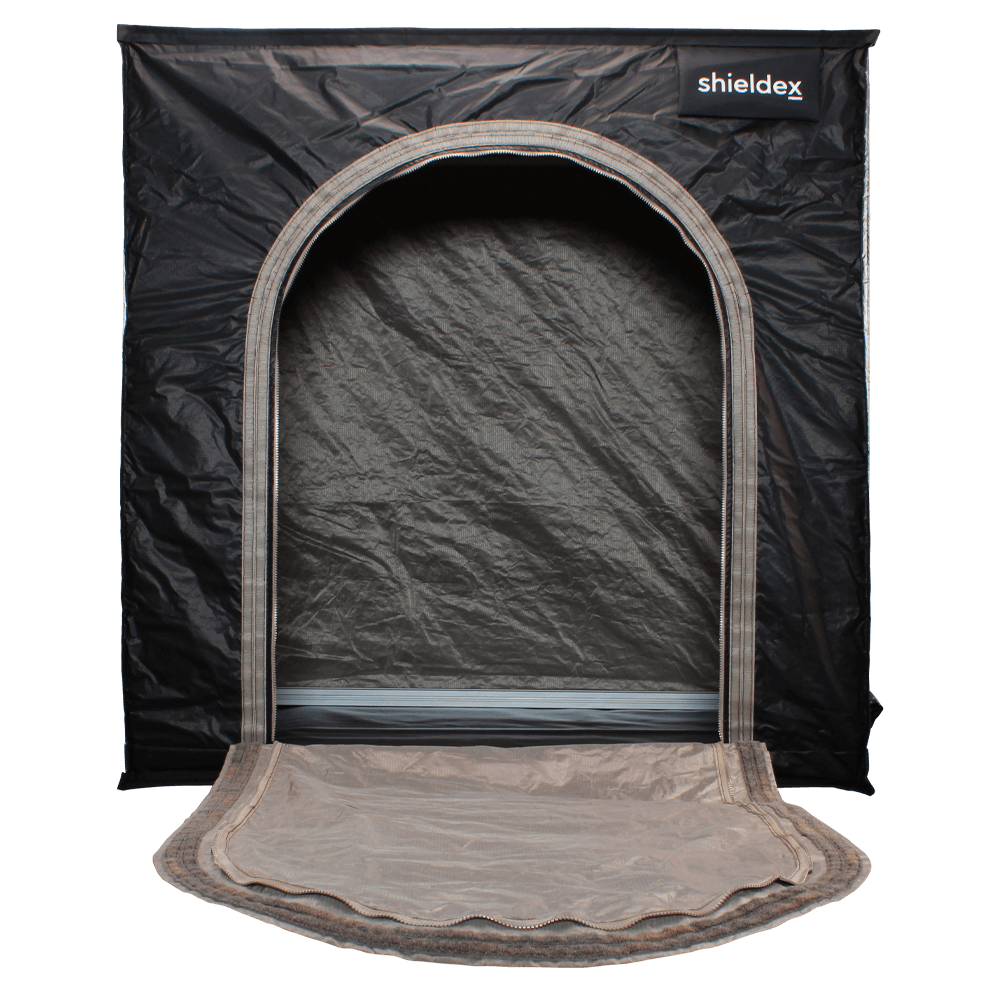

The tent has an internal frame and offers good accessibility to the test device. The large opening allows you to easily place and operate the test device. The interior is sufficiently dimensioned so that, for example, there is space for a signal analyzer next to the scanner. A shielded cable duct makes it easier to insert shielded cables.
