SEFRAM DAS1800 | Modular high-speed data logger, 10 slots, base unit

Name: DAS1800 | Modular high-speed data logger, 10 slots, base unit
Brand: SEFRAM
SKU: DAS1800
Price: 11995.0 EUR
Availability: OutOfStock

Manufacturer number: DAS1800

Delivery time upon request

€11,995.00

plus VAT. €14,274.05 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Sefram DAS1800 | Modular high-speed data logger, 10 slots, for up to 1 MSa/s/ch, base unit.

Streaming 40 channels at 1 MSa/s/ch
Up to 80 analog inputs with the D18-MUX8 multiplex module
Measures up to ±600 VDC
10 slots and 3 measurement modules available

Universal (4 channels)

Multiplexed (8 channels)

High impedance (4 channels)

Temperature measurements with thermocouples and RTDs
Storing sensor information and parameters in the sensor library
Simultaneous recording at multiple sample rates (up to 4)
Internal signal conditioning with analog and digital filters
15.6 inch full HD touchscreen display
2TB internal SSD (standard)
Advanced calculations and automatic measurements
16 digital input channels (24 V) and 4 digital outputs
Dedicated 5W power rail for sensors with different voltages: +3.3V, +5V, +12V, +24V
USB ports (2 USB 3.0 and 2 USB 2.0), 2 LAN ports (1 Gbps) and 1 HDMI port

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy temperature:	1,25 °C
Accuracy voltage measurement:	0,1 % scale ±10 µV
Accuracy voltage measurement DC:	±0,1 %, full scale + 10µV
Article number:	DAS1800
Connection types:	analogue channels
Current measuring range AC:	With shunt 0.001 - 50A
Current measuring range DC:	With shunt 0.001 - 50A
Dimensions (L x W x H) (mm):	271 x 472 x 154
Display:	15,6", Full HD Touchscreen, 1920 x 1080
Interfaces:	USB, LAN, HDMI
Max. battery life:	3,5 h
Measured value memory:	2 TB (SSD)
Model:	DAS1800
Number of channels:	80
Resolution (bit):	18
Special features:	16 digital input channels (24V) and 4 digital outputs
Temperature measuring range:	-250 °C - +1820 °C
Temperature sensors Types:	alle Typen, Pt100 - Pt1000
Voltage measuring range:	±600V
Voltage measuring range DC:	± 600V
Warranty (years):	2
Weight (kg):	8

Description

DAS1800 | Modular high-speed data logger, 10 slots, base unit

The Sefram data logger DAS1800 has 10 slots and can therefore be configured for a variety of applications. For the data logger you get 3 different input modules with 4 or 8 channels (see below). Acquire data from any sensor with a voltage or current output (with a shunt), or directly measure voltage, resistance, or temperature with thermocouples or resistance temperature detectors (RTDs).

The DAS1800 can measure and record up to 40 channels at 1 MSa/s/ch, making it ideal for capturing rapidly changing signals and transients. For slowly changing parameters, the D18-MUX8 multiplex module offers 8 inputs per module (up to 80 channels per system).

The Sefram DAS1800 features a 15.6-inch full HD touchscreen display for easy setup and visualization of real-time or recorded data. The DAS1800's highly intuitive user interface enables easy operation with a variety of time-saving features such as one-finger scrolling, pinching and zooming, as well as an integrated sensor library.

The data logger is also available as a battery-operated version that allows up to 3.5 hours of battery operation (1.5 hours with 10 D18-UNI4 modules) (item no. DAS1800-BAT). Ideal for all field applications.

Would you prefer the data logger to be fanless? Then choose the D18-FLE option. Please note that this option is not available for the battery-powered variant DAS1800-BAT.

To view data on a PC, we recommend the free DASpro software. For remote control, the DAS1800 supports web server and VNC connections.

You will receive the following modules for the Sefram DAS1800:

D18-HIZ4 - 4 channel, high impedance universal input module
D18-MUX8 - 8 channel, multiplexed input module
D18-UNI4 - 4 channel, universal input module

Accessoires (5 products )

SEFRAM 902407000

Cable set for connecting the DAS240x logic channels, data logger

3 in stock. Ready to ship in 1 business day

€320.00

SEFRAM D18-MUX8

8 channel, multiplexed input module for DAS1800

Delivery time upon request

€2,695.00

SEFRAM D18-UNI4

4 channel, universal input module for DAS1800

Delivery time upon request

€2,695.00

SEFRAM D18-HIZ4

4 channel, high impedance universal input module for DAS1800

Delivery time upon request

€2,895.00

SEFRAM D18-FLE

Option for Base Unit (fanless) for DAS1800

Delivery time upon request

€995.00

Alternate products (1 product )

SEFRAM DAS1800

Modular high-speed data logger, 10 slots, base unit with battery operation

Delivery time upon request

€13,195.00

Recommendations (5 products )

SEFRAM D18-FLE

Option for Base Unit (fanless) for DAS1800

Delivery time upon request

€995.00

SEFRAM D18-HIZ4

4 channel, high impedance universal input module for DAS1800

Delivery time upon request

€2,895.00

SEFRAM D18-MUX8

8 channel, multiplexed input module for DAS1800

Delivery time upon request

€2,695.00

SEFRAM D18-UNI4

4 channel, universal input module for DAS1800

Delivery time upon request

€2,695.00

SEFRAM D18-HVM4

4 Kanal, High Voltage Universal Input Module für Datenlogger DAS1800

1 in stock. Ready to ship in 1 business day

€3,095.00

About the Manufacturer

SEFRAM

Since 1978, the French company Sefram has been developing measurement data recorders and acquisition systems. Sefram manufactures high quality and functional products with up-to-date technology and high customer value, such as electronic recorders up to 72 channels with optional thermal printer and XY recorders.

SEFRAM DAS1800 | Modular high-speed data logger, 10 slots, base unit

Sefram DAS1800 | Modular high-speed data logger, 10 slots, for up to 1 MSa/s/ch, base unit.

Technical Data

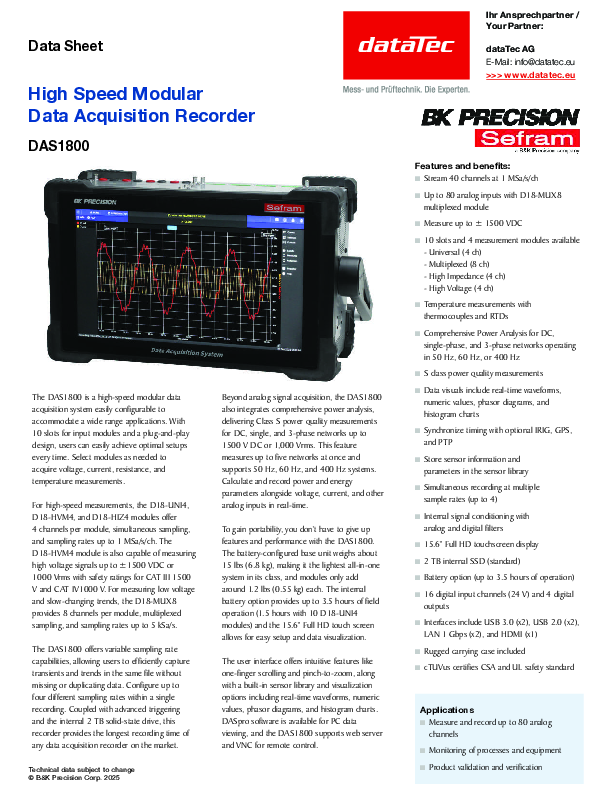

Documents & Downloads
