SEFRAM DAS1700 / 001 | Data logger, 6 HV channels

Name: DAS1700 / 001 | Data logger, 6 HV channels
Brand: SEFRAM
SKU: DAS1700/001
Price: 16400.0 EUR
Availability: OutOfStock

Manufacturer number: DAS1700/001

Delivery time upon request

€16,400.00

plus VAT. €19,516.00 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

SEFRAM DAS1700 / 001 | Data logger, 6 HV channels

6 HV channels
Fast sampling rate: up to 1 MSa / s (1μs)
Up to 72 channels (with multiplex card)
Modular device by changing the acquisition cards

4 cards optionally available:

Universal, multiplex, strain gauge and high voltage VDC measurement
Up to 1000 VAC with high-voltage card and measurement of Pt100 and Pt1000 with multiplex card

16-bit resolution with multiplex card / 14-bit resolution with universal card
500 GB SSD internal storage
16 logic input channels with power supply (12 V)
Wide 15.6-inch touchscreen TFT display
USB and LAN interfaces
Battery option (up to 2 hours)

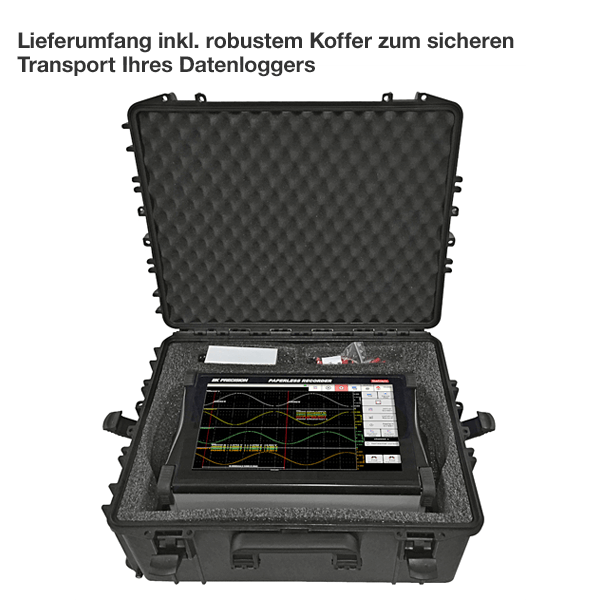

Transport case and free software for control and analysis included

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy voltage measurement AC:	±0,2 %, full scale
Accuracy voltage measurement DC:	±0,2 %, full scale
Article number:	DAS1700/001
Connection types:	analogue channels
Current measuring range AC:	With shunt 0.001 - 50A
Current measuring range DC:	With shunt 0.001 - 50A
Dimensions (L x W x H) (mm):	271 x 472 x 154
Display:	15,6", TFT Touchscreen, 1366 x 768
Interfaces:	USB, LAN, VGA
Measured value memory:	500 GB (SSD), optional bis 2 TB
Model:	DAS1700/001
Number of channels:	6
Resolution (bit):	14
Special features:	High speed recorder, CAN/LIN, 16 logic inputs with 12V power supply
Voltage measuring range AC:	100 mV - 1000 V
Voltage measuring range DC:	50mV to 1000V
Warranty (years):	2
Weight (kg):	8

Description

DAS1700 / 001 | Data logger, 6 HV channels

The DAS1700 data logger is a high-speed recorder with which you can record several parameters: voltage, current (with shunt or clamp), temperature (thermocouples), measurements on sensors (e.g. 0-10 V; 4-20 mA).

You can set up your own channel configuration by choosing from the 4 available input boards: universal board, universal high voltage board, strain gauge board and multiplex board.

With a suitable channel configuration, you can record 6 to 72 channels and 16 logic inputs.

Long-term measurements with a sampling rate of 1 MSa / s (1 µs) are possible if the internal hard disk space of 500 GB is fully used.

With a special integrated function of the performance analysis you can record all your parameters in a single-phase and three-phase network (50 Hz, 400 Hz and 1 kHz).

This data acquisition solution can be remotely controlled via an Ethernet or WiFi connection and the results can be analyzed using license-free software developed by Sefram.
