Pendulum SCN-522 / 6G | Detectus near field scanner 2D, EMV, 6 GHz, scanning area 200 mm x 100 mm

Manufacturer number: SCN-522/6G

Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Pendulum SCN-522 / 6G
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Pendulum SCN-522 / 6G | Detectus EMV scanner 2D, 6 GHz, 200 x 100 mm, step resolution 0.1 mm, SCN-500 series EMC scanner.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.68 MB
User report
pdf | 0.34 MB
Userguide
pdf | 6.03 MB

Description

SCN-522 / 6G | Detectus near field scanner 2D, EMV, 6 GHz, scanning area 200 mm x 100 mm

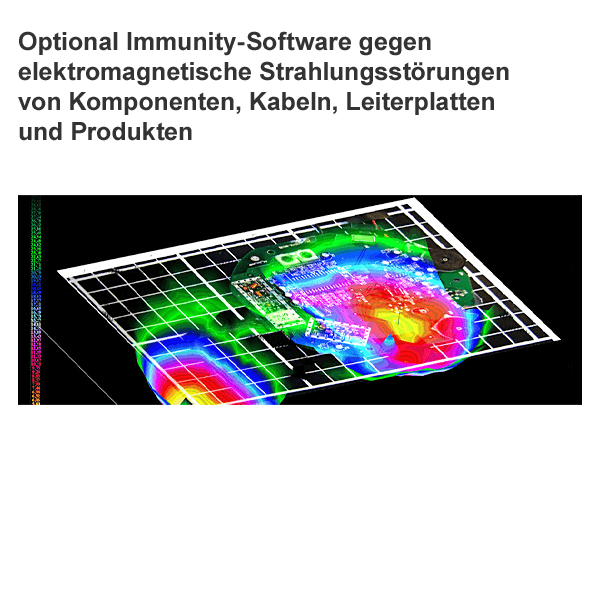

The Pendulum EMC Scanner SCN-522 of the Pendulum / Detectus SCN-500 series measures both electromagnetic emission and interference immunity. The measurement result is displayed as easy-to-interpret two- or three-dimensional colored maps (depending on the model) that clearly show hotspots in high resolution. Repeated measurements in the early stages of the design effectively reduce the risk of expensive and time-consuming redesigns.

For a complete measuring system you only need a normal PC, a spectrum analyzer and the scanner, which already contains a near-field probe kit including preamplifier and the scan software.

The EMV / EMC scanners of the Detectus SCN-500 series offer, thanks to the high step resolution of only 0.1 mm, an excellent price / performance ratio.

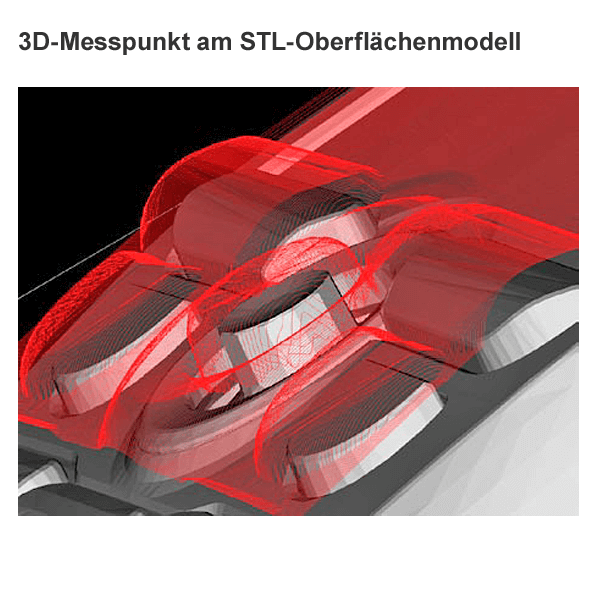

The SCN-500 series is available in three sizes and can be two- or four-dimensional. The 2D model only measures in the XY plane, while the 4D models measure in XYZ and also rotate the probe head around the Z axis. Each model can be equipped with a 3, 6 or 10 GHz probe set. There is also an option for precision laser distance measurement for the 4D models.

The model SCN-522-6G presented here is a pure 2D scanner with 6 GHz. It measures 200 x 100 mm and is ideal for customers with flat products or circuit boards such as cell phones and the like. The inexpensive 2D model can later be upgraded to a 4D scanner with the optional ZR module.

The model SCN-522 is also available as a 3 GHz variant (SCN-522 / 3G). The EMV scanners of the SCN-500 series are also available as 4D models with 200 x 100 x 100 mm (SCN-524), 300 x 200 x 100 mm (SCN-534) and 600 x 400 x 300 mm (SCN-564) .
