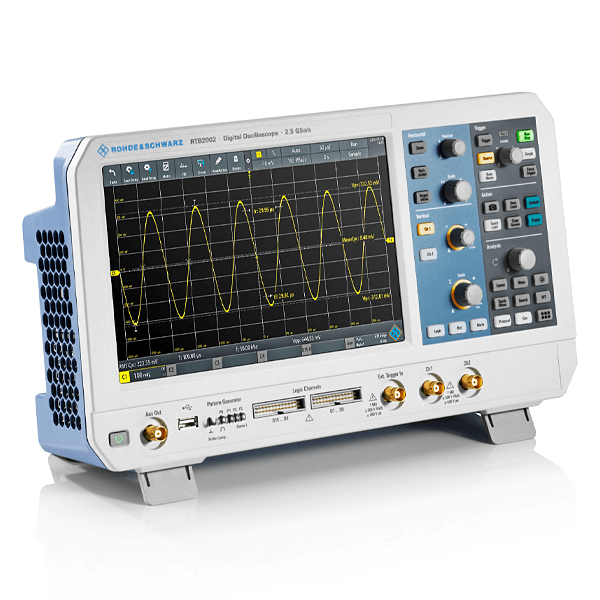

Rohde&Schwarz RTB2002 EDU | Oscilloscope, 2 channels, touch display, 70 MHz incl. RTB-PK1 Application Bundle (1333.1005P92)

Name: RTB2002 EDU | Oscilloscope, 2 channels, touch display, 70 MHz incl. RTB-PK1 Application Bundle (1333.1005P92)
Brand: Rohde&Schwarz
SKU: 1333.1005P92
Price: 2260.0 EUR
Availability: InStock

Manufacturer number: 1333.1005P92

3 in stock. Ready to ship in 1 business day

€2,260.00

plus VAT. €2,689.40 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Rohde & Schwarz 1333.1005P92 | RTB2002 EDU - Bundle oscilloscope, 2 channel, touch display, USB, LAN, 70 MHz (opt. Up to 300), 1.25 GSa / s, 10 Bit, 10MPts & RTB-PK1 application bundle.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	1333.1005P92
Bandwidth (MHz):	70
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	152 x 390 x 220
Function generator:	Yes
Interfaces:	USB, LAN
Model:	RTB2002 EDU
Number of channels:	2
Samplerate:	2,5 GSa/s
Screen size:	25,6 cm
Screen type:	1280 x 800, Touchscreen
Segmentable memory:	Yes
Signal acquisition rate:	50.000 wfms/s
Special features:	including app bundle: RTB-PK1
Storage depth:	20 MPts
Triggertypes:	Edge, Width, Video, Pattern, Timeout, Serial Bus
Vertical resolution:	10-bit
Warranty (years):	3
Weight (kg):	2.5

Description

RTB2002 EDU | Oscilloscope, 2 channels, touch display, 70 MHz incl. RTB-PK1 Application Bundle (1333.1005P92)

This special education bundle consists of the Rohde & Schwarz RTB2002 oscilloscope and the RTC-PK1 software package .

RTB2002 oscilloscope:

Thanks to the "Power of Ten" (10-bit A / D converter, 10 Msample memory and 10.1 "touchscreen) and intelligent operating concepts, the RTB2000 oscilloscope is the perfect tool for troubleshooting in embedded designs, for university laboratories and for production - and service departments.

The largest display (10.1 ") with the highest resolution in this class (1280 × 800 pixels) works just like your smartphone. It offers a capacitive touchscreen for quick navigation in pop-up menus and a touch function for easy adjustment of the scaling Zooming or moving a waveform.

The 10-bit A / D converter is up to four times better than conventional 8-bit A / D converters. You get sharper measurement curves with more signal details.

10 Msample memory depth is available on each channel if all channels are active. Even 20 Msample are available in interleaved mode. This is ten times more than comparable competing devices. Longer signal sequences can therefore be recorded and more detailed analysis results can be achieved.

With the RTB2000 you get more than just an oscilloscope. The device includes a logic analyzer, protocol analyzer, waveform and pattern generator, and a digital voltmeter. Special operating modes for frequency analysis, mask tests and long-term recording are integrated. Troubleshooting in electronic systems of all kinds is simple and effective - and thus protects your investment at an extremely attractive price.

Application bundle RTB-PK1:

The application bundle contains 6 software options (RTB-K1, K2, K3, K15, K36, B6) for the RTB2002 oscilloscope.

RTB-K1: I²C and SPI bus decoding and triggering
RTB-K2: UART / RS-232 / RS-422 / RS-485 decoding and triggering
RTB-K3: CAN and LIN decoding and triggering
RTB-K15: History and segmentable memory
RTB-K36: Frequency response analysis (Bode plot)
RTB-B6: 25 MHz arbitrary generator
