Rohde&Schwarz ZNB4 | Vector Network Analyzer, Gen 2 Series, 9 kHz to 4.5 GHz, 2 Port, up to 10 MHz (1334.3330.22)

Name: ZNB4 | Vector Network Analyzer, Gen 2 Series, 9 kHz to 4.5 GHz, 2 Port, up to 10 MHz (1334.3330.22)
Brand: Rohde&Schwarz
SKU: 1334.3330.22
Availability: OutOfStock

Manufacturer number: 1334.3330.22

Delivery time upon request

On Request

or choose one of the following options:

Product inquiries Request education-price

Rohde & Schwarz ZNB4 | Vector network analyzer, model .22, 2 test ports, frequency range 9 kHz to 4.5 GHz, analysis bandwidth up to 10 MHz, dynamic range up to 140 dB (1334.3330.22).

Frequency range: 9 kHz to 4.5 GHz
Number of test ports: 2 gates, expandable up to 24 gates by switching matrices
Maximum input power (test port): +27 dBm
Analysis bandwidth: 1 MHz (standard), optional: 10 MHz
DANL self-noise display: <–130 dBm (1 Hz) at 50 MHz to 4 GHz
Dynamic range: typ. 140 dB at 50 MHz to 4 GHz
Manual and automatic calibration procedures
High temperature stability: 0.01 dB / ° C
Wide level sweep range: 98 dB
Large, brilliant LCD screen: touchscreen, 12.1 inch diagonal

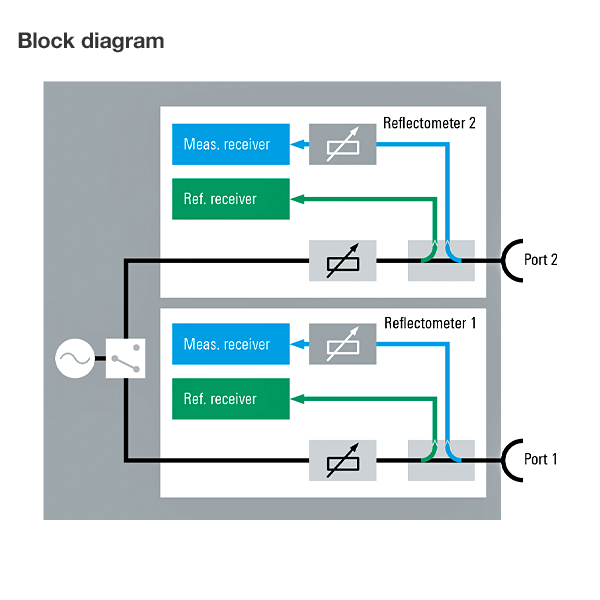

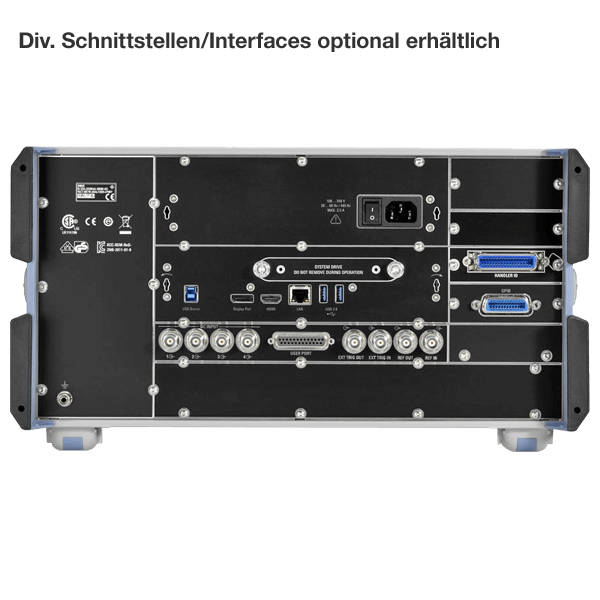

Interfaces: 6x USB 2.0, type A, LAN, reference input / output (10 MHz), DVI for external monitor, external trigger, optional: GPIB, handler I / O, RFFE-GPIO
Power supply: 100 to 240 V AC, 50/60 and 400 Hz
Dimensions: W 461.1 × H 239.9 × D 351 mm
Weight: 14 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	1334.3330.22
Crosstalk:	No
Dimensions (L x W x H) (mm):	361,5 x 462,5 x 239,6
Display:	1280 × 800, 125 dpi
IF-BW:	1 Hz - 10 kHz
Input impedance:	50 Ω
Interfaces:	USB, LAN, BNC, DP, HDMI Optional: GPIB
Max. Dynamic range:	140 dB (typ.)
Measuring speed for 201 points:	0,002 s
Min. output power:	-55 dBm
Model:	ZNB4
Number of ports:	2
Screen size:	30,7 cm
Screen type:	WXGA, LCD, Touchscreen
Special features:	Vector network analyzer, RF power meter
Time range analysis:	Optional
Warranty (years):	3
Weight (kg):	14
max. Frequency (GHz):	4.5
max. Output power:	+15 dBm
min. frequency (kHz):	9

Description

ZNB4 | Vector Network Analyzer, Gen 2 Series, 9 kHz to 4.5 GHz, 2 Port, up to 10 MHz (1334.3330.22)

The ZNB vector network analyzers from Rohde and Schwarz combine measurement accuracy with high measurement speed (<5 µs / measurement point) up to 40 GHz. The analyzers impress with their high dynamics (up to 140 dB at 10 Hz analysis bandwidth), their low noise (below 0.004 dB RMS at 10 kHz analysis bandwidth) and their high output power (up to +13 dBm). With a frequency range of 9 kHz to 4.5 GHz, the ZNB4 vector network analyzer comes, for example, from B. in the communication and electronics industry, for the design verification of digital high-speed circuit boards or for applications in the aerospace industry. It is ideal for the development and production of RF components such as amplifiers, mixers, filters, cables, etc.

All ZNB vector network analyzers are available with two or four ports. For even more complex measurements, the number of doors can be expanded with switching matrices, e.g. B. to characterize RF components for modern communication devices. With a four-port device, for example, two matrices with two entry and 24 exit gates can be combined in order to measure objects with up to 48 gates, e.g. B. Front-end modules for smartphones. The matrix type is recognized and the gate numbers are assigned automatically so that the user can quickly start measuring. S parameters and wave sizes are selected directly via the user interface of the network analyzer.

High dynamics and measurement accuracy for high demands:

Performance for demanding HF components: high dynamics up to 140 dB for fast measurement of high blocking test objects, excellent raw data for high basic accuracy and outstanding temperature stability for long calibration intervals
Short measurement times for high throughputs in production: fast synthesizers with switching times of less than 10 µs for high sweep rates and fast measurements, high dynamics and optimal IF bandwidths
Manual and automatic calibration procedures enable the correct calibration for every measurement application
Clear, flat menu structure for simple measuring processes: enables quick work and avoids operating errors

Conveniently characterize active and passive RF components:

Fast (de) embedding and fast impedance matching of DUTs through virtual matching networks
Mixed ‑ mode S ‑ parameters for characterizing balanced measurement objects
Customize measurement setups using specially defined S parameters
Comprehensive evaluation functions for the efficient analysis of measurement curves
Amplifier measurements with a large level sweep range and receiver attenuators
Time domain analysis for the search for joints and for filter adjustment
Frequency-converting measurements on mixers and amplifiers - quick and easy with two independent, internal generators
