Rohde&Schwarz MXO44 | Demonstrator Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04) (ROHDE1115_2212_V)

Name: MXO44 | Demonstrator Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04) (ROHDE1115_2212_V)
Brand: Rohde&Schwarz
SKU: ROHDE1115_2212_V
Price: 6074.25 EUR
Availability: InStock

Manufacturer number: ROHDE1115_2212_V

1 in stock. Ready to ship in 1 business day

€6,074.25

% €9,345.00 (35% saved)

plus VAT. €7,228.36 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Special item - Rohde & Schwarz 1335.5050.04 | MXO4 Oscilloscope, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s, basic unit.

Technical Data

Device type:	Oscilloscope
Special item type:	Demonstration unit

Description

MXO44 | Demonstrator Oscilloscope, basic unit, 200 MHz, 4 channels, up to 18 bit, up to 5 Gsample/s, 4.5 million waveforms/s (1335.5050.04) (ROHDE1115_2212_V)

The Rohde & Schwarz MXO4 oscilloscope sets new standards and delivers high-resolution results in the shortest possible time: 4.5 million waveforms per second, trigger rate <21 ns, 12 bit ADC resolution (18 bit in HD mode), 400 Mpoints memory (expandable to 800 Mpoints) and a 13.3 inch capacitive full-HD touchscreen.

With the MXO4, R&S is ushering in a new generation of oscilloscopes that combine top performance with an outstanding price-performance ratio. Customize your MXO4 to your individual requirements, depending on what you need your oscilloscope for: Hardware debugging, serial bus analysis, power analysis, EMC debugging, or power supply integrity - with bandwidths from 200 MHz to 1.5 GHz, the MXO4 is your ideal tool. Expand the already large memory depth of 400 Mpoints to 800 Mpoints if required.

See more signals faster

The MXO4 has an outstanding acquisition rate of over 4.5 million waveforms/s and a trigger rearm time of <21 ns, allowing you to see even the rarest anomalies immediately.

Analyze your signals precisely

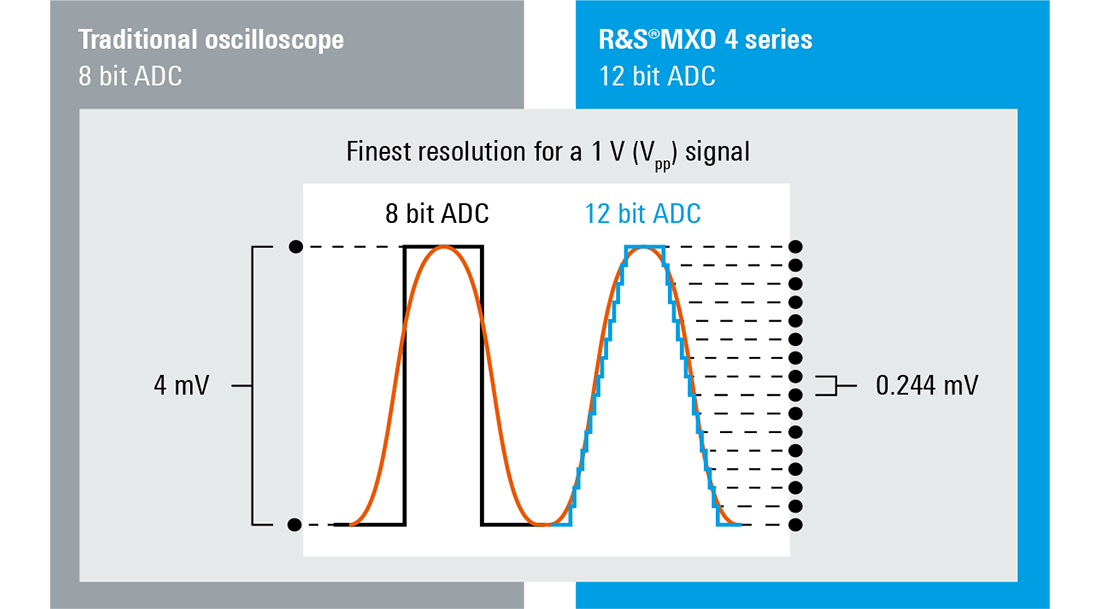

The ADC of the MXO4 has 12 bit vertical resolution, in HD mode you get a resolution of 18 bit. In combination with the minimum noise of 104 µV at 1 GHz with 1 mV/div sensitivity and the ±5 V offset range at 500 µV/div sensitivity, you are able to analyze even the smallest signal details that would otherwise be obscured by noise.

Capture a wider time range

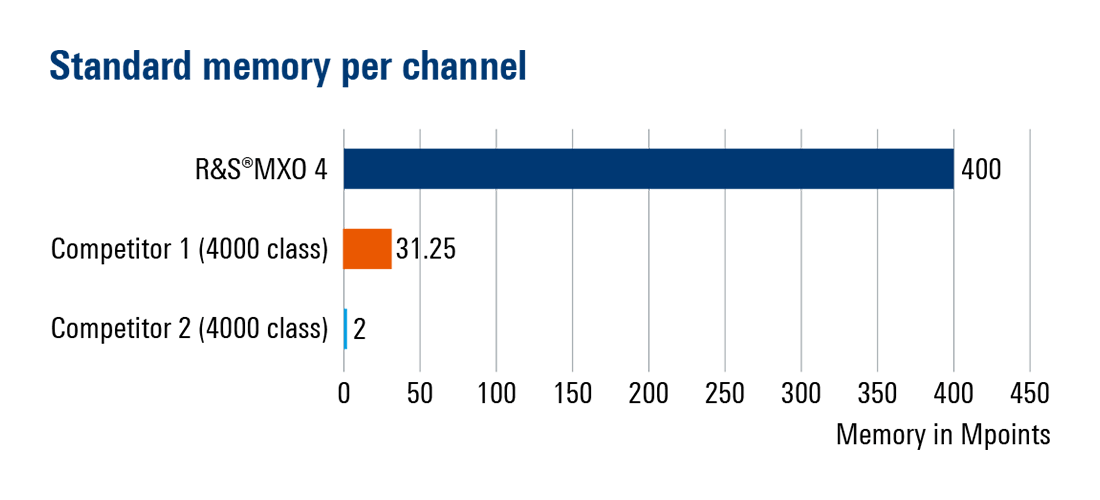

Capture a wider time range than before with the large standard memory depth of 400 Mpoints per channel, which can be optionally extended to 800 Mpoints. The MXO4 has a history and a segmented memory that allows you to record up to 1 million acquisitions.

More precise localization of events

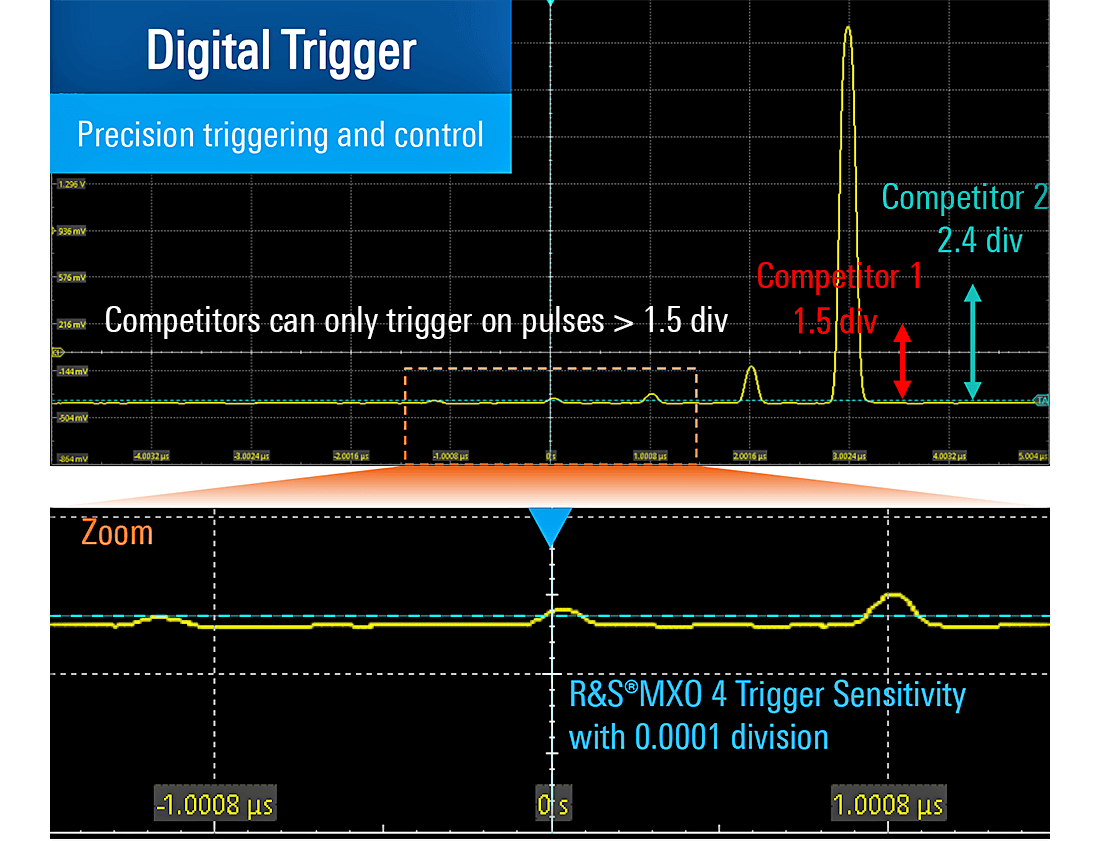

For the first time in this class, the MXO4 offers the digital trigger familiar from the larger oscilloscope series, which enables precise and accurate localization of events with a vertical 1/1000 division with freely selectable hysteresis. A low trigger jitter of just 1 ps and freely adjustable digital filters round off the trigger engine.

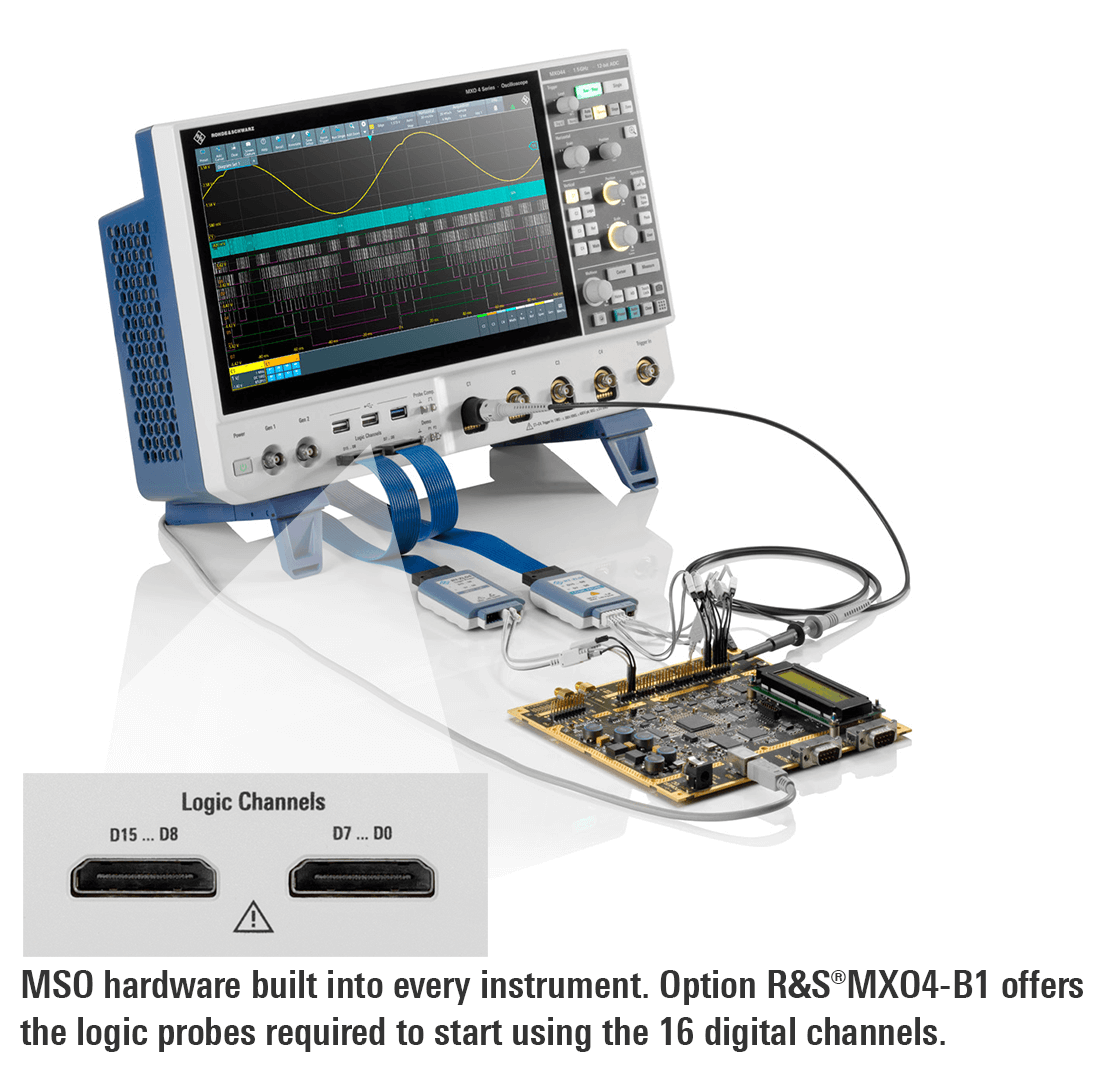

The Rohde & Schwarz MXO4 is available in the basic version with 200 MHz bandwidth, 4 analog channels, 400 Mpoints memory and 4.5 million wfs/s acquisition rate. Expand your bandwidth to 350 MHz, 500 MHz, 1 GHz or 1.5 GHz according to your individual requirements using a license key. The memory depth can optionally be extended to 800 Mpoints. Further options extend the oscilloscope by 16 digital channels (Mixed Signal Option MXO4-B1), an arbitrary waveform generator (AWG MXO4-B6) and extended triggers:

Low Speed Serial Triggering and Decode (I2C/SPI/UART/RS-232/RS-422/RS-485) (MXO4-K510)
Automotive Serial Triggering and Decode (CAN/CAN-FD/CAN-XL/LIN) (MXO4-K520)
Frequency Response Analysis (MXO4-K36)
An application bundle is also available, that contains all the triggers mentioned above (Application Bundle MXO4-PK1).

Product features:

Bandwidth: 200 MHz, 350 MHz, 500 MHz, 1 GHz (4 channels) 1.5 GHz (interleaved on 2 channels)
Channels: 4 analog // 16 digital (standard)
Max. Sample Rate: 5 Gsample/s (Interleaved) 2.5 Gsample/s (All Channels)
Memory Depth: 400 Mpoints (Standard) 800 Mpoints (Option)
Vertical Resolution 12 bit ADC // 18 bit HD Mode
Display: 13.3" capacitive full HD touchscreen display
Operating system: Linux (closed)
Warranty: 3 years

Please note: Special items may show signs of use. Special items have 1 year warranty. Subject to prior sale. The configuration of a special item cannot be changed. The calibration of a special item may no longer be up to date. If you would like an up-to-date calibration, please contact our experts.
