Rohde&Schwarz MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)

Manufacturer number: 1802.3000P43

MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Rohde & Schwarz MXO 54C | Compact oscilloscope MXO5C series, 350 MHz, 4 channels, without display, (1802.3000P43).

Technical Data

Documents & Downloads

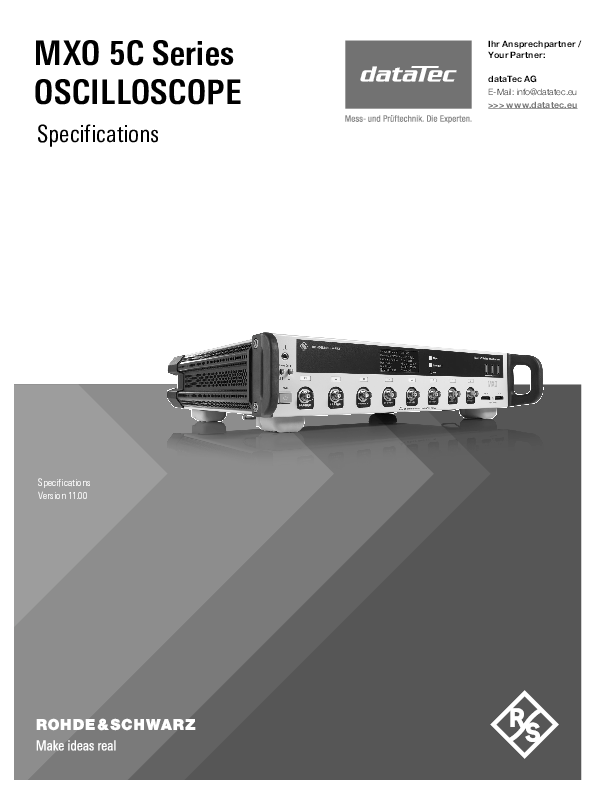

Datasheet
pdf | 1.11 MB

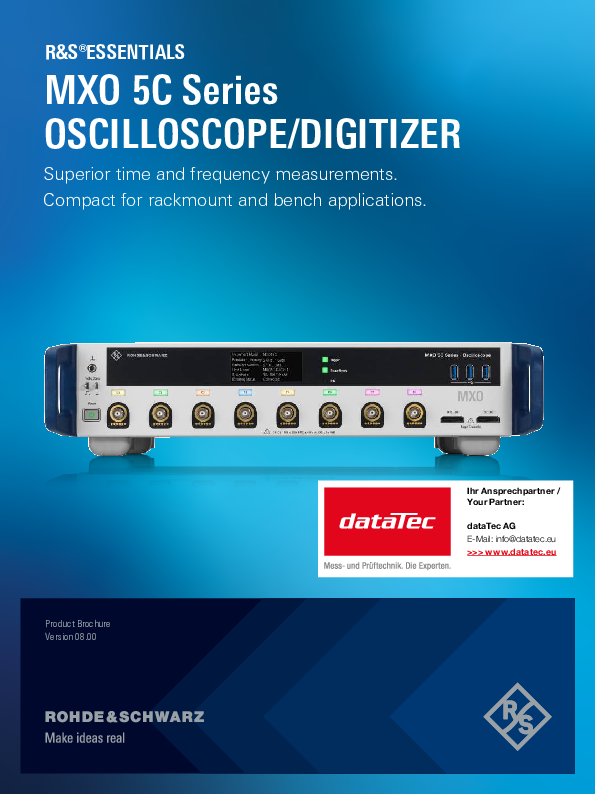

Brochure
pdf | 1.63 MB

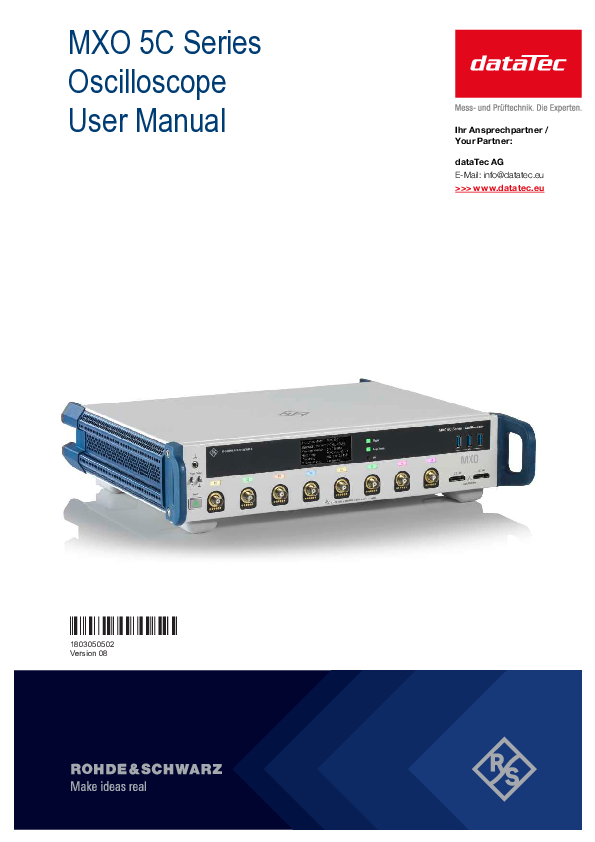

Userguide
pdf | 14.18 MB

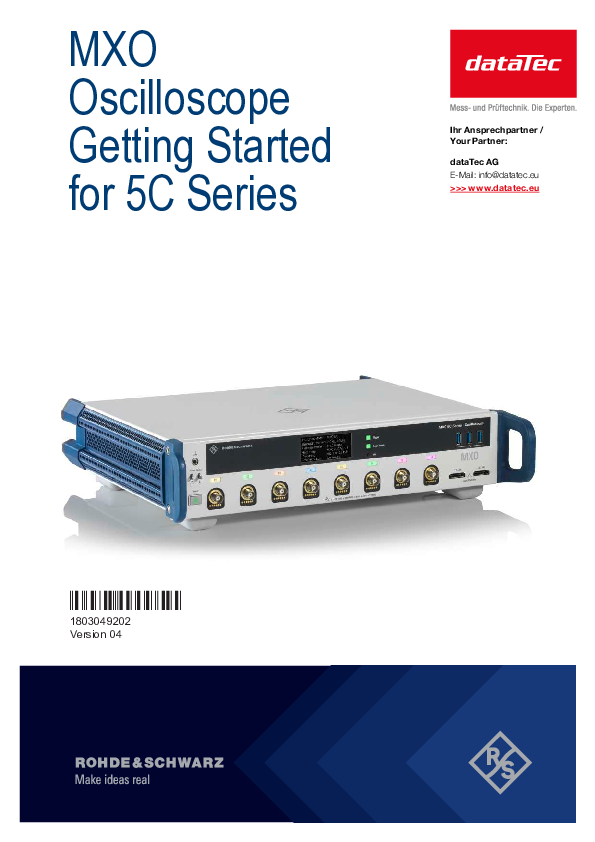

Start guide
pdf | 0.55 MB

Description

MXO5C-43, Oscilloscope, 350 MHz, 4 channels, 5 GSa/s, 12 bit, 500 MPts (1802.3000P42)

The compact Rohde & Schwarz MXO 5 C series oscilloscopes offer industry-leading technology that accelerates your understanding and testing of electronic systems. The MXO 5 C series is technically identical to the successful and proven Rohde & Schwarz MXO5 oscilloscopes. Due to their compact design with only 2 U, the oscilloscopes of the MXO5C series can be easily installed in racks or stacked on top of each other. The MXO5C series includes both 4- and 8-channel models with bandwidths of up to 2 GHz, a maximum sampling rate of up to 5 GSa/s, an acquisition rate of up to 4.5 Mwfm/s and a vertical resolution of 12 bit ADC (18 bit in HD mode).

This allows you to capture all the details of a signal and rare events with exceptional precision. The oscilloscopes offer digital triggering on all channels, enabling precise isolation of even the smallest signal anomalies.

With its 45,000 FFTs per second, the MXO 5 C series is suitable for viewing spectrum signals with unparalleled clarity in EMI and harmonic testing. With up to 99% real-time signal activity capture, the oscilloscopes significantly reduce the blind time between acquisitions, making them ideal for efficient debugging in various applications, from power conversion to automotive analysis.

The Variant MXO5C-43 (Art.-No.: 1802.3000P43) presented here is the 4-channel oscilloscope with 350 MHz bandwidth. Expand your MXO 5C oscilloscope at any time according to your requirements:

  • Subsequent bandwidth upgrade to 500 MHz MXO5C-B405 (Art.No. 1802.3081.03)
  • Subsequent bandwidth upgrade to 1 GHz MXO5C-B410 (Art. No. 1802.3046.03)
  • Subsequent bandwidth upgrade to 2 GHz MXO5C-B420 (Art.No. 1802.3069.03)

Product features:

  • Leading sampling rate with up to 5 GSa/s
  • Leading acquisition rate: 4.5 million acquisitions/second with 18 million waveforms/second
  • Leading signal memory: 500 Mpts/channel already as standard (optionally up to 1 Gpts)
  • Vertical resolution of 12 bit ADC / 18 bit in HD mode
  • 45 000 FFTs per second on up to four simultaneous spectra
  • Intuitive operability on 15.6 inch full HD touch screen and further optimized user interface

Accessoires (10 products)

ZZA-KN2NS
Rohde&Schwarz
ZZA-KN2NS
Rackmount kit for MXO5C series oscilloscopes with 2U (1703.1498.00)
Delivery time upon request
On Request
MXO5C-B1
Rohde&Schwarz
MXO5C-B1
Mixed signal option with 16 digital channels (1802.3023.03)
Delivery time upon request
On Request
MXO5C-B6
Rohde&Schwarz
MXO5C-B6
Arbitrary Waveform Generator, 100 MHz, 2 analog channels (1802.3030.03)
Delivery time upon request
On Request
MXO5C-K31
Rohde&Schwarz
MXO5C-K31
Power Analysis (1802.3130.03)
Delivery time upon request
On Request
MXO5C-K36
Rohde&Schwarz
MXO5C-K36
Frequency Response Analysis (1802.3146.03)
Delivery time upon request
On Request
MXO5C-B110
Rohde&Schwarz
MXO5C-B110
Storage option 1 Gpoints, MXO5C Series Oscilloscopes (1803.1382.03)
Delivery time upon request
On Request
MXO5C-K550
Rohde&Schwarz
MXO5C-K550
MIPI Low Speed Protocols (SPMI), MXO5C Oscilloscopes (1803.1447.03)
Delivery time upon request
On Request
MXO5C-K560
Rohde&Schwarz
MXO5C-K560
Automotive Ethernet protocols (10BASE-T1S, 100BASE-T1), MXO5C oscilloscope (1803.1453.03)
Delivery time upon request
On Request
MXO5C-B19
Rohde&Schwarz
MXO5C-B19
additional M.2 SSD, MXO5C oscilloscopes (1803.1460.02)
Delivery time upon request
On Request
MXO5C-PK1
Rohde&Schwarz
MXO5C-PK1
Application Bundle MXO5C Oscilloscopes including options: B6, K31, K36, K510 and K520 (1803.1682.03)
Delivery time upon request
On Request
