Rohde & Schwarz FSV3004 | Signal and spectrum analyzer, frequency range 10 Hz to 4 GHz, RBW 1 Hz to 10 MHz, analysis bandwidth up to 200 MHz (1330.5000.04).
- Frequency range: 10 Hz to 4 GHz
- Resolution bandwidth (-3 dB): 1 Hz to 10 MHz
- Analysis bandwidth: 28 MHz (standard) to 200 MHz (option)
- SSB phase noise: -107 dBc (1 Hz) at 10 kHz offset (1 GHz)
- TOI (Third-Order Intercept): 18 dBm (typ.) At 1 GHz
- DANL: -151 dBm (typ.) At 1 GHz, -165 dBm (typ.) At 1 GHz with PreAmp (optional)
- Measurement application for analog and digital signal analysis incl. 5G NR
- Maximum input power: 30 dBm
- Marker resolution: 1 Hz

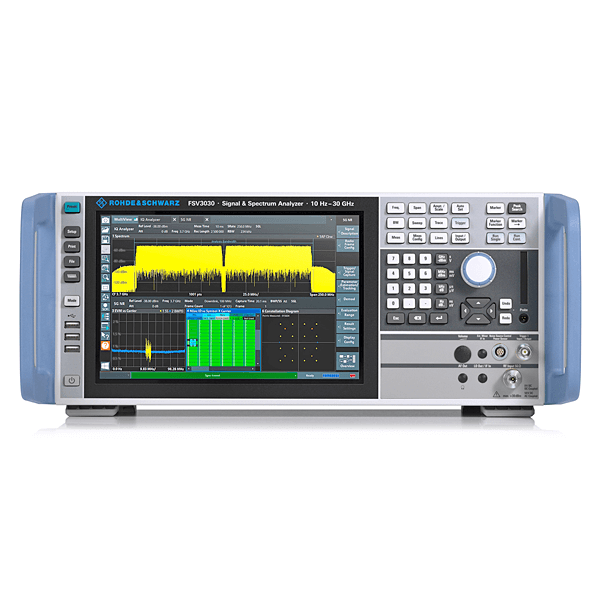

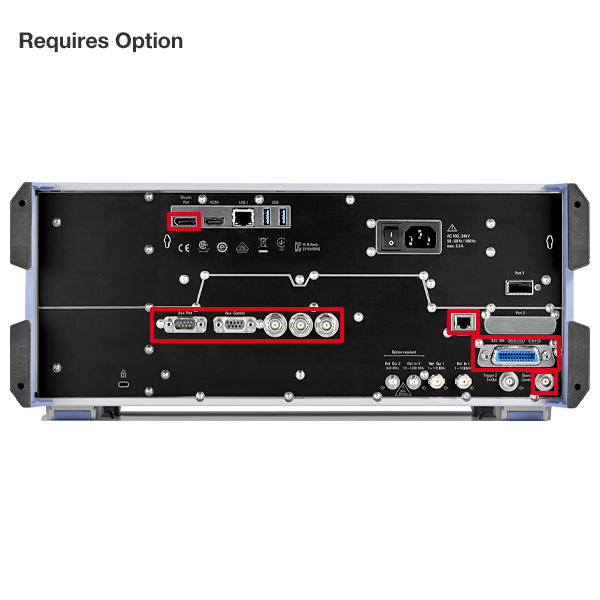

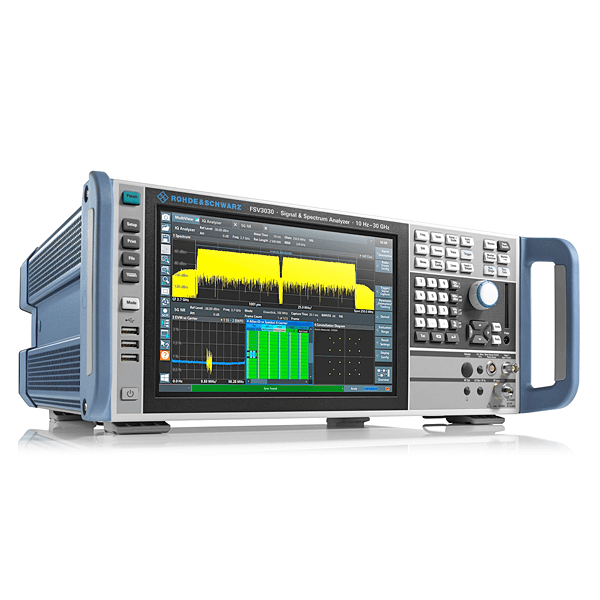

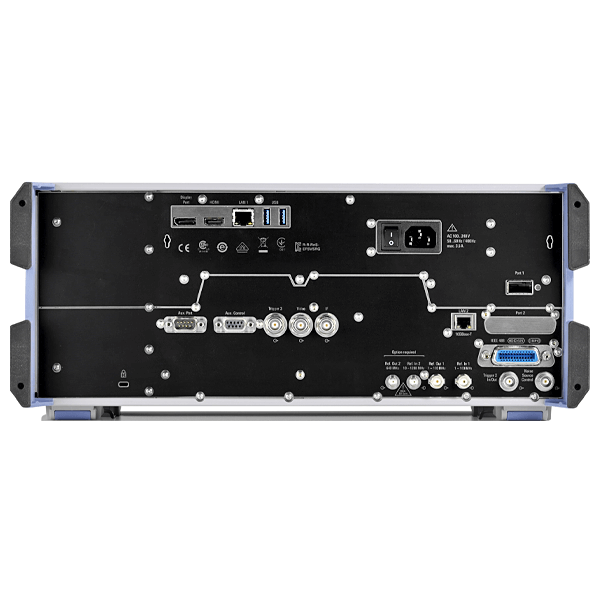

- Interfaces: 5x USB 2.0 type A, 2x USB 3.0 type A, 2x reference input / output, external trigger, LAN 10/100 / 1000BASE-T, DVI for external monitor, optional: GPIB, 10 Gbit / s LAN, USB 3.0 type B, Display port for external monitor
- Power supply: 100 to 240 V AC, 50/60 and 400 Hz
- Dimensions: W 462 × H 197 x D 417 mm
- Weight: 12.2 kg
- Warranty: 3 years
Technical Data
Amplitude range: | -162 dBm to 30 dBm |
---|---|
Analysis bandwidth (MHz): | 200 |
Article number: | 1330.5000.04 |
DANL Displayed Average Noise: | -162 dBm |
Demodulations: | Optional: AM, FM |
Detectors: | max. peak, min. peak, auto peak (normal), sample, RMS, average, with K54 quasi-peak, RMS-average, CISPR-average |
Dimensions (L x W x H) (mm): | 417 x 462 x 197 |
Dynamics: | 192 dB |
Filter bandwidths: | 1 Hz to 10 MHz in 1/2/3/5 sequence, additional 6 and 8 MHz, CISPR 200 Hz, 9 kHz, 120 kHz, 1 MHz optional |
Frequency stability: | 1ppm |
Interfaces: | USB, LAN, Trigger in, Ref out, Ref in, DVI Optional: GPIB, HDMI |
Measurement functions: | FSV3-K10 GSM/EDGE/EDGE Evolution/VAMOS measurements, FSV3-K72 3GPP FDD (WCDMA) BS measurements, FSV3-K73 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+), FSV3-K100 EUTRA/LTE FDD BS measurements, FSV3-K101 EUTRA/LTE FDD UE measurements, FSV3-K102 |
Model: | FSV3004 |
Resolution bandwidth: | 0,01 Hz |
SSB phase noise: | -107 dBc/Hz @ 1 GHz (10 kHz carrier offset) |
Screen size: | 25,6 cm |
Screen type: | 1280 x 800, TFT LCD |
Special features: | extensive measurement applications, 200 MHz analysis bandwidth optional (28 MHz standard), external generator as tracking generator optional |
Sweep: | linear, logarithmic |
Tracking-Generator: | external optional |
Warranty (years): | 3 |
Weight (kg): | 12.2 |
max. Frequency range (GHz): | 4 |
min. Frequency range (kHz): | 0.01 |
Documents & Downloads
Description
FSV3004 | Signal and spectrum analyzer, FSV3000 series, 10 Hz to 4 GHz, RBW 1 Hz to 10 MHz (1330.5000.04)
For demanding and fast signal analysis in the laboratory and in production: With the signal and spectrum analyzer FSV3004, even complex measurement applications can be configured quickly and easily, so that the measurement results are available to you in the shortest possible time. The RF parameters can be adjusted intuitively via a multi-touch display with a graphical user interface; the auto set function supports you in the automatic setting of the most important settings for frequency, level, etc. The SCPI recorder simplifies the test program development, and event-based actions help to debug rare signal appearances of a DUT.
For 5G and other radio standards:
The spectrum analyzer FSV3004 is ideally suited for the analysis of wireless radio standards such as 5G NR, NB-IoT, GSM / EDGE, WLAN 802.11, LTE etc. in research and development, in production, during system tests or during design verification. Thanks to the large analysis bandwidth of 200 MHz (option), two neighboring 5G-NR carriers can be acquired in parallel. Special options for 5G signal analysis achieve EMC values of less than 1% for a 100 MHz wide carrier (at 28 GHz).
High measuring speed for production:
The FSV3004 signal and spectrum analyzer was designed for high-speed applications in automated test systems and is used for fast spectral measurement and signal demodulation in the manufacture of electronic components, modules and devices. In cloud-based test systems, the optional LAN interface with 10 Gbit / s enables fast data transfer of I / Q data to the network side.
Lieferumfang
- Signal and spectrum analyzer FSV3004
- 1x adapter FSV3030, 3.5 mm (female / female)
- 1x adapter FSV3044, 2.92 mm, (female / female)
- Quick start guide
- Power cord
