Rohde&Schwarz RT-ZISO10L | Bundle probe system, 1 GHz, 10m cable, incl. ZISO-Z201 & ZISO-Z301 measuring tip (1804.5000P25)

Manufacturer number: 1804.5000P25

RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
RT-ZISO10L
Delivery time upon request

€32,900.00

plus VAT. €39,151.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Rohde & Schwarz RT-ZISO10L | Bundle probe system, 1 GHz, 10m cable, incl. ZISO-Z201 & ZISO-Z301 measuring tip (1804.5000P25).

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 2.55 MB
Datasheet
pdf | 1.94 MB

Description

RT-ZISO10L | Bundle probe system, 1 GHz, 10m cable, incl. ZISO-Z201 & ZISO-Z301 measuring tip (1804.5000P25)

This probe package includes the R&S RT-ZISO isolated probe system with 10 m cable, 1 GHz bandwidth option and the ZISO-Z201 and ZISO-Z301 measuring tip.

The Z201 MMCX tip offers improved shielding against interference signals and is ideal for measurements on circuit nodes with high voltages. The ZISO-Z201 MMCX tip has a measuring range of ±300 V (peak).

The Z301 insulated browser tip is ideal for fast and flexible measurements at inaccessible test points without dedicated measuring points. The ZISO-Z301 browser tip offers a measuring range of ±300 V.

Accessoires (2 products)

ZISO-B404
Rohde&Schwarz
ZISO-B404
fiber optic cable, 3 m, e.g. for R&S RT-ZISO probe (1804.5017.02)
Delivery time upon request
€1,000.00
ZISO-B410
Rohde&Schwarz
ZISO-B410
fiber optic cable, 10 m, e.g. for R&S RT-ZISO probe (1804.5023.02)
Delivery time upon request
€4,500.00

Alternate products (10 products)

New
Rohde&Schwarz
RT-ZISO
Isolated probe system, basic unit, power dependent on measuring tip, R&S interface & BNC (1804.5000K02)
Delivery time upon request
€8,000.00
RT-ZISO01
New
Rohde&Schwarz
RT-ZISO01
Bundle probe system, 100 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P11)
Delivery time upon request
€10,700.00
RT-ZISO02
New
Rohde&Schwarz
RT-ZISO02
Bundle probe system, 200 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P12)
Delivery time upon request
€12,800.00
RT-ZISO03
New
Rohde&Schwarz
RT-ZISO03
Bundle probe system, 350 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P13)
Delivery time upon request
€15,900.00
RT-ZISO05
New
Rohde&Schwarz
RT-ZISO05
Bundle probe system, 500 MHz, 3 m cable, incl. ZISO-Z301 measuring tip (1804.5000P14)
Delivery time upon request
€19,000.00
RT-ZISO10
New
Rohde&Schwarz
RT-ZISO10
Bundle probe system, 1 GHz, 3m cable, incl. ZISO-Z201&ZISO-Z301 measuring tip (1804.5000P15)
Delivery time upon request
€29,400.00
RT-ZISO01L
New
Rohde&Schwarz
RT-ZISO01L
Bundle probe system, 100 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P21)
Delivery time upon request
€14,200.00
RT-ZISO02L
New
Rohde&Schwarz
RT-ZISO02L
Bundle probe system, 200 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P22)
Delivery time upon request
€16,300.00
RT-ZISO03L
New
Rohde&Schwarz
RT-ZISO03L
Bundle probe system, 350 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P23)
Delivery time upon request
€19,400.00
RT-ZISO05L
New
Rohde&Schwarz
RT-ZISO05L
Bundle probe system, 500 MHz, 10 m cable, incl. ZISO-Z301 measuring tip (1804.5000P24)
Delivery time upon request
€22,500.00

Probes (6 products)

ZISO-Z101
Rohde&Schwarz
ZISO-Z101
MMCX 1.5x 50 Ω, probe tip for RT-ZISO, 8 V (RMS), ±45 V (peak),1 kV (RMS) CAT III (1803.4100.02)
Delivery time upon request
€1,200.00
ZISO-Z201
Rohde&Schwarz
ZISO-Z201
MMCX 10x 10 MΩ, probe tip for RT-ZISO, ±300 V (peak), 1 kV (RMS) CAT III (1803.4200.02)
Delivery time upon request
€1,200.00
ZISO-Z202
Rohde&Schwarz
ZISO-Z202
SQPIN 25x 10 MΩ, probe tip for RT-ZISO, ±750 V (peak), 1 kV (RMS) CAT III (1803.4300.02)
Delivery time upon request
€1,200.00
ZISO-Z203
Rohde&Schwarz
ZISO-Z203
WSQPIN 100x 40 MΩ, probe tip for RT-ZISO, ±3 kV (peak), 1 kV (RMS) CAT III (1803.4400.02)
Delivery time upon request
€1,200.00

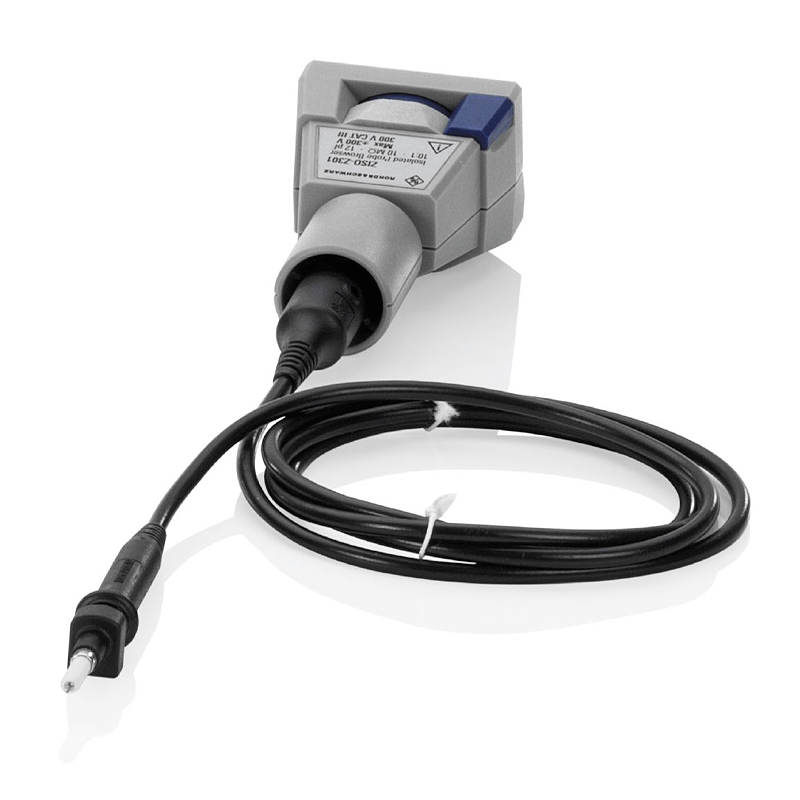

ZISO-Z301
Rohde&Schwarz
ZISO-Z301
Browser 10x 10 MΩ, probe tip for RT-ZISO, ±300 V (peak), 300 V (RMS) CAT III (1803.4500.02)
Delivery time upon request
€1,200.00
ZISO-Z302
Rohde&Schwarz
ZISO-Z302
Browser 100x 100 MΩ,Probe tip for RT-ZISO, ±3 kV (peak), 1 kV (RMS) CAT III (1803.4600.02)
Delivery time upon request
€1,200.00
