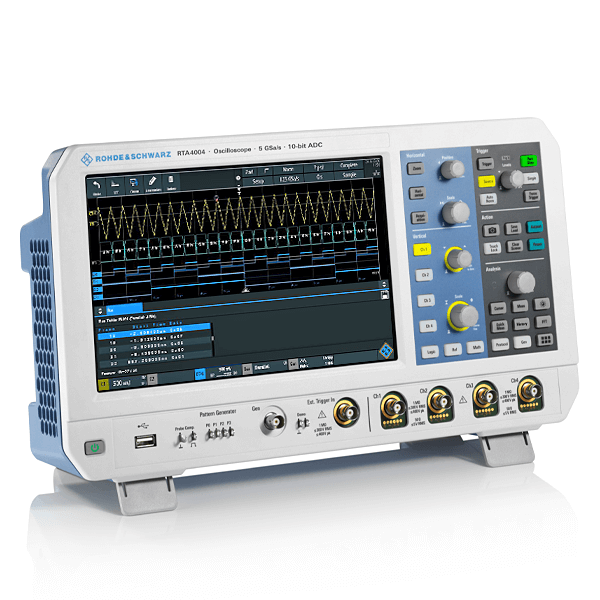

Rohde&Schwarz RTA4K-54M | Oscilloscope, MSO, 4+16-channel, 500 MHz, 10 bit, 100 (200) Mpts, RTA series (1335.7700P55)

Name: RTA4K-54M | Oscilloscope, MSO, 4+16-channel, 500 MHz, 10 bit, 100 (200) Mpts, RTA series (1335.7700P55)
Brand: Rohde&Schwarz
SKU: 1335.7700P55
Price: 19360.0 EUR
Availability: OutOfStock

Manufacturer number: 1335.7700P55

Delivery time upon request

€19,360.00

plus VAT. €23,038.40 VAT plus shipping costs

or choose one of the following options:

Product inquiries % Additional offers for this product

Rohde & Schwarz Value Instruments RTA4000 with option MSO | Mixed-signal oscilloscope 4- / 16-channel with 500 MHz BW option, 5 GSa / s, 100 Mpts memory and 10-bit vertical resolution for sharper measurement curves with more signal details.

4 analog channels
Bandwidth: 500 MHz (expandable up to 1 GHz)
Input impedance: 50Ω / 1 MΩ with Rohde & Schwarz probe interface / BNC interface / read-out
Input sensitivity: 500 µV / div to 10 V / div
10 bit vertical resolution (up to 16 bit with reduced sampling rate)
Sampling rate: 2.5 GSa / s per channel; 5 GSa / s in interleaved mode (2 channels)
Maximum memory depth: 100 MSa (per channel, 1 channel active); 200 MSa interleaved, 1Gsa (standard in "Segmented Memory" mode
16 digital channels (MSO / logic analyzer) up to 5 Gsample / s with 100 MSample memory
Signal acquisition rate: 64,000 curves / s
Various trigger options: edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus
31 standard auto measurement functions such as peak-to-peak voltage, pos. peak, neg. peak, rise time, fall time, mean value, RMS value, time, period, frequency etc.
Math functions
Built-in 3 digit digital voltmeter
Frequency analysis (FFT) and math functions
Standard history and segmented memory mode (1 G sample, 87,000 segments)
Mask test
Optional spectrum analyzer
Optional protocol analyzer / trigger for I²C, SPI, UART / RS-232 / RS-422 / RS-485, CAN, LIN, MIL-STD-1553, ARINC 429
Optional function generator and bit pattern generator
WXGA TFT touch-screen color display: 25.6 cm (10.1 inch) screen diagonal, resolution: 1280 × 800 pixels, the functions can also be called up in parallel using the controls
Adjustable languages GUI: English, German, French, Italian etc.
Interfaces: USB 2.0 host, USB 2.0 device, LAN
Noise level: only 28.3 dB (A)
Connection voltage: 100 V to 240 V AC, 50 - 60 Hz
Housing dimensions: W 390 × H 220 × D 152 mm
Weight: 3.3 kg
3 year guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	1335.7700P55
Bandwidth (MHz):	500
Counter:	No
DVM:	Yes
Dimensions (L x W x H) (mm):	152 x 390 x 220
Function generator:	Optional: ARB / 4-bit-Muster
Interfaces:	USB, LAN
Model:	RTA4K-54M
Number of channels:	4
Number of digital channels:	16
Samplerate:	5 GSa/s
Screen size:	25,6 cm
Screen type:	1280 x 800, Touchscreen
Segmentable memory:	Yes
Signal acquisition rate:	64.000 wfms/s
Special features:	Bandwidth upgrade up to 1GHz
Storage depth:	200 MPts
Triggertypes:	Edge trigger A, Trigger A sensitivity hysteresis mode automatic, Edge trigger A and B, Width, Timeout, Video, Pattern, Runt, Rise time/fall time, Serial Bus, External, Output
Vertical resolution:	10-bit
Warranty (years):	3
Weight (kg):	3.3

Description

RTA4K-54M | Oscilloscope, MSO, 4+16-channel, 500 MHz, 10 bit, 100 (200) Mpts, RTA series (1335.7700P55)

The RTA4000 series oscilloscope from Rohde & Schwarz offers a 10-bit analog-to-digital conversion, 100 MSample memory depth and a touchscreen display. The large touchscreen display with a diagonal of 25.6 cm (10.1 inches) offers a resolution of 1280 x 800 points and is therefore one of the best in this oscilloscope class. Equipped with the touch function and an intuitive operating concept, you can switch between menus as required or set the scaling, zoom or curve shapes can be shifted on the display.

The 10-bit analog-to-digital conversion leads to a fourfold improvement in the signal display compared to an 8-bit oscilloscope. The signals are displayed much sharper and fine signal details can be seen.

100 MSample memory depth is available per channel. If the interleave mode is switched on, there are even 200 MSample, which leads to a double signal observation period. Overall, this is approximately 100 times what conventional oscilloscopes in this price range offer on the market.

This is not the only characteristic of the R&S RTA4000 family of oscilloscopes. Additional functions are integrated / optional such as a logic analyzer, protocol analyzer, a spectrum analyzer, a function generator, a bit pattern generator and a digital voltmeter. In addition, special modes for frequency analysis, mask testing and for data acquisition of long measurement sequences are integrated, which simplifies troubleshooting in electronic systems.

With a sampling rate of up to 5 GS / s and a memory depth of up to 200 MSa, the RTA4000 oscilloscope from Rohde & Schwarz is one of the best on the market. With a signal acquisition rate of 64,000 waveforms / s, signal errors can be found quickly and reliably. The integrated standard tools such as QuickMeas, mask test, FFT (Fast Fourier Transformation), math functions, cursor functions and automatic measurements including statistics enable effective measurements and quickly lead to a result.

This oscilloscope meets the repeated demand for investment security and for an attractive price.

Lieferumfang

Scope of delivery with 1 probe per channel and power cord
