Rohde&Schwarz ZVH8 | Cable and antenna analyzer, handheld 100 kHz - 8 GHz (1309.6800.28)

Manufacturer number: 1309.6800.28

ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
ZVH8
Delivery time upon request

€9,940.00

plus VAT. €11,828.60 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Rohde & Schwarz ZVH8 | Handheld cable and antenna analyzer ZVH, 100 kHz - 8 GHz, 100 dB (typ.) (1309.6800.28).

  • Frequency range: 100 kHz… 8 GHz
  • Standard measurement functions: reflection measurement, cable fault location, one-port cable loss measurement
  • Dynamic range: 100 dB (typ.)
  • Output power: 0 dBm to -40 dBm (nom.)
  • Number of integrated measuring gates: 2
  • Display: 6.5 "color LCD with VGA resolution
  • Dimensions (W x H x D): 194 mm x 300 mm x 69 mm
  • Weight: <3 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 3.71 MB
Datasheet
pdf | 2.35 MB

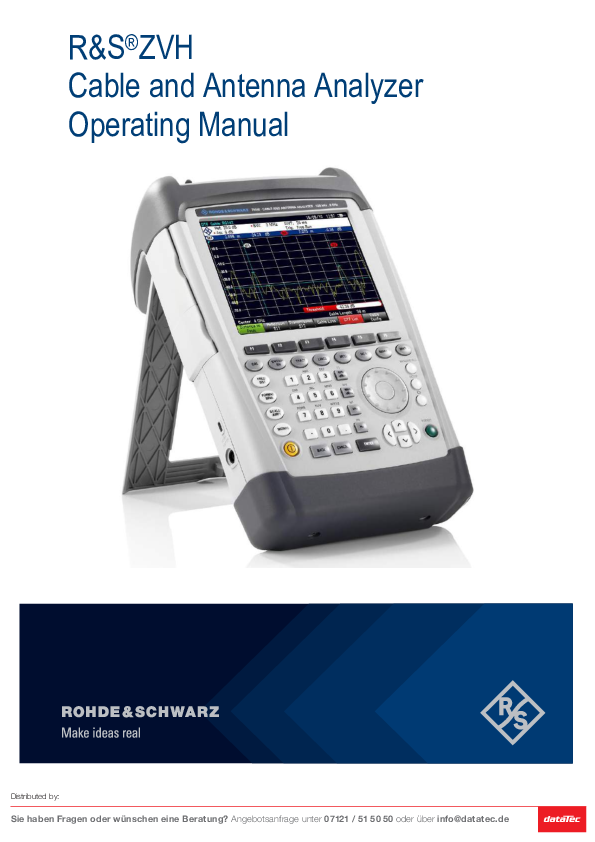

Userguide
pdf | 3.22 MB
Start guide
pdf | 2.67 MB

Description

ZVH8 | Cable and antenna analyzer, handheld 100 kHz - 8 GHz (1309.6800.28)

The Rohde & Schwarz ZVH is a robust, handy cable and antenna analyzer designed for field use. Its low weight, ergonomic design with a practical handle and simple operation make it indispensable for anyone who needs a powerful measuring device for the installation and maintenance of antenna systems in the field.

The preinstalled wizard function of the cable and antenna analyzer enables you to carry out quick and consistent measurements with preconfigured measuring procedures before the field is used. On-site measurements are accelerated and measurement errors are reduced.

The R&S Analyzer ZVH can be controlled remotely using the free R&S InstrumentView app. Configure measurement settings in advance or carry out post analyzes quickly and easily on the PC. Alternatively, you can use your smartphone or tablet with the free MobileView app for remote control.

Additional options allow you to adapt the Rohde & Schwarz ZVH to your individual requirements. For example, expand with the ZVH-K42 option so that a two-port vector network analysis can be carried out. Or do you need a spectrum analysis function? The ZVH-K1 option is the right choice for you.

The R&S ZVH8 is the variant with a frequency range of 100 kHz… 8 GHz. You can also get the ZVH as a variant up to 3.6 GHz (1309.6800.24).

Lieferumfang

  • ZVH8 analyzer
  • Lithium-ion battery pack (4.5 Ah)
  • USB cable
  • LAN cable
  • AC adapter
  • CD-ROM with R&S ZVHView software and documentation
  • Quick start manual
