Rohde&Schwarz NRP18S-20 | 3-path diode measuring head, 10 MHz - 18 GHz, 10 nW - 15 W, N-connector (m), USB sensor cable (1424.6738.02)

Manufacturer number: 1424.6738.02

NRP18S-20
NRP18S-20
NRP18S-20
NRP18S-20
Delivery time upon request

€6,060.00

plus VAT. €7,211.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Rohde & Schwarz 1424.6738.02 | NRP18S-20 3-path diode power sensor, 10 MHz… 18 GHz, 10 nW… 15 W, N connector (m), USB sensor cable.

  • Frequency range: 10 MHz to 18 GHz
  • Power measurement range: 10 nW to 15 W (-50 dBm to +42 dBm)
  • Impedance matching (SWR): 10 MHz to 2.4 GHz: <1.14 || > 2.4 GHz to 8.0 GHz: <1.25 || > 8.0 GHz to 12.4 GHz: <1.30 || > 12.4 GHz to 18.0 GHz: <1.41
  • Rise time video bandwidth: <5 µs> 100 kHz
  • Uncertainty for power measurements at +20 ° C to +25 ° C absolute (in dB): 0.083 to 0.198
  • Uncertainty for power measurements at +20 ° C to +25 ° C relative (in dB): 0.022 to 0.087

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 3.97 MB

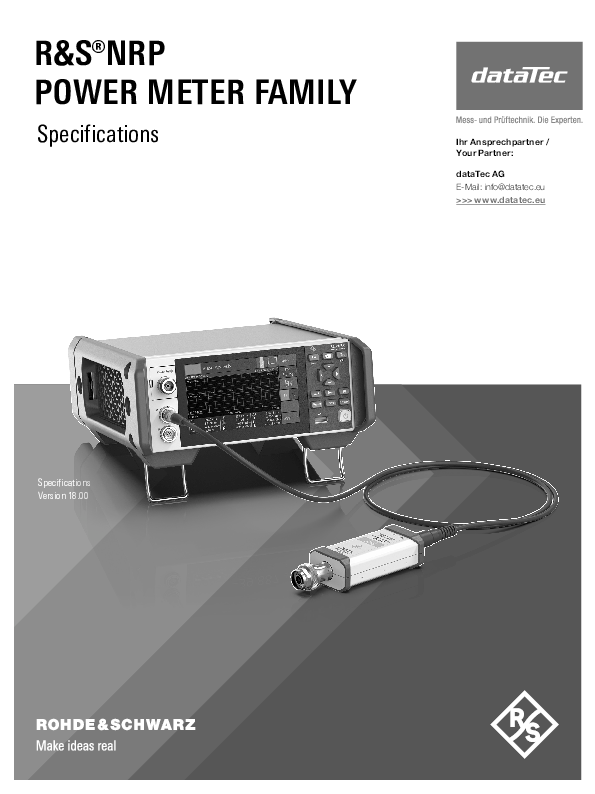

Datasheet
pdf | 2.13 MB

Description

NRP18S-20 | 3-path diode measuring head, 10 MHz - 18 GHz, 10 nW - 15 W, N-connector (m), USB sensor cable (1424.6738.02)

The R&S NRP18S three-path diode probe is a stand-alone, fully characterized device.

They can be operated with the R&S NRP2 // NRX base unit, with a laptop / PC via USB and with many Rohde & Schwarz devices (e.g. signal generators, signal and spectrum analyzers, network analyzers)

Product features:

  • 10,000 triggered measurements / s
  • Over 50,000 readings / s
  • Unparalleled measurement speed and accuracy even at low levels
  • Minimization of the measurement uncertainty
  • Minimum measuring time thanks to intelligent averaging function
  • Ideal for universal applications
  • Detachable cables for flexible operation
  • USBTMC for easy system integration
  • 93 dB dynamic range thanks to the innovative three-path concept
  • Sensor status immediately recognizable thanks to the status LED
  • Integrated trigger input / output

Accessoires (2 products)

NRP-Z5
Rohde&Schwarz
NRP-Z5
Sensor Hub, for up to 4 NRP sensors, with trigger input and output (1146.7740.02)
Delivery time upon request
€1,540.00

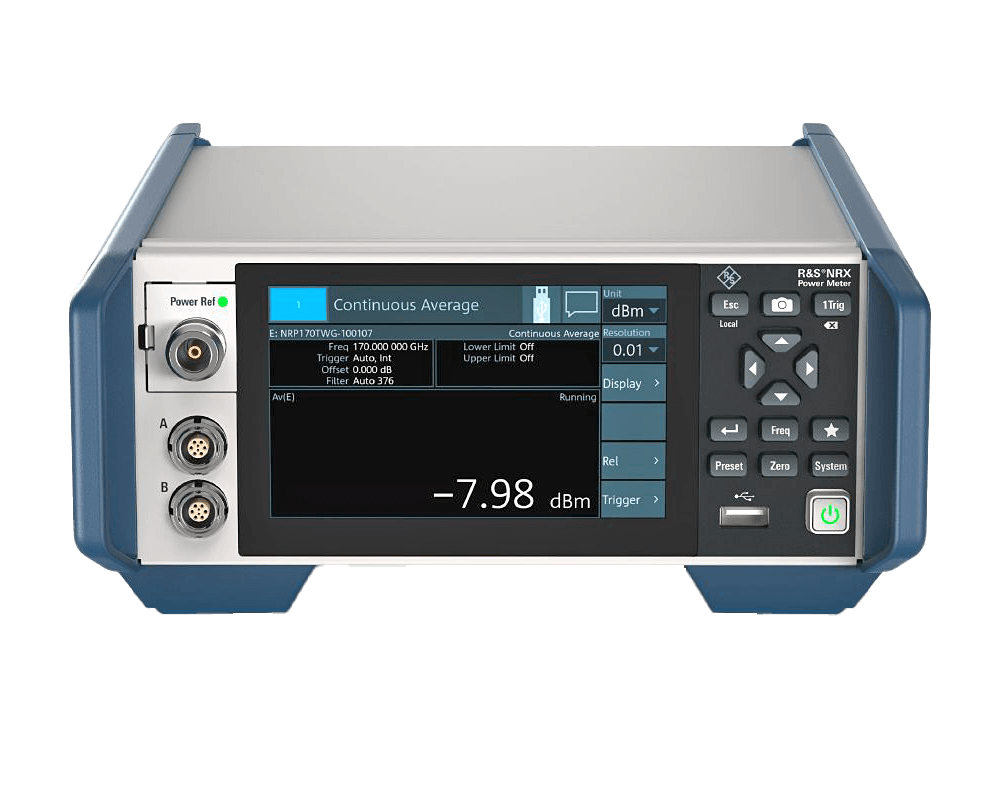

NRX
Rohde&Schwarz
NRX
Basic device for NRP & NRT sensors, USB, LAN, 1 active channel, 2 NRP sensor sockets (1424.7005.02)
Delivery time upon request
On Request

Alternate products (2 products)

NRP18S-10
Rohde&Schwarz
NRP18S-10
3-path diode measuring head, 10 MHz - 18 GHz, 1 nW - 2 W, N-connector (m), USB sensor cable (1424.6721.02)
Delivery time upon request
On Request
NRP18S-25
Rohde&Schwarz
NRP18S-25
3-path diode measuring head, 10 MHz - 18 GHz, 30 nW - 30 W, N-connector (m), USB sensor cable (1424.6744.02)
Delivery time upon request
On Request
