Rohde&Schwarz ESRP3 | EMI / EMC test receiver 9 kHz - 3.6 GHz (1316.4500.03)

Manufacturer number: 1316.4500.03

Rohde&Schwarz ESRP3
Rohde&Schwarz ESRP3
Rohde&Schwarz ESRP3
Rohde&Schwarz ESRP3
Rohde&Schwarz ESRP3
Rohde&Schwarz ESRP3
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Rohde & Schwarz 1316.4500.03 | ESRP3 EMC measuring receiver 9 kHz - 3.6 GHz.

  • Compliance measurements EMI measurements in spectrum analyzer mode
  • Significant increase in measurement speed compared to the conventional method
  • Parallel measurement of the interference signal levels carried out in the entire CISPR band B.
  • Automatic test sequences with preview measurement
  • Data reduction and final measurement
  • IF analysis function to display the spectrum / interference signals
  • Simultaneous display of up to six tracks and four bar graphs
  • Preset antenna factors
  • Practical editor

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

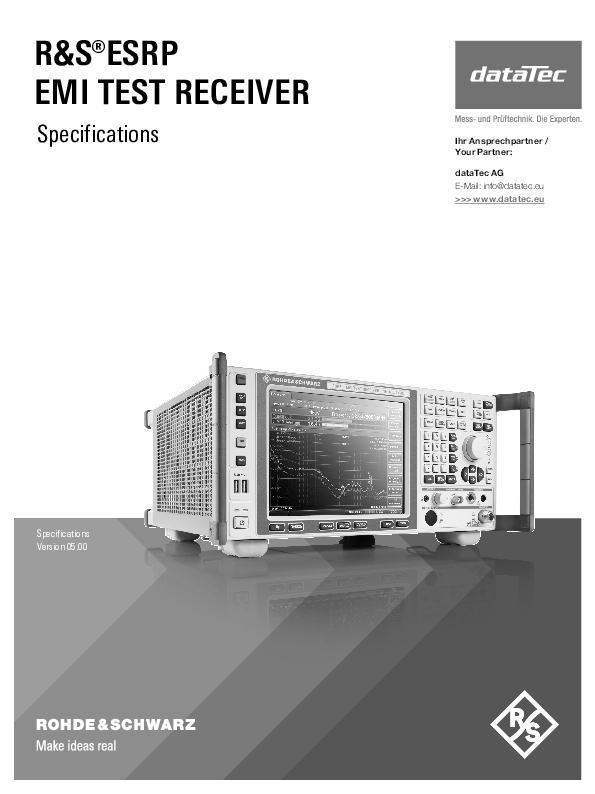

Datasheet
pdf | 0.62 MB
Userguide
pdf | 15.87 MB
Start guide
pdf | 4.96 MB

Description

ESRP3 | EMI / EMC test receiver 9 kHz - 3.6 GHz (1316.4500.03)

The Rohde & Schwarz ESRP EMC test receiver was developed for diagnostic measurements during development and for pre-conformity measurements to prepare products for the final certification test. It measures electromagnetic interference in the frequency range from 10 Hz to 7 GHz using either a conventional step frequency scan or an FFT-based time-domain scan, a method that speeds up measurements considerably. At the same time, the Rohde & Schwarz ESRP is a powerful signal and spectrum analyzer with a full range of functions for laboratory applications. The Rohde & Schwarz ESRP has a clear menu structure which, in combination with the intuitive touchscreen, makes the test receiver very easy to use in any mode.

The ESRP EMV / EMI test receiver from Rohde & Schwarz uses an FFT-based time-domain scan to perform EMC measurements, which is done in a fraction of the time instead of hours as before. This saves time and money in product development and in preparing the product for final certification. An optional pre-selection function prevents overloading of the front end and ensures reproducible results. To make it easier for users to analyze interference signals, the Rohde & Schwarz ESRP has proven functions such as IF analysis to display the spectrum around interference signals or the spectrogram display in analyzer mode. The clear menu structure makes it easier to navigate to a desired function or setting.

The compact and robust ESRP can optionally also be operated with a battery and are therefore also suitable for field use. Operation is via the intuitive touchscreen user interface with undo and recovery functions. The integrated online help supports you with questions or problems. Of course, the R&S ESRP can be controlled remotely via GPIB or LAN.

Product features:

  • EMI test receiver and signal / spectrum analyzer combined in one box
  • Optional pre-selection and preamplifier (R&S ESRP-B2)
  • Resolution bandwidths according to CISPR, optionally in ten steps from 10 Hz to 1 MHz (R&S ESRP-B29)
  • Weight detectors: max. Peak, min. Peak, average, RMS, quasi-peak, average with time constant of the measuring device and RMS according to the current CISPR 16-1-1 version
  • Standard-compliant interference measurements for pulsed interference with repetition frequencies ≥ 10 Hz (with pre-selection / preamplifier option R&S ESRP-B2)
  • Optional very fast FFT-based time domain scan (R&S ESRP-K53)
  • Automatic test routines
  • IF analysis as an option (R&S ESRP-K56)

Accessoires (1 product )

Rohde&Schwarz ESRP-B29
Rohde&Schwarz ESRP-B29
10Hz frequency extension including 6dB bandwidths in decade steps for ESRP3/7; (1316.4880.02)
Delivery time upon request
On Request

Alternate products (1 product )

Rohde&Schwarz ESRP7
Rohde&Schwarz ESRP7
EMI / EMC test receiver 9 kHz - 7 GHz (1316.4500.07)
Reordered - in stock. Delivery time on request
On Request
