Modular Source Measure Unit (SMU) PZ2100 series.
Modern devices, modules and ICs are integrating more and more functions in the smallest possible space, which increases the demands on tests. Keysight's PZ2100 series modular precision source measure unit (SMU) offers high channel density of up to 20 precision SMU channels in just a 1U rack height to accelerate the characterization of integrated circuit designs.
Modular SMU Single-Box Solution.
The PZ2100 series is a single-box solution consisting of a mainframe with 4 slots. It is flexibly configurable and scalable with five SMU modules covering a wide range of applications: from conventional static DC measurements up to 10 fA, to dynamic/pulsed measurements with up to 15 MSa/s and 10 μs width, up to 5-channel modules for up to 20 channels - all in a compact 1U configuration.
The PZ2100 enables a lower cost per channel and a 20x smaller rack footprint than conventional SMUs, significantly reducing your test costs and saving valuable rack space.
The Mainframe and the Modules.

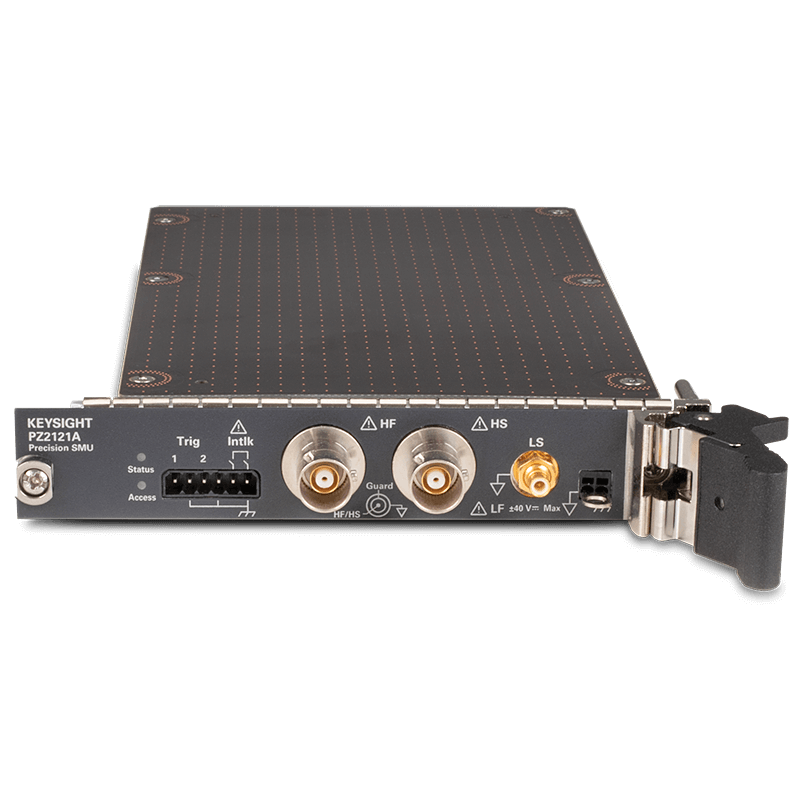

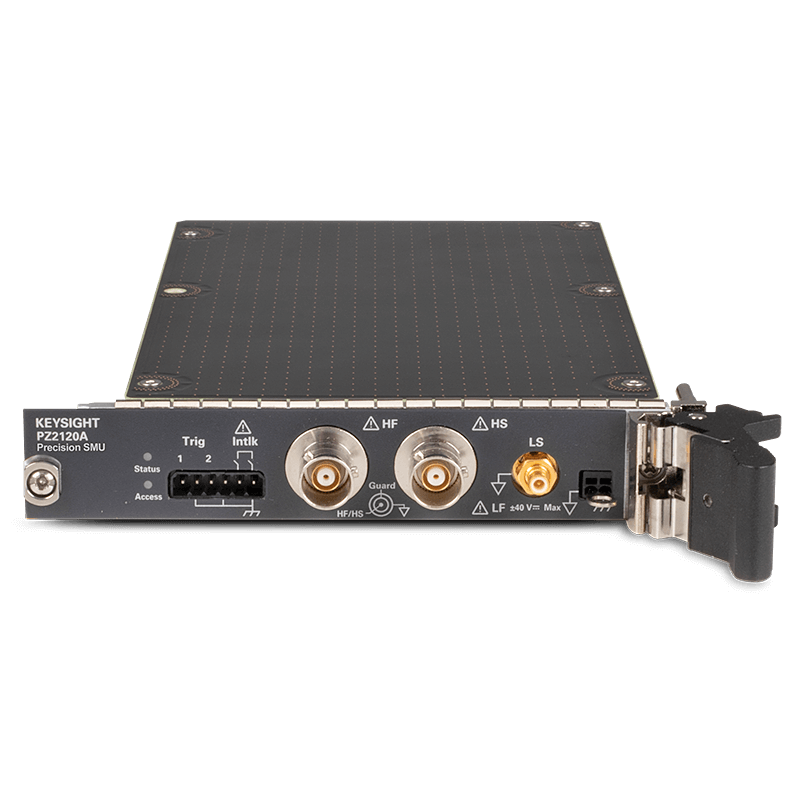

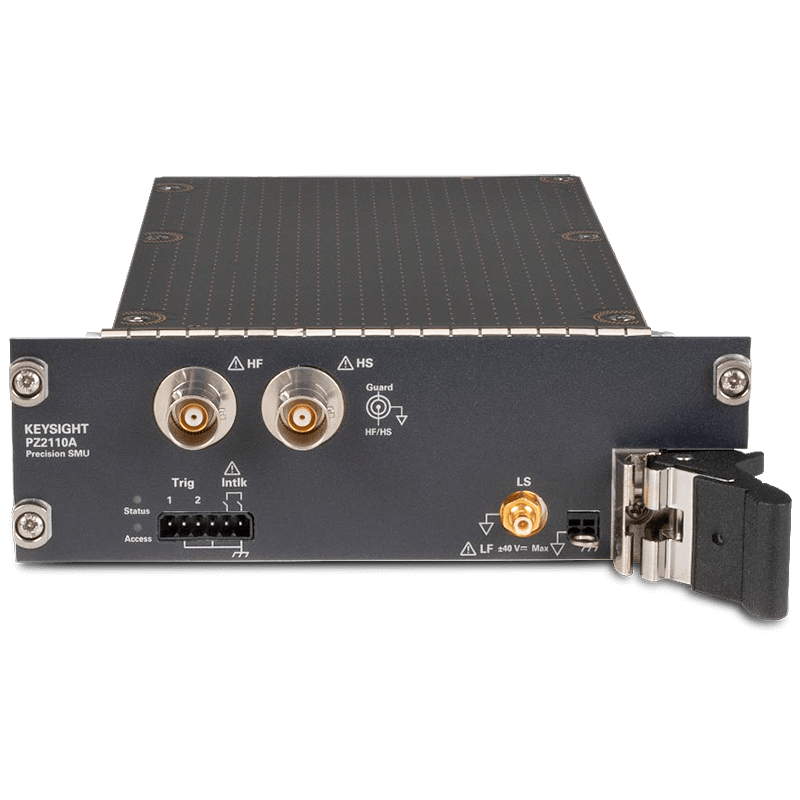

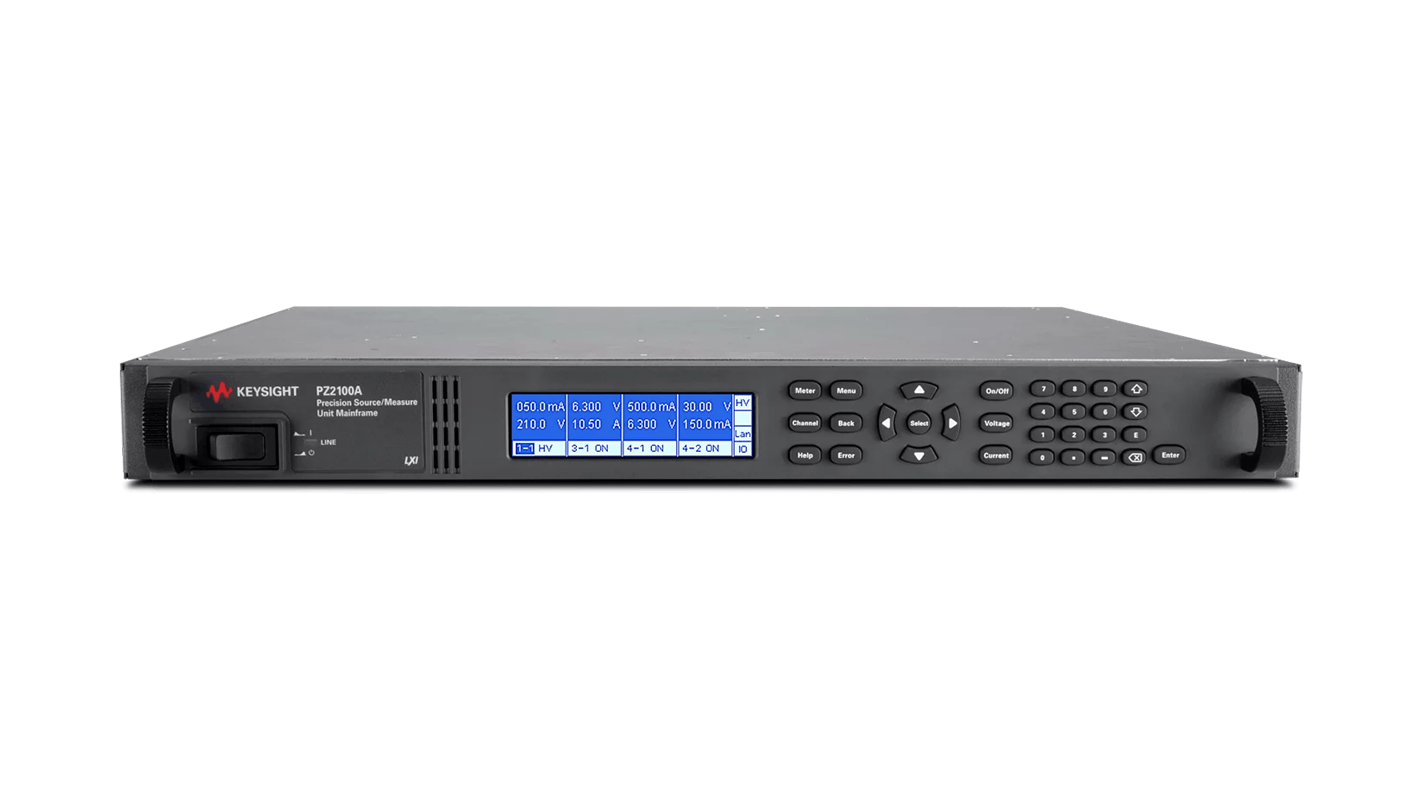

The PZ2100A is a mainframe whose slots support up to four SMU modules. These can be flexibly inserted and exchanged at the rear after removing the blind plate. It allows any mixed module configuration from the available high-speed, high-resolution and high-density PZ21xxA SMU modules for flexible scalability.
The PZ2100A can integrate up to 20 SMU channels in the compact 1U height rack space and, unlike conventional SMUs, requires no cooling spacers when stacked. The PZ2100A's 6 internal trigger lines enable synchronization between channels with an accuracy of less than 50 ns without any cabling. The external trigger connections on the mainframe and modules allow flexible and accurate synchronization with any external device. The GPIB, USB and LAN interfaces allow you to conveniently control the PZ2100A remotely.
Flexible Solution for faster Workflows.
Flexibly configurable and upgradeable.
The modular mainframe PZ2100A allows any mixed module configuration, enabling you to flexibly configure and expand your test system according to your application requirements, from DC to dynamic measurements.
20 channels for 20x higher density.

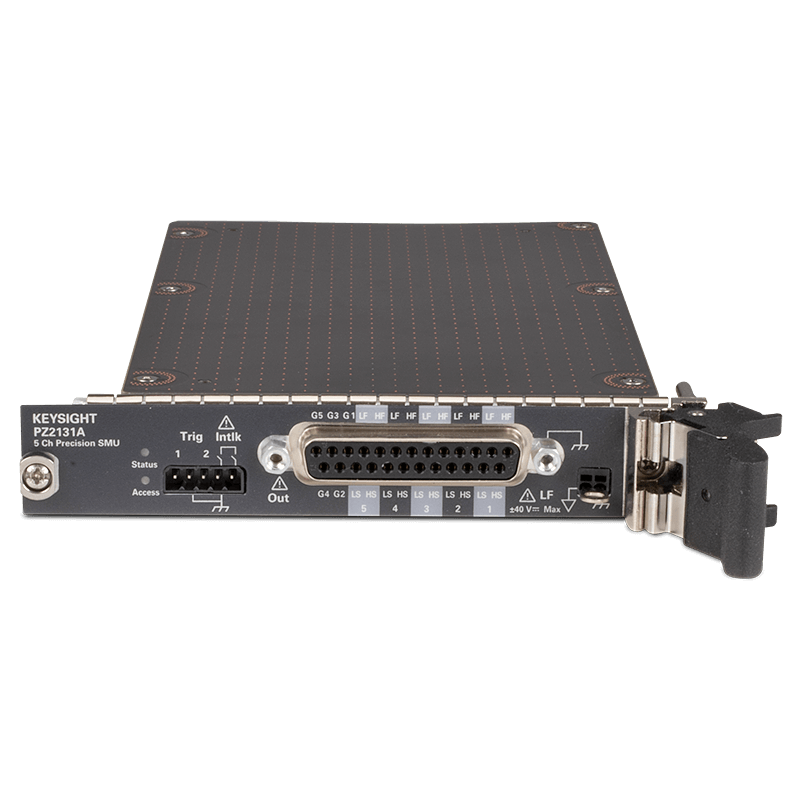

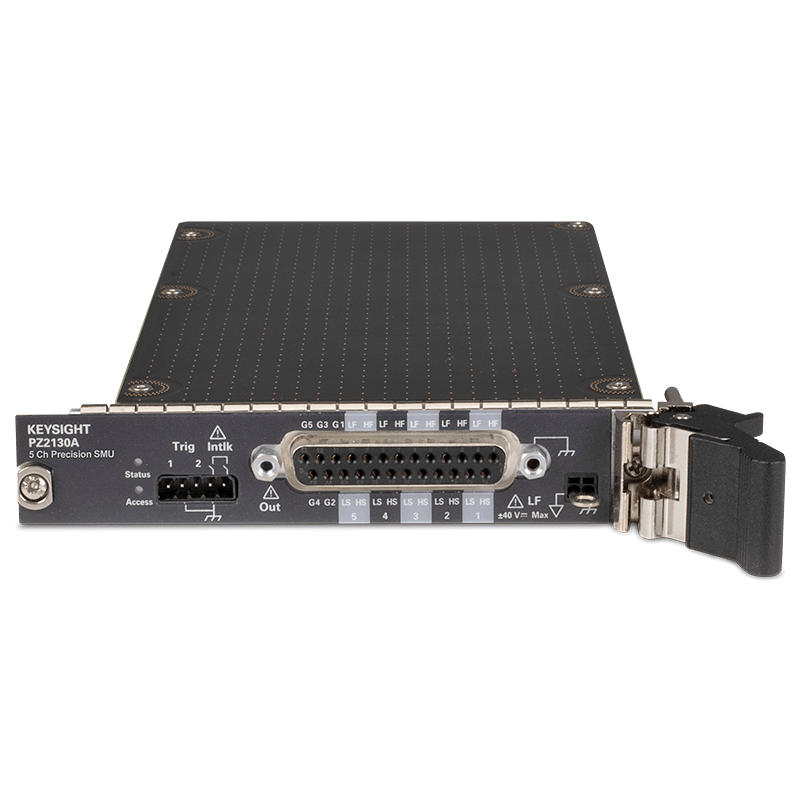

The PZ2100A mainframe can be equipped with four PZ213xA SMU modules and achieves 20 SMU channels with a height of just 1U. In addition, unlike conventional SMUs, no cooling spacers are required when stacking.
The Source Measure Unit therefore requires 20 times less space for the integration of 20 channels than conventional SMUs and enables you to save costs and valuable rack space.
Synchronous IV Measurements with graphical Results.
IV curve software PW9251A.
The PW9251A PathWave is an IV curve measurement and ready-to-use GUI software that performs a variety of synchronous current-voltage (IV) measurements without programming. It offers seamless operation and an intuitive graphical user interface that manages up to 20 channels together.
The setup menu allows you to define and preview the settings for multiple SMU channels before taking a measurement. This allows you to set up the SMU channels flexibly and easily. The integrated graph function supports basic and advanced functions. The test results can be checked immediately after the measurement with various analysis functions in diagrams and tables. Functions such as export for graphs with markers and tables support efficient reporting. In addition, the test result files contain all settings so that you can accurately review and repeat a test.
