PXI Modules

NI (National Instruments) PXI modules interface to bus standards and can be used to acquire data and images, trigger and synchronize measurement devices, generate and route signals, control motion, and perform a variety of measurements.

389 products

NI
781053-01

Multifunction I / O module PXIe-6356 with 1.25 MS / s per channel (8 AI with simultaneous sampling, 24 DIO, 2 AO)

Measurements per second/sampling rate (MS/s): 1.25
Number of bidirectional digital channels: 24
With case: Yes
Number of analogue output channels: 2
Number of counters/timers: 4
Voltage measuring range of the analogue input (V): -5 V bis 5 V, -10 V bis 10 V, -2 V bis 2 V, -1 V bis 1 V
Max. Number of differential analogue input channels: 8
Samplerate: 1.25 MS/s per channel
Max. Update rate (MS/s): 3.3

€7,280.00

Delivery time upon request

NI
783800-01

PXIe-6738, 32 ANALOGUE OUTPUTS, 16 BIT

With case: Yes
Number of counters/timers: 4
Max. Update rate (MS/s): 1
Max. Output current (mA): 10
Number of analogue output channels: 32

€3,450.00

2 in stock. Ready to ship in 1 business day

NI
783129-01

PXIe-4080, performance-optimized digital multimeter with 6 1/2 digits and digitizer up to 300 V.

With case: Yes
Samplerate: 1.8 MS/s
Measurements per second/sampling rate (MS/s): 1.8
min. Measuring range DC (mV): -300
max. Measuring range DC (V): 300
Number of positions: 6.5

€4,450.00

2 in stock. Ready to ship in 1 business day

Bundle

NI
867113-02

PXI LCR / SMU Bundle PXIe-LCR5100, expandable, with PXI Chassis PXIe-1083 & LCR Meter / SMU PXIe-4190, 2 MHz, 40 V

Number of slots: 0

€21,700.00

Delivery time upon request

Chroma
52912

Programmable PXI DC power supply, without A529102 power adapter

€1,800.00

Delivery time upon request

NI
780339-01

Multifunctional RIO module of the R series PXI-7851R, Virtex-5 LX30, 8 AI, 8 AO, 96 DIO, 750 kS / s

With case: Yes
Max. Update rate (MS/s): 1
Number of analogue input channels: 8
Logic level of the digital I/O: 3.3 V, 5 V
Voltage measuring range of the analogue input (V): -10 V bis 10 V
Number of bidirectional digital channels: 96
Measurements per second/sampling rate (MS/s): 0.75
Samplerate: 750 kS/s
Logic level and range: 3.3 V, 5 V
Number of analogue output channels: 8

€10,400.00

Delivery time upon request

Bundle

NI
867012-02

PXI oscilloscope bundle PXIe-SCP5102, expandable, with PXI chassis PXIe-1083 & oscilloscope PXIe-5111, 2 channels, 350 MHz

Number of slots: 0

€13,100.00

Delivery time upon request

NI
785769-11

PXIe-5111 PXI Oscilloscope with CableSense Technology, 350 MHz, 8 bits, 3 GS/s, 2 channels

With case: Yes
Bandwidth (MHz): 350
Voltage measuring range of the analogue input (V): -20 V bis 20 V
Number of analogue input channels: 2
Samplerate: 3 GS/s
Number of channels: 2
Measurements per second/sampling rate (MS/s): 3

€10,100.00

Delivery time upon request

NI
783531-01

NI PXIe-4339, bridge and voltage input module, (channels, 24 bit, 25.6 kS / s

With case: Yes
Max. Number of differential analogue input channels: 8
Measurements per second/sampling rate (MS/s): 0.026
Samplerate: 25.6 kS/s
Voltage measuring range of the analogue input (V): -10 V bis 10 V, -0.1 V bis 0.1 V, -10 mV/V bis 10 mV/V, -200 mV/V bis 200 mV/V, -80 mV/V bis 80 mV/V, -4 V bis 4 V, -20 mV/V bis 20 mV/V, -50 mV/V bis 50 mV/V, -0.5 V bis 0.5 V, -0.2 V bis 0.2 V, -40 mV/V bis 40 mV/V, -1 V bis 1 V

€6,740.00

Delivery time upon request

NI
780993-01

NI PXIe-6545, (200 MHz, 32 digital I / O channels, 1.2, 1.5, 1.8, 2.5, 3.3 V, 1 Mbit per channel)

With case: Yes
Number of bidirectional digital channels: 32
Logic level and range: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
Logic level of the digital I/O: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V

€17,600.00

Delivery time upon request

NI
782622-15

PXIe-5162 PXI Oscilloscope with CableSense Technology, 1.5 GHz, 10 bits, 5 GS/s, 2 channels

With case: Yes
Number of channels: 2
Bandwidth (MHz): 1
Samplerate: 5 GS/s
Measurements per second/sampling rate (MS/s): 5
Voltage measuring range of the analogue input (V): -25 V bis 25 V

€37,000.00

Delivery time upon request

NI
779313-01

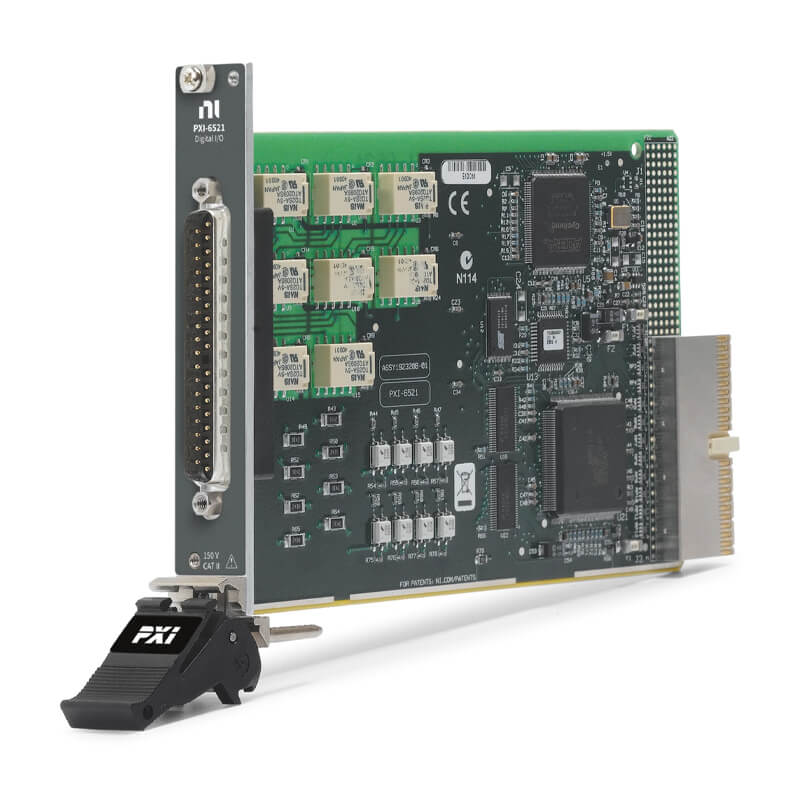

NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ

With case: Yes
Logic level and range: 0.0V - 150.0V, 24 V, -30.0V - 30.0V
Number of digital inputs: 8
Number of digital outputs: 8
Logic level of the digital I/O: 24 V

€1,240.00

2 in stock. Ready to ship in 1 business day

NI
782621-01

PXIe-5160 PXI Oscilloscope, 500 MHz, 10 bits, 2.5 GS/s, 2 channels, 64 MB

With case: Yes
Number of channels: 2
Voltage measuring range of the analogue input (V): -25 V bis 25 V
Measurements per second/sampling rate (MS/s): 2
Samplerate: 2.5 GS/s
Bandwidth (MHz): 500

€17,600.00

Delivery time upon request

NI
783087-02

PXIe-4464, dynamic signal analyzer, 24 bit, mini XLR connector

With case: Yes
Samplerate: 204.8 kS/s
Measurements per second/sampling rate (MS/s): 0.205
Max. Number of differential analogue input channels: 4

€7,610.00

Delivery time upon request

NI
782621-03

PXIe-5160 PXI Oscilloscope, 500 MHz, 10 bits, 2.5 GS/s, 4 Channel, 2 GB

With case: Yes
Voltage measuring range of the analogue input (V): -25 V bis 25 V
Measurements per second/sampling rate (MS/s): 2
Samplerate: 2.5 GS/s
Bandwidth (MHz): 500
Number of channels: 4

€28,500.00

Delivery time upon request

Exclusive

Keysight
Y1731A

PXI adapter module

On Request

Delivery time upon request

NI
780592-02

NI PCIe-8431/16, Serial RS485/RS422 interface card (16 ports)

With case: Yes
Number of serial channels: 16
Communication protocol: Serial

€2,880.00

Delivery time upon request

NI
781057-01

PXIe-6366 multifunction I / O module (8 simultaneous AI, 24 DIO, 2 AO) with 2 MS / s per channel

Number of bidirectional digital channels: 24
With case: Yes
Number of analogue output channels: 2
Number of counters/timers: 4
Max. Number of differential analogue input channels: 8
Max. Update rate (MS/s): 3.3
Samplerate: 2 MS/s per channel
Measurements per second/sampling rate (MS/s): 2
Voltage measuring range of the analogue input (V): -1 V bis 1 V, -5 V bis 5 V, -2 V bis 2 V, -10 V bis 10 V

€9,000.00

Delivery time upon request

NI
783867-01

Voltage input module NI PXIe-4304 with +/- 42 V, 32 channels, 5 kS / s, 24 bit

With case: Yes
Samplerate: 5 kS/s per channel
Voltage measuring range of the analogue input (V): -42 V bis 42 V
Max. Number of differential analogue input channels: 32
Measurements per second/sampling rate (MS/s): 0.005

€4,280.00

Delivery time upon request

NI
780683-02

NI PCI-8512/2, CAN interface card (high speed/flexible data rate, 2 connections)

With case: Yes
CAN physical layer: High-Speed, Flexible Data-Rate
Communication protocol: CAN
Number of CAN connections: 2

€3,600.00

Delivery time upon request

NI
782857-01

NI PXIe-4112, 2-channel power supply, 60 V, 1 A.

With case: Yes
Number of analogue output channels: 2
max. Power (A): 1
Output power (W): 120

€3,980.00

1 in stock. Ready to ship in 1 business day

NI
784277-01

Sound and vibration measurement module PXIe-4480 with 1.25 MS / s

Measurements per second/sampling rate (MS/s): 1.25
With case: Yes
Voltage measuring range of the analogue input (V): -10 V bis 10 V
Max. Number of differential analogue input channels: 6
Samplerate: 1.25 MS/s

€15,400.00

Delivery time upon request

NI
779639-01

NI PXI-6289 (32 analog inputs, 48 digital I / O channels, 4 analog outputs)

With case: Yes
Number of analogue output channels: 4
Number of bidirectional digital channels: 48
Max. Update rate (MS/s): 2.86
Measurements per second/sampling rate (MS/s): 0.625
Max. Number of differential analogue input channels: 16
Samplerate: 625 kS/s
Voltage measuring range of the analogue input (V): -10 V bis 10 V, -2 V bis 2 V, -0.1 V bis 0.1 V, -0.5 V bis 0.5 V, -0.2 V bis 0.2 V, -5 V bis 5 V, -1 V bis 1 V
Number of counters/timers: 2

€5,310.00

Delivery time upon request

NI
786375-11

PXIe-5113 PXI Oscilloscope with CableSense Technology, 500 MHz, 8 bits, 3 GS/s, 2 channels,

With case: Yes
Voltage measuring range of the analogue input (V): -20 V bis 20 V
Samplerate: 3 GS/s
Number of channels: 2
Measurements per second/sampling rate (MS/s): 3
Bandwidth (MHz): 500

€14,700.00

Delivery time upon request
