PMK HORNET4KV | Differential probe, ± 4000 V, >300 MHz

Manufacturer number: HORNET4KV

PMK HORNET4KV
Delivery time upon request

€5,850.00

plus VAT. €6,961.50 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

PMK HORNET4KV | Differential probe, ± 4000 V, >300 MHz.

  • High voltage capability: Differential and common mode voltage of up to ±4000V
  • High bandwidth of 300 MHz: Precise measurements even in fast wide-bandgap circuits
  • Precision and reliability: Consistent measurement results enable engineers to optimize the performance of their electronic systems with confidence

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

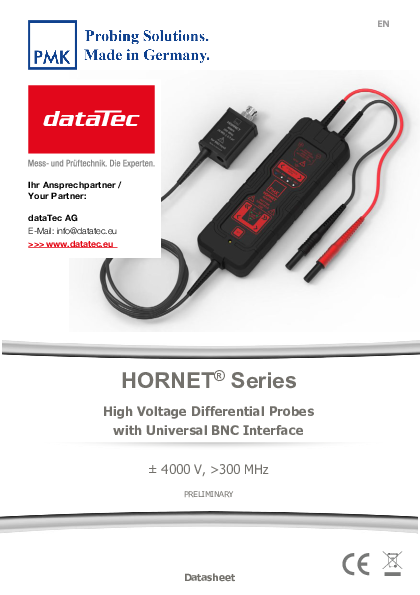

Datasheet
pdf | 0.71 MB

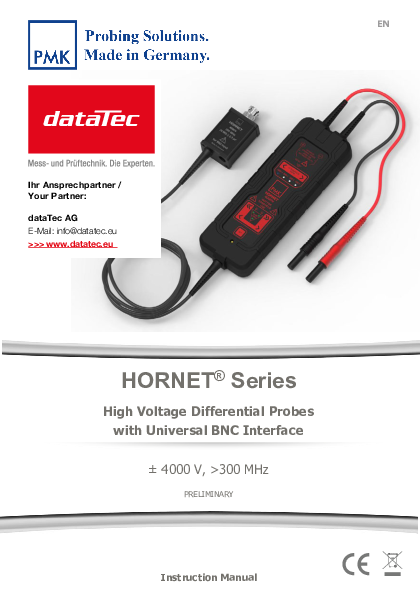

Userguide
pdf | 0.88 MB

Description

HORNET4KV | Differential probe, ± 4000 V, >300 MHz

The PMK HORNET4kV voltage probe is a powerful instrument for precise high voltage measurements in power electronics. With an impressive bandwidth of over 300MHz and an input range of ±4000V, it is particularly well suited for demanding applications such as SiC and IGBT devices. Its high voltage capability enables the measurement of differential and common mode voltages up to ±4000V, making it versatile. In addition, it delivers precise measurement results even with fast switching thanks to its wide bandwidth. Safety features are also integrated to protect users and equipment during high voltage measurements. With a factory calibration to ISO17025, the HORNET4kV offers reliable performance and is an indispensable tool for engineers and technicians who need to make highly precise high voltage measurements.

  • Bandwidth: >300MHz
  • Input range: ±4000V differential and common mode
  • Input impedance: 10 MΩ || < 5 pF
  • Max. differential voltage (DC + AC peak): ±4000V at 1000:1 setting
  • DC accuracy: ±1.5%
  • Rise time (10% - 90%) at 1000:1, 500:1: 1.0 ns; at 200:1, 100:1: 1.1 ns
  • Calibration: factory calibration with ISO17025 calibration certificate
  • Cable length: 2m (power supply not included)
  • Input: 4mm safety banana plug (male)
  • Output: BNC (male)

Accessoires (6 products )

Accessoires (6 products )

PMK 889-09V-PS2
PMK 889-09V-PS2
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB connection
1 in stock. Ready to ship in 1 business day
€825.00
PMK 889-09V-PS2-L
PMK 889-09V-PS2-L
2-channel power supply PS-02 for BumbleBee and Sonic active probe, USB and LAN
Delivery time upon request
€1,210.00
PMK 889-09V-PS3
PMK 889-09V-PS3
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB connection
Delivery time upon request
€1,094.50
PMK 889-09V-PS3-L
PMK 889-09V-PS3-L
4-channel power supply PS-03 for BumbleBee and Sonic active probe, USB and LAN
Delivery time upon request
€1,479.50
PMK 890-520-900
PMK 890-520-900
Power supply cable BumbleBee 0.5m, ISVK-PP
Delivery time upon request
€165.00
PMK 890-520-915
PMK 890-520-915
Power supply cable BumbleBee 1.5m, ISVK-PP-1.5M
Delivery time upon request
€192.50

About the Manufacturer

PMK
PMK
PMK is the specialist in the development and manufacture of probes for broadband measuring instruments. PMK's solutions are continuously improved and adapted to the changing needs and requirements of everyday measurement.
