Pico PQ289 | USB-PC oscilloscope 4424A, 4 channel, 20 MHz, 12 bit, 80 MSa / s, AWG

Manufacturer number: PQ289

Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Pico PQ289
Delivery time upon request

€1,325.00

plus VAT. €1,576.75 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Pico PQ289 | USB oscilloscope 4424A, 4000A series, 4 channel, 20 MHz, BNC, 12 bit vertical resolution, incl. 4 x TA375 probes.

  • USB oscilloscope
  • Number of channels: 4 analog
  • Bandwidth: 20 MHz
  • Vertical resolution: 12 bits
  • Buffer memory: 256 MS
  • Acquisition rate: 80 MSa / s
  • DC accuracy: 1%
  • Input range: ± 10 mV… ± 50 V
  • Waveform buffer: 10,000 segments
  • AWG update rate: 80 MSa / s
  • AWG vertical resolution: 14 bits
  • Interfaces: SuperSpeed USB 3.0 interface, BNC probe connection
  • Dimensions: 190mm x 170mm x 40mm
  • Weight: 550 g
  • Guarantee: 5 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 5.74 MB
Userguide
pdf | 0.74 MB

Description

PQ289 | USB-PC oscilloscope 4424A, 4 channel, 20 MHz, 12 bit, 80 MSa / s, AWG

The USB oscilloscopes of the PicoScope 4000A series include models with 2, 4 or 8 analog channels, offer 20 MHz bandwidth, low noise, 12-bit resolution, a deep acquisition memory and an integrated function and arbitrary waveform generator in a compact, USB 3 connected PC-based housing, along with the proven user interface.

This series of oscilloscopes is particularly suitable for engineers, scientists, and technicians working on a variety of electrical, mechanical, audio, lidar, radar, ultrasonic, NDT, and predictive maintenance systems, and needing precise measurements and analysis of repetitive or perform long-duration waveforms recorded once.

With the PicoScope 4000A Series oscilloscopes, you can easily display audio, ultrasonic, vibration, and power signals, analyze the timing of complex systems, and perform a wide range of precision measurement tasks on multiple inputs simultaneously. The oscilloscopes have a small, compact footprint, but the BNC connections accept all common probes and accessories.

Despite its compact size, there is no compromise on performance. With a high vertical resolution of 12 bits, a bandwidth of 20 MHz, a buffer memory of 256 MS and a fast sample rate of 80 MS / s, the PicoScope 4000A Series has the power and functionality to produce accurate results. With up to 8 channels, these oscilloscopes can analyze multiple serial buses such as UART, I2C, SPI, CAN and LIN as well as control and driver signals.

The variant of the PicoScope 4424A (PQ289) presented here has 4 analog channels. Alternatively, the oscilloscopes of the PicoScope 4000A series are also available with 2 channels 4224A (PQ288) and with 8 channels 4824A (PQ290).

Lieferumfang

  • PicoScope 4424A oscilloscope
  • 4 x TA375 probe
  • USB 3.0 cable
  • Quick start guide
  • Software and reference CD

Accessoires (18 products )

Pico TA050
Pico TA050
Set with 4 attenuators: 3, 6, 10, 20dB, 1 W 1GHz, BNC plug to BNC socket
Delivery time upon request
€65.00
Pico PP877
Pico PP877
Three-axis accelerometer with an oscilloscope interface
Delivery time upon request
€419.00
Pico MI029
Pico MI029
BNC measuring cable on 4mm plug, length 1.2 m
Delivery time upon request
€16.00
Pico TA051
Pico TA051
Terminator, BNC plug-socket feedthrough, 50 Ohm to 1 MOhm, 1W, 1GHz
Delivery time upon request
€18.00
Pico MI030
Pico MI030
Measuring line BNC (m) to BNC (m) 1.1 m
Delivery time upon request
€12.00
Pico TA130
Pico TA130

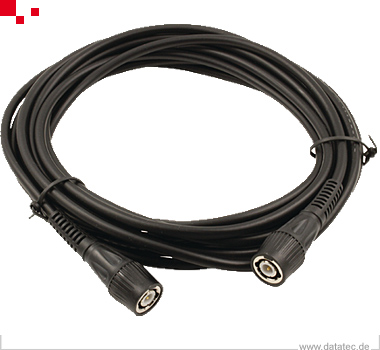

Cable BNC (m) to BNC (m), insulated, 5 m
