Pico PicoScope 2208B | USB oscilloscope, DSO, 2-channel, 100 MHz (PQ014)

Manufacturer number: PQ014

PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
PicoScope 2208B
Delivery time upon request

€689.00

plus VAT. €819.91 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Pico PQ014 | 2-channel USB oscilloscope 2208B with 100 MHz bandwidth and built-in arbitrary generator in pocket format.

  • 2 channels
  • 100 MHz bandwidth
  • 128 MS memory depth
  • Sampling rate: 1 GS / s
  • Vertical resolution: 8 bit
  • Improved vertical resolution 12 bit in PicoScope software
  • Voltage ranges: ± 50mV to ± 20 volts in 9 ranges
  • Vertical resolution: 10mV / div to 4V / div (10 vertical div.)
  • Input impedance: 1 MOhm ± 1% (parallel to 14pF ± 1pF)
  • Advanced digital triggering
  • Built-in function generator: DC to 1 MHz
  • Built-in arbitrary generator: 12 bit / 20 MS / s
  • Built-in FFT spectrum analyzer: DC to oscilloscope bandwidth
  • Segmented memory for up to 48,000 samples

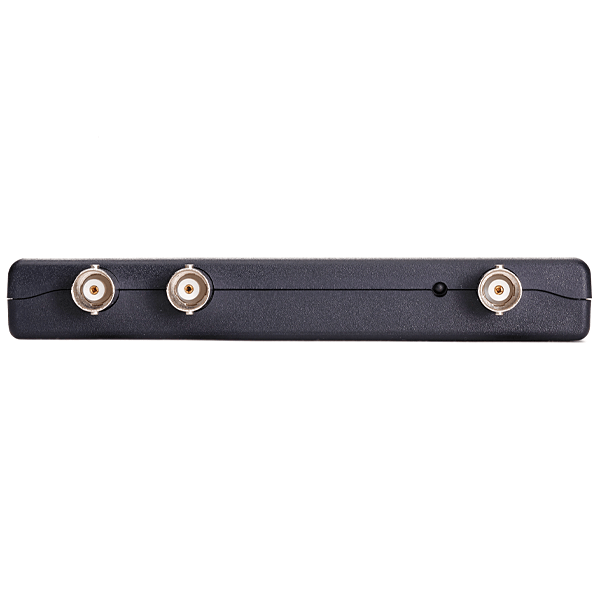

  • Compact ergonomic design with front inputs
  • PC connection USB 2.0 (Compatible with USB 1.1 /3.0)
  • Power supply via USB connection
  • Dimensions: W 130 x H 19 x D 140 mm
  • Weight: <0.2 kg
  • 5 year guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.86 MB

Description

PicoScope 2208B | USB oscilloscope, DSO, 2-channel, 100 MHz (PQ014)

The ultra-compact PicoScope 2000 series oscilloscopes from Pico Technology are just the size of a passport and only 19 mm thick.

These USB-powered PC oscilloscopes and an arbitrary function generator for user-defined waveforms are 80% smaller than the usual PicoScopes. They are perfect for use on the go and fit in any laptop bag, while offering all the functions and performance of traditional table oscilloscopes.

The technical data include a very high sampling rate, an adjustable analog offset across the entire input range and fast USB streaming with up to 1 MS / s for the acquisition of waveforms with up to 100 million samples. The integrated signal source can be used as a standard signal generator (sine, square, triangle and other signals) with programmable sweep mode or as a fully functional arbitrary generator for user-defined waveforms.

Lieferumfang

  • PicoScope PC oscilloscope
  • 2 matching probes x1 / x10
  • USB cable
  • Brief overview
