Pico PP979 | USB-PC differential pulse generator PG914 2-fold output, dual-mode 40/60 ps pulses

Manufacturer number: PP979

Pico PP979
Pico PP979
Pico PP979
Pico PP979
Pico PP979
Pico PP979
Pico PP979
Pico PP979
Delivery time upon request

€11,675.00

plus VAT. €13,893.25 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

PICO PP979 set | PG914 pulse generator with differential 50 Ω outputs, with 40 ps and 60 ps pulse edges - a differential output with slope steepness <60 ps and variable amplitude from 2.5 V to 6 V, a positive and negative output with slope steepness of 40 ps Tunnel diode heads and fixed amplitude of> 200 mV.

The differential output (with step recovery diode / SRD ), slope of <60 ps:

  • 50 Ω output, SMA socket, with memory switching diode (Step Recovery Diode / SRD)
  • Pulse slope: <60 ps, single-ended
  • Two output voltages, variable between 2 V and 6 V
  • Time offset of the outputs to each other in the range of ± 1ns with time increments of 1 ps
  • 20 dB @ 10 GHz attenuator for each SRD pulse output

The positive / negative output (with tunnel diode ), slope of <40 ps :

  • 50 Ω output, N plug, with tunnel diodes for positive and negative output
  • Pulse slope: <40 ps
  • Output voltage: fixed, 200 mV
  • Variable time offset of the outputs to each other in the range of ± 500 ps with time increments of 1 ps

Specifications that apply to both pulse generators:

  • Differential outputs
  • Pulse width: 200 ns to 4 µs
  • Variable internal pulse repetition rate from 1 µs to 1 s
  • RMS jitter: 3 ps (typical) relative to the external trigger
  • Interface: USB2.0, compatible with USB 1.1 and USB 3.0
  • Dimensions: Width: 190 mm x depth: 180 mm x height: 40 mm
  • Weight: 560 g
Areas of application:
  • TDR / TDT network reflection and transmission analysis
  • Frequency response and spectral analysis
  • Determination of time reference, jitter and crosstalk
  • Semiconductor test
  • Pulse and ultra broadband radar applications
  • Test of laser diode drivers and controls

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.56 MB
Userguide
pdf | 1.93 MB
Start guide
pdf | 0.44 MB

Description

PP979 | USB-PC differential pulse generator PG914 2-fold output, dual-mode 40/60 ps pulses

The PP979 / PG914 pulse generator from PICO Technology offers differential pulses with slope steepnesses of <60 ps in 50 Ω. The amplitude of this output can be varied between 2.5 V and 6 V. This allows modules, transmission paths and networks with high bandwidth to be controlled with this one device. It also has a differential output with pulse edges <40 ps and an amplitude of> 200 mV.

With the output signals, which are also available differentially at the output, high-speed or broadband transmissions can be carried out in many different applications such as B. in reflection measurements, semiconductor tests, Gbit connections, interface tests and in radar systems.

Differential high-speed data transmission measurements are becoming increasingly important in the fields of data communication in computing, transmission and telecommunications. Inexpensive pulse generators with steep flanks like the PicoSource® PG900 series are currently not available on the market. PICO Technology has closed this gap with the PG900 series pulse generator.

Lieferumfang

  • 2 pieces TA173, 20 dB attenuator (10 GHz) with connections SMA plug / socket
  • 2 pieces TA172, 12 GHz adapter N socket to SMA plug
  • Positive tunnel diode head with slope <40 ps
  • Negative tunnel diode head with slope <40 ps
  • 2 pieces of 50 Ω cable with SMA plug, length 60 cm
  • Open-end wrench for SMA / PC3.5 / 2.92 connections
  • Power supply 230VAC to 5 V / 2 A (power supply is designed for worldwide use)
  • USB 2.0 cable, 1.8 m
  • Transport case
  • Operating instructions, quick introduction

Accessoires (11 products )

Pico TA237
Pico TA237
14 GHz 25 ps TDR kit TA237
Delivery time upon request
€299.00
Pico TA238
Pico TA238
Power divider set 14 Ghz for 9300 series
Delivery time upon request
€529.00
Pico TA261
Pico TA261
Attenuator, 6 dB, SMA (m) to SMA (f), 50 ohms, 10 GHz
Delivery time upon request
€71.00
Pico TA264
Pico TA264

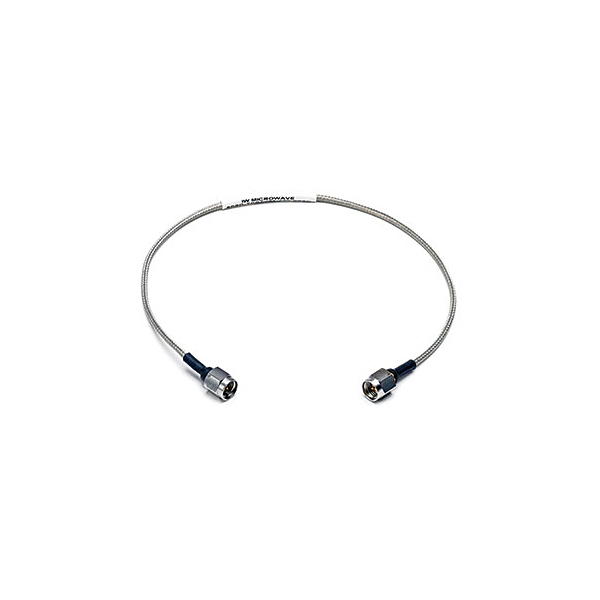

Cable, SMA (m) to SMA (m), DC - 10 GHz length: 30 cm, highly flexible
