Pico PicoScope 2205A | USB oscilloscope, DSO, 2-channel, 25 MHz (PP907)

Name: PicoScope 2205A | USB oscilloscope, DSO, 2-channel, 25 MHz (PP907)
Brand: Pico
SKU: PP907
Price: 229.0 EUR
Availability: InStock

Manufacturer number: PP907

3 in stock. Ready to ship in 1 business day

€229.00

plus VAT. €272.51 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Pico PP907 | 2-channel USB oscilloscope Pico 2205A with 25 MHz bandwidth and built-in arbitrary generator.

2 channels
25 MHz bandwidth
16 kS memory depth
Sampling rate: 200 MS / s
Vertical resolution: 8 bit
Improved vertical resolution 12 bit in PicoScope software
Voltage ranges: ± 50mV to ± 20 volts in 9 ranges
Vertical resolution: 10mV / div to 4V / div (10 vertical div.)
Input impedance: 1 MOhm ± 1% (parallel to 14pF ± 1pF)
Advanced digital triggering
Built-in function generator: DC to 100 kHz
Built-in arbitrary generator: 12 bit / 2 MS / s
Built-in FFT spectrum analyzer: DC to 25 MHz
Segmented memory for up to 48,000 samples
Compact ergonomic design with front inputs
PC connection USB 2.0 (Compatible with USB 1.1 /3.0)
Power supply via USB connection
Dimensions: W 92 x H 19 x D 142 mm
Weight: <0.2 kg
5 year guarantee

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	PP907
Bandwidth (MHz):	25
Counter:	No
DVM:	No
Dimensions (L x W x H) (mm):	92 x 142 x 188
Function generator:	Yes
Interfaces:	USB2.0
Model:	2205A
Number of channels:	2
Samplerate:	200 MSa/s
Segmentable memory:	Yes
Signal acquisition rate:	2.000 wfps
Storage depth:	17 kPts
Triggertypes:	None, auto, repeat, single, Edge, window, pulse width, window pulse width, dropout, window dropout, interval, logic
Vertical resolution:	8-bit
Warranty (years):	5
Weight (kg):	0.2

Documents & Downloads

Datasheet

pdf | 1.86 MB

Description

PicoScope 2205A | USB oscilloscope, DSO, 2-channel, 25 MHz (PP907)

The ultra-compact PicoScope 2200 series oscilloscopes from Pico Technology are just as big as a passport and only 19 mm thick.

These USB-powered PC oscilloscopes and an arbitrary function generator for user-defined waveforms are 80% smaller than the usual PicoScopes. They are perfect for use on the go and fit in any laptop bag, while offering all the functions and performance of traditional table oscilloscopes.

The technical data include a sampling rate of 200 MS / s, an adjustable analog offset across the entire input range and fast USB streaming with up to 1 MS / s for the acquisition of waveforms with up to 100 million samples. The integrated signal source can be used as a standard signal generator (sine, square, triangle and other signals) with programmable sweep mode or as a fully functional arbitrary generator for user-defined waveforms.

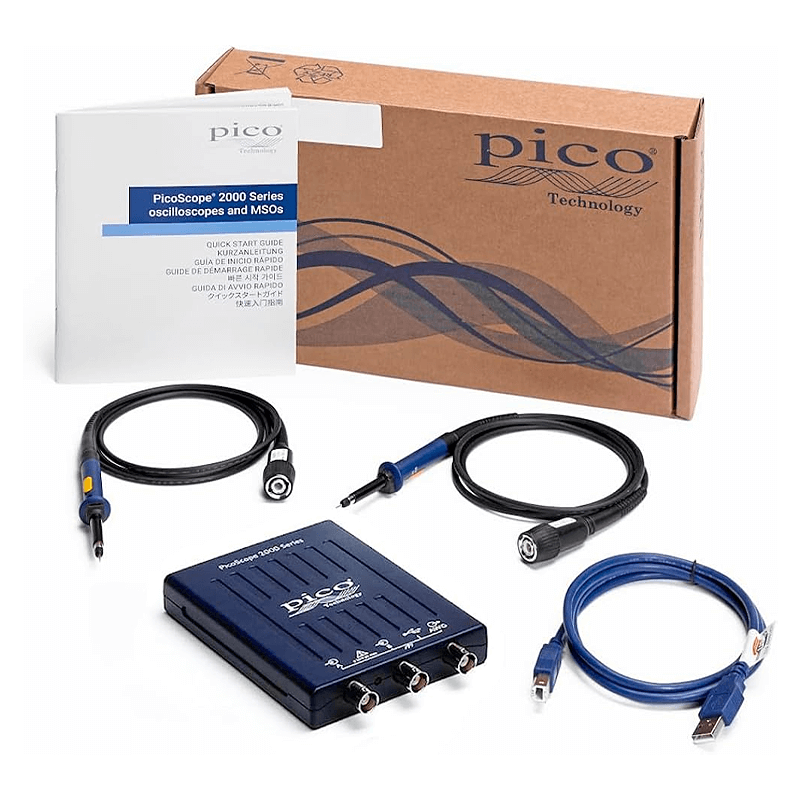

Lieferumfang

PicoScope PC oscilloscope
2 matching probes x1 / x10
USB cable
Brief overview
