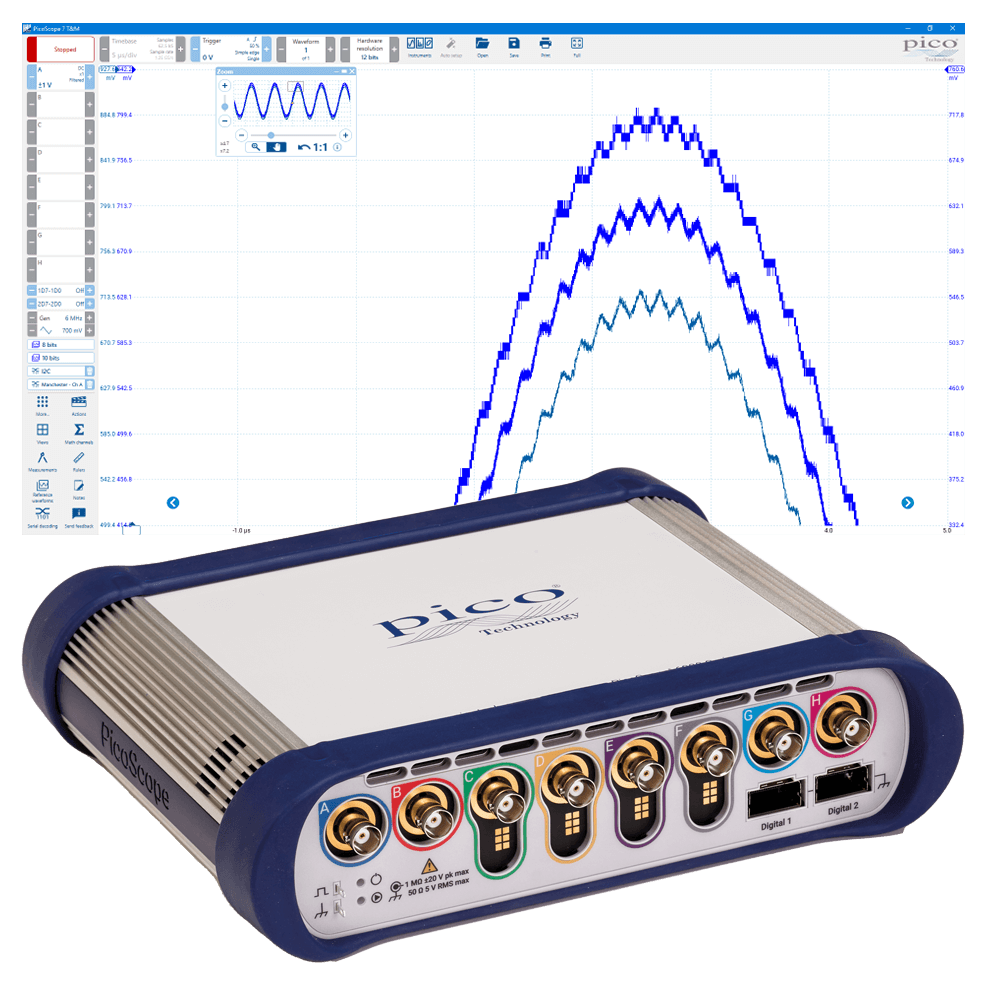

Pico PQ198 | USB oscilloscope 6824E, 6000E series, 8 channel, 500 MHz, 5 GSa / s sampling rate, up to 12 bit FlexRes resolution

Manufacturer number: PQ198

Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Pico PQ198
Delivery time upon request

€13,305.00

plus VAT. €15,832.95 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

PicoScope PQ198 | USB oscilloscope 6824E, 6000E series, 8 channels, 500 MHz, 5 GSa / s sampling rate, up to 12 bit FlexRes resolution.

  • Channels: 8 (optionally expandable with TA369 MSO Pod)
  • Bandwidth: 500 MHz
  • Resolution: up to 12 bit FlexRes
  • Input: BNC
  • Sampling rate: 5 GSa / s
  • PC connection: USB 3.0 (USB 2.0 compatible)
  • Dimensions: 245 mm x 192 mm x 61.5 mm
  • Weight: 2.2 kg
  • Warranty: 5 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 6.30 MB
Userguide
pdf | 1.33 MB

Description

PQ198 | USB oscilloscope 6824E, 6000E series, 8 channel, 500 MHz, 5 GSa / s sampling rate, up to 12 bit FlexRes resolution

The PicoScope 6000E series are the most advanced real-time oscilloscopes in the Pico portfolio - and at an excellent price-performance ratio.

The variant 6824E offers 8 channels, 500 MHz bandwidth, a sampling rate of 5 GSa / s and also has a flexibly adaptable resolution (FlexRes), with which you can change the resolution between 8, 10 and 12 bit. The 6000E series offers you the best conditions to uncover problems with signal integrity such as disturbances, runs, dropouts, noise, distortion and ringing.

The PicoScope 6000E series offers you further variants with 4 or 8 channels, as well as models with a fixed resolution.

The PicoScope oscilloscopes of the 6000E series are ideal for electronics developers who work with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive systems, as well as for researchers and scientists who perform multi-channel high-performance experiments in physics laboratories, particle accelerators and similar facilities work. In conjunction with 3 differential high-voltage probes and 3 current clamps, you get a powerful 3-phase analysis system for power electronics applications.

Lieferumfang

  • PicoScope 6000E Serie
  • 4 x P2056 500 MHz 10:1 passiv Tastkopf
  • User’s Guide
  • 12 V Power Adapter
  • Netzstecker
  • USB Kabel, 1,8 m
  • Transportkoffer
